DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSS 208 NDUAL-IN-LINE SWITCH, BOX-TYPE, R |
987 |
|
Datasheet |
DSS | Tube | Active | SPST | 8 | 100mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SMR 8016-1ROTARY CODED SWITCH, SMT, HEXADE |
395 |
|
Datasheet |
SMR | Box | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
DSS 210 NDUAL-IN-LINE SWITCH, BOX-TYPE, R |
969 |
|
Datasheet |
DSS | Tube | Active | SPST | 10 | 100mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG01ETSWITCH SLIDE DIP SPST 0.025A 24V |
2,221 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BDB10SWITCH SLIDE DIP SPST 0.025A 25V |
2,135 |
|
- |
BDB | Tube | Obsolete | SPST | 10 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BDB12SWITCH SLIDE DIP SPST 0.025A 25V |
1,854 |
|
- |
BDB | Tube | Obsolete | SPST | 12 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SDB05H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
2,042 |
|
- |
SDB | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
1825059-3SWITCH STANDARD DIP SPST |
0 |
|
Datasheet |
ADF | Bulk | Active | SPST | 2 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
KG04ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,415 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

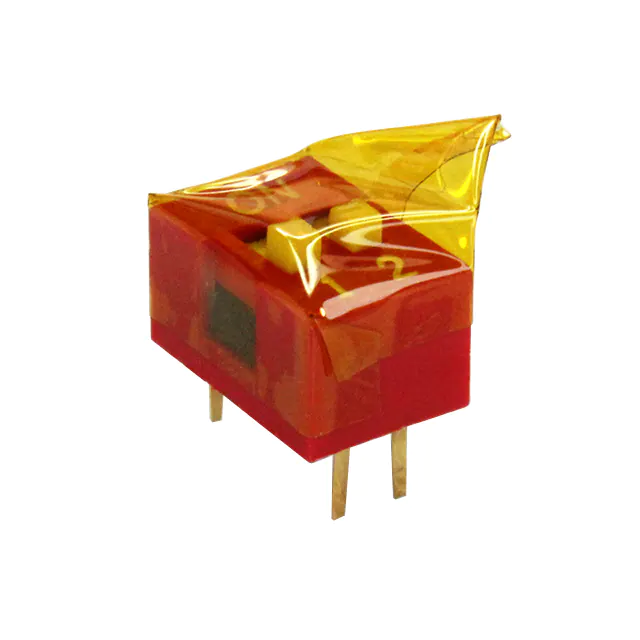

KG02ETSWITCH SLIDE DIP SPST 0.025A 24V |
2,410 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
1-1825002-0SWITCH STANDARD DIP SPST |
0 |
|
Datasheet |
ADF | Bulk | Active | SPST | 6 | - | - | Standard | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
1825190-9SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 10 | - | - | Breakable (Shunt) | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
204-6SRSWITCH SLIDE DIP SPST 0.05A 24V |
1,750 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
3-1825059-1SWITCH STANDARD DIP SPST |
0 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 7 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
SDB10H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
2,087 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6T 4104RSWITCH SLIDE DIP 0.025A 24V |
2,051 |
|
Datasheet |
A6T | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
KR02ETSWITCH SLIDE DIP SPST 0.025A 24V |
320 |
|
Datasheet |
KR | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
4-1571999-4SWITCH PIANO DIP SPST |
0 |
|
Datasheet |
ADPA | Tube | Active | SPST | 4 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
ADPA0404SWITCH PIANO DIP |
1,424 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

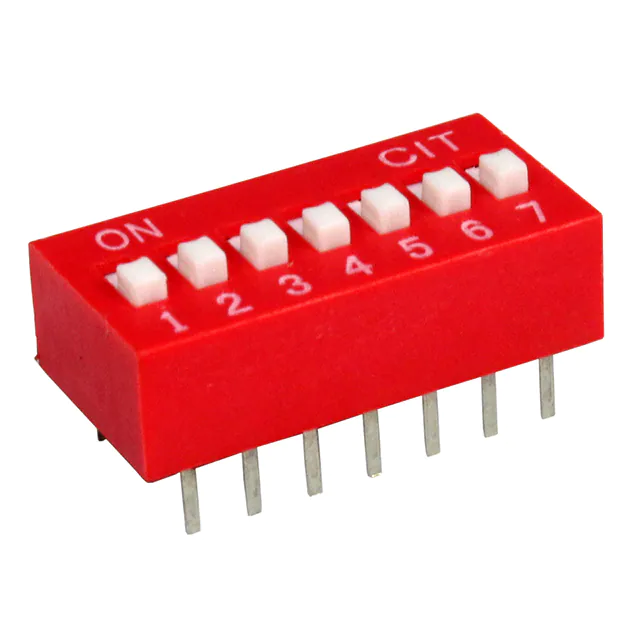

KG07ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,386 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
DIP Switches Electronic Components
Explore DIP Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
