Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7247ABRZIC DAC 12BIT V-OUT 24SOIC |
11 |
|
Datasheet |
DACPORT® | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
LTC1595ACS8#PBFIC DAC 16BIT A-OUT 8SOIC |
169 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 8-SO | Surface Mount | - | - |
|
AD7839ASZIC DAC 13BIT V-OUT 44MQFP |
606 |
|
Datasheet |
- | 44-QFP | Tray | Active | Not Verified | 13 | 8 | 40µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | 5V | ±2 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 44-MQFP (10x10) | Surface Mount | - | - |
|
LTC2666HUH-16#PBFIC DAC 16BIT V-OUT 32QFN |
64 |
|
Datasheet |
SoftSpan™ | 32-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 8 | 20µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 5V | ±2.2, ±0.2 | - | -40°C ~ 125°C | 32-QFN (5x5) | Surface Mount | - | - |
|
LTC1592ACG#PBFIC DAC 16BIT A-OUT 16SSOP |
233 |
|
Datasheet |
SoftSpan™ | 16-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.4, ±0.2 | Multiplying DAC | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
AD5544BRSZIC DAC 16BIT A-OUT 28SSOP |
146 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 4 | 900ns (Typ) | Current - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | 28-SSOP | Surface Mount | - | - |
|
AD5390BSTZ-5IC DAC 14BIT V-OUT 52LQFP |
222 |
|
Datasheet |
- | 52-LQFP | Tray | Active | Not Verified | 14 | 16 | 8µs | Voltage - Buffered | No | I2C, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | - | String DAC | -40°C ~ 85°C | 52-LQFP (10x10) | Surface Mount | - | - |
|
AD5390BCPZ-5IC DAC 14BIT V-OUT 64LFCSP |
57 |
|
Datasheet |
- | 64-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 14 | 16 | 8µs | Voltage - Buffered | No | I2C, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±3 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
DAC3482IZAYRIC DAC 16BIT A-OUT 196NFBGA |
1,300 |
|
Datasheet |
- | 196-LFBGA | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 10ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.14V ~ 3.46V | 1.14V ~ 1.32V | ±4, ±2 | Current Source | -40°C ~ 85°C | 196-NFBGA (12x12) | Surface Mount | - | - |
|

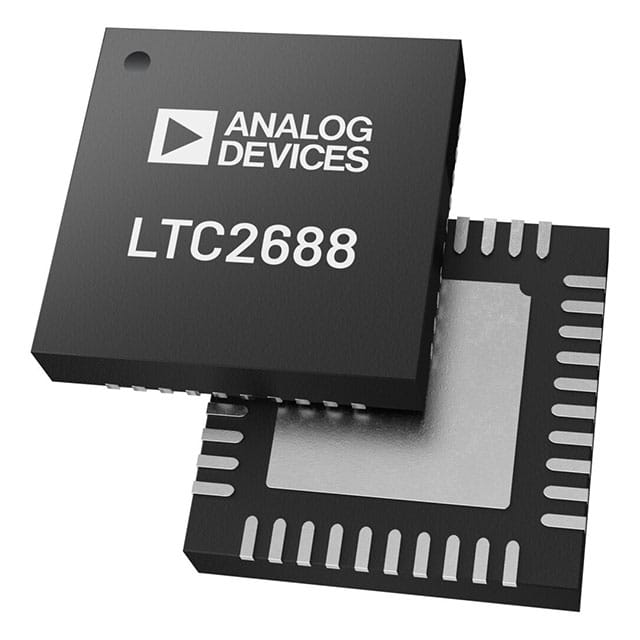

LTC2688CUJ-16#PBFIC DAC 16BIT V-OUT 40QFN |
32 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 16 | 28µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.5V | ±3 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 40-QFN (6x6) | Surface Mount | - | - |
|
LTC1596-1ACSW#PBFIC DAC 16BIT A-OUT 16SOIC |
185 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 16-SO | Surface Mount | - | - |
|
LTC2704CGW-16#PBFIC DAC 16BIT V-OUT 44SSOP |
140 |
|
Datasheet |
SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 4 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | - | 0°C ~ 70°C | 44-SSOP | Surface Mount | - | - |
|
LTC2668CUJ-16#PBFIC DAC 16BIT V-OUT 40QFN |
333 |
|
Datasheet |
SoftSpan™ | 40-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 16 | 20.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±2.2, ±0.2 | - | 0°C ~ 70°C | 40-QFN (6x6) | Surface Mount | - | - |
|
|
AD3552RBCPZ16IC DAC 16BIT V-OUT 32LFCSP |
69 |
|
Datasheet |
- | 32-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 2 | 100ns | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 1.89V | ±2, ±1 | Current Steering | -40°C ~ 105°C | 32-LFCSP (5x5) | Surface Mount | - | - |
|
AD5780BCPZIC DAC 18BIT V-OUT 24LFCSP |
12 |
|
Datasheet |
- | 24-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 18 | 1 | 3.5µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±0.75 (Max) | R-2R | -40°C ~ 125°C | 24-LFCSP-VQ (4x5) | Surface Mount | - | - |
|
LTC1597-1ACG#PBFIC DAC 16BIT A-OUT 28SSOP |
1,813 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
|
LTC1597ACG#PBFIC DAC 16BIT A-OUT 28SSOP |
282 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
AD5764CSUZIC DAC 16BIT V-OUT 32TQFP |
265 |
|
Datasheet |
iCMOS® | 32-TQFP | Tray | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 32-TQFP (7x7) | Surface Mount | - | - |
|
|
AD5360BSTZIC DAC 16BIT V-OUT 52LQFP |
597 |
|
Datasheet |
- | 52-LQFP | Tray | Active | Not Verified | 16 | 16 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 52-LQFP (10x10) | Surface Mount | - | - |
|
|
AD5764SSUZ-EP-RL7IC DAC 16BIT V-OUT 32TQFP |
501 |
|
Datasheet |
iCMOS® | 32-TQFP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±2 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C | 32-TQFP (7x7) | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
