Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD9777BSVZIC DAC 16BIT A-OUT 80TQFP |
159 |
|
Datasheet |
TxDAC+® | 80-TQFP Exposed Pad | Tray | Active | Not Verified | 16 | 2 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3.1V ~ 3.5V | 3.1V ~ 3.5V | ±6, ±3 | Oversampling Interpolating DAC | -40°C ~ 85°C | 80-TQFP-EP (12x12) | Surface Mount | - | - |
|
AD9739BBCZIC DAC 14BIT A-OUT 160CSPBGA |
67 |
|
Datasheet |
- | 160-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | ±1.3, ±0.8 | Quad-Switch | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
AD5373BSTZIC DAC 14BIT V-OUT 64LQFP |
3 |
|
Datasheet |
- | 64-LQFP | Tray | Active | Not Verified | 14 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 64-LQFP (10x10) | Surface Mount | - | - |
|

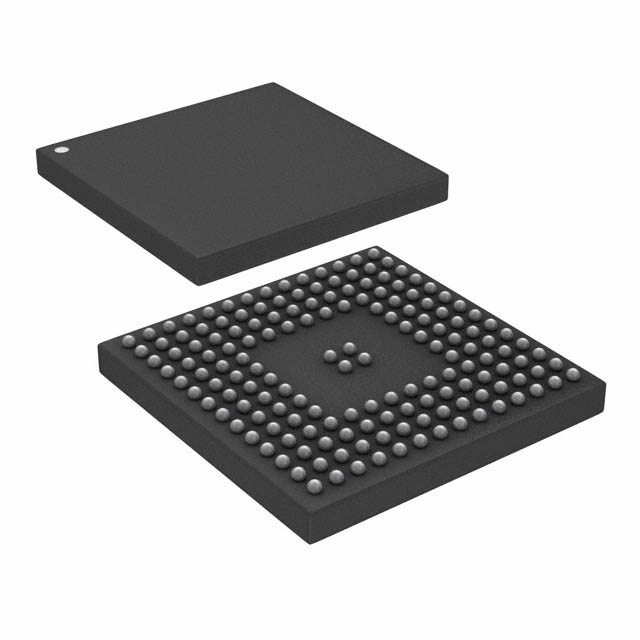

AD9789BBCZIC DAC 14BIT A-OUT 164CSPBGA |
262 |
|
Datasheet |
- | 164-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel, Parallel | External, Internal | 3.14V ~ 3.47V | 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 164-CSPBGA (12x12) | Surface Mount | - | - |
|
DAC7744ECIC DAC 16BIT V-OUT 48SSOP |
112 |
|
Datasheet |
- | 48-BSSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 4 | 11µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | 5V | ±3 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 48-SSOP | Surface Mount | - | - |
|
|
AD5372BSTZIC DAC 16BIT V-OUT 64LQFP |
14 |
|
Datasheet |
- | 64-LQFP | Tray | Active | Not Verified | 16 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 64-LQFP (10x10) | Surface Mount | - | - |
|
DAC8420ESZ-REELIC DAC 12BIT V-OUT 16SOIC |
725 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 4 | 13µs (Typ) | Voltage - Buffered | No | SPI | External | 5V ~ 15V, -15V | 5V | ±0.5, ±0.25 | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
|
DAC8420ESZIC DAC 12BIT V-OUT 16SOIC |
184 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 13µs (Typ) | Voltage - Buffered | No | SPI | External | 5V ~ 15V, -15V | 5V | ±0.5, ±0.25 | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
|
AD9129BBCZIC DAC 14BIT A-OUT 160CSPBGA |
0 |
|
Datasheet |
- | 160-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.4, 1.1 | Quad-Switch | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
AD5370BCPZIC DAC 16BIT V-OUT 64LFCSP |
47 |
|
Datasheet |
- | 64-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
|
AD5370BSTZIC DAC 16BIT V-OUT 64LQFP |
5 |
|
Datasheet |
- | 64-LQFP | Tray | Active | Not Verified | 16 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 64-LQFP (10x10) | Surface Mount | - | - |
|
AD5791BRUZIC DAC 20BIT V-OUT 20TSSOP |
150 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 20 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±1, ±1 | R-2R | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|

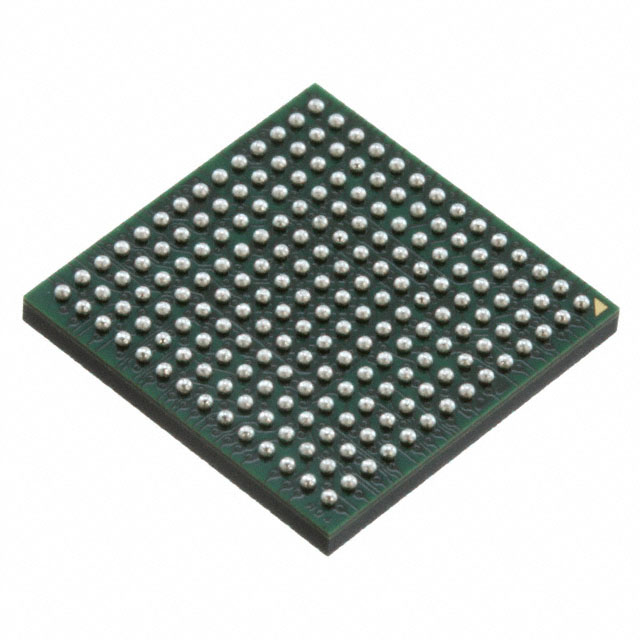

AD9148BBPZIC DAC 16BIT A-OUT 196BGA |
199 |
|
Datasheet |
TxDAC+® | 196-LFBGA Exposed Pad | Tray | Active | Not Verified | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C | 196-BGA-ED (12x12) | Surface Mount | - | - |
|
LTC2000CY-16#PBFIC DAC 16BIT A-OUT 170BGA |
410 |
|
Datasheet |
- | 170-LFBGA | Tray | Active | Not Verified | 16 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±1, ±0.5 | Current Steering | 0°C ~ 70°C | 170-BGA (15x9) | Surface Mount | - | - |
|
AD5790BCPZIC DAC 20BIT V-OUT 24LFCSP |
0 |
|
Datasheet |
- | 24-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 20 | 1 | 3.5µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±1.2, -1/+3 | R-2R | -40°C ~ 125°C | 24-LFCSP-VQ (4x5) | Surface Mount | - | - |
|
AD5380BSTZ-5IC DAC 14BIT V-OUT 100LQFP |
10 |
|
Datasheet |
- | 100-LQFP | Tray | Active | Not Verified | 14 | 40 | 8µs | Voltage - Buffered | No | I2C, Parallel, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±4 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C | 100-LQFP (14x14) | Surface Mount | - | - |
|
|
LTC2000IY-16#PBFIC DAC 16BIT A-OUT 170BGA |
225 |
|
Datasheet |
- | 170-LFBGA | Tray | Active | Not Verified | 16 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±1, ±0.5 | Current Steering | -40°C ~ 85°C | 170-BGA (15x9) | Surface Mount | - | - |
|
|
LTC2000AIY-16#PBFIC DAC 16BIT A-OUT 170BGA |
51 |
|
Datasheet |
- | 170-LFBGA | Tray | Active | Not Verified | 16 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±1, ±0.5 | Current Steering | -40°C ~ 85°C | 170-BGA (15x9) | Surface Mount | - | - |
|
AD664JNZ-UNIIC DAC 12BIT V-OUT 28DIP |
35 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | Not Verified | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 16.5V | 5V | ±0.75, ±0.75 (Max) | R-2R | 0°C ~ 70°C | 28-PDIP | Through Hole | - | - |
|
DAC38J84IAAVIC DAC 16BIT A-OUT 144FCBGA |
125 |
|
Datasheet |
- | 144-FBGA, FCBGA | Tray | Active | Not Verified | 16 | 4 | 10ns (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 3.15V ~ 3.45V | 0.85V ~ 0.95V | ±6, ±4 | Current Source | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
