Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7846JNZIC DAC 16BIT V-OUT 28DIP |
42 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | Not Verified | 16 | 1 | 9µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±16 (Max), ±1 (Max) | String DAC | 0°C ~ 70°C | 28-PDIP | Through Hole | - | - |
|
AD5791ARUZIC DAC 20BIT V-OUT 20TSSOP |
1,051 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 20 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±2, ±1 | R-2R | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
DAC7744EIC DAC 16BIT V-OUT 48SSOP |
75 |
|
Datasheet |
- | 48-BSSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 4 | 11µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | 5V | ±4 (Max), ±3 (Max) | R-2R | -40°C ~ 85°C | 48-SSOP | Surface Mount | - | - |
|
MAX536BCPE+IC DAC 12BIT V-OUT 16DIP |
295 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 16-PDIP | Through Hole | - | - |
|
LTC2000CY-11#PBFIC DAC 11BIT A-OUT 170BGA |
151 |
|
Datasheet |
- | 170-LFBGA | Tray | Active | Not Verified | 11 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±0.2, ±0.1 | Current Steering | 0°C ~ 70°C | 170-BGA (15x9) | Surface Mount | - | - |
|
AD5383BSTZ-5IC DAC 12BIT V-OUT 100LQFP |
35 |
|
Datasheet |
- | 100-LQFP | Tray | Active | Not Verified | 12 | 32 | 8µs | Voltage - Buffered | No | I2C, Parallel, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 100-LQFP (14x14) | Surface Mount | - | - |
|
MAX5891EGK+DIC DAC 16BIT A-OUT 68QFN |
73 |
|
Datasheet |
- | 68-VFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | ±3.8, ±2.8 | Current Steering | -40°C ~ 85°C | 68-QFN (10x10) | Surface Mount | - | - |
|

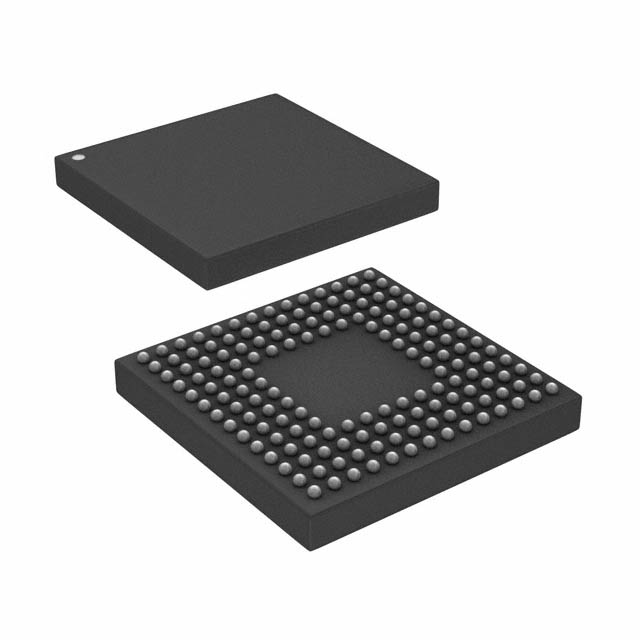

AD9736BBCZIC DAC 14BIT A-OUT 160CSPBGA |
130 |
|
Datasheet |
- | 160-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 1 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±1, ±0.6 | Oversampling Interpolating DAC | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
AD9726BSVZIC DAC 16BIT A-OUT 80TQFP |
108 |
|
Datasheet |
- | 80-TQFP Exposed Pad | Tray | Active | Not Verified | 16 | 1 | 10.5ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 2.37V ~ 2.63V | ±1, ±0.5 | Current Source | -40°C ~ 85°C | 80-TQFP-EP (12x12) | Surface Mount | - | - |
|
LTC1821-1ACGW#PBFIC DAC 16BIT V-OUT 36SSOP |
0 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 36-SSOP | Surface Mount | - | - |
|
DAC8412FPCZ-REELIC DAC 12BIT V-OUT 28PLCC |
556 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Active | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±1 (Max), -1 | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
DAC8413FPCZIC DAC 12BIT V-OUT 28PLCC |
188 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
DAC8412FPCZIC DAC 12BIT V-OUT 28PLCC |
27 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
AD768ARZIC DAC 16BIT A-OUT 28SOIC |
69 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 35ns | Current - Unbuffered | Yes | Parallel | External, Internal | ±5V | - | ±8, ±8 | R-2R | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
|
DAC7744EBIC DAC 16BIT V-OUT 48SSOP |
41 |
|
Datasheet |
- | 48-BSSOP (0.295", 7.50mm Width) | Bulk | Active | Not Verified | 16 | 4 | 11µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | 5V | ±4 (Max), ±2 (Max) | R-2R | -40°C ~ 85°C | 48-SSOP | Surface Mount | - | - |
|
AD9142ABCPZIC DAC 16BIT A-OUT 72LFCSP |
28 |
|
Datasheet |
TxDAC+® | 72-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V | ±3.7, ±2.1 | Oversampling Interpolating DAC | -40°C ~ 85°C | 72-LFCSP-VQ (10x10) | Surface Mount | - | - |
|
AD7841BSZIC DAC 14BIT V-OUT 44MQFP |
8 |
|
Datasheet |
- | 44-QFP | Tray | Active | Not Verified | 14 | 8 | 31µs (Typ) | Voltage - Buffered | No | Parallel | External | ±13.5V ~ 16.5V | 5V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 44-MQFP (10x10) | Surface Mount | - | - |
|
LTC2758AILX#PBFIC DAC 18BIT A-OUT 48LQFP |
342 |
|
Datasheet |
SoftSpan™ | 48-LQFP | Tray | Active | Not Verified | 18 | 2 | 2.1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | Multiplying DAC | -40°C ~ 85°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
AD7568BPZIC DAC 12BIT A-OUT 44PLCC |
15 |
|
Datasheet |
- | 44-LCC (J-Lead) | Tube | Active | Not Verified | 12 | 8 | 550ns (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.5 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 44-PLCC (16.59x16.59) | Surface Mount | - | - |
|
DAC8420FSZIC DAC 12BIT V-OUT 16SOIC |
472 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 13µs (Typ) | Voltage - Buffered | No | SPI | External | 5V ~ 15V, -15V | 5V | ±1, ±0.25 | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
