Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC1595CCS8#PBFIC DAC 16BIT A-OUT 8SOIC |
172 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±4 (Max), ±2 (Max) | R-2R | 0°C ~ 70°C | 8-SO | Surface Mount | - | - |
|
AD5669RBRUZ-2IC DAC 16BIT V-OUT 16TSSOP |
91 |
|
Datasheet |
denseDAC | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 8 | 7µs | Voltage - Buffered | No | I2C | External, Internal | 5V | 5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
LTC2600CGN#TRPBFIC DAC 16BIT V-OUT 16SSOP |
2,232 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 8 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±12, ±1 (Max) | - | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
|
LTC2600CGN#PBFIC DAC 16BIT V-OUT 16SSOP |
488 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 8 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±12, ±1 (Max) | - | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
DAC7715UBIC DAC 12BIT V-OUT 16SOIC |
304 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 10µs | Voltage - Buffered | No | SPI | External | ±14.25V ~ 15.75V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
MAX5253BCAP+IC DAC 12BIT V-OUT 20SSOP |
286 |
|
Datasheet |
- | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 12 | 4 | 16µs (Typ) | Voltage - Buffered | No | SPI | External | 3V ~ 3.6V | 3V ~ 3.6V | ± 1 (Max), 1 (Max) | R-2R | 0°C ~ 70°C | 20-SSOP | Surface Mount | - | - |
|
LTC2662CUH-16#PBFIC DAC 16BIT A-OUT 32QFN |
165 |
|
Datasheet |
SoftSpan™ | 32-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 5 | 8.7ms (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.71V ~ 5.5V | ±12, ±0.2 | Current Source | 0°C ~ 70°C | 32-QFN (5x5) | Surface Mount | - | - |
|
|
LTC2664CUH-16#PBFIC DAC 16BIT V-OUT 32QFN |
601 |
|
Datasheet |
SoftSpan™ | 32-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 4 | 20µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±2.2, ±0.35 | - | 0°C ~ 70°C | 32-QFN (5x5) | Surface Mount | - | - |
|
LTC1650IS#PBFIC DAC 16BIT V-OUT 16SOIC |
141 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 4µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | 5V | ±4, ±0.15 | - | -40°C ~ 85°C | 16-SO | Surface Mount | - | - |
|
MAX532ACWE+IC DAC 12BIT V-OUT 16SOIC |
356 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 2 | 2.5µs (Typ) | Voltage - Buffered | No | SPI | External | ±11.4V ~ 16.5V | - | ±0.5 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 16-SOIC | Surface Mount | - | - |
|
LTC1668IG#PBFIC DAC 16BIT A-OUT 28SSOP |
497 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | ±5V | - | ±8 (Max), ±1 | Current Steering | -40°C ~ 85°C | 28-SSOP | Surface Mount | - | - |
|
MAX5719GSD+IC DAC 20BIT V-OUT 14SOIC |
250 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 20 | 1 | 1.5µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 5V | 5V | ±1, ±1 | R-2R | -40°C ~ 105°C | 14-SOIC | Surface Mount | - | - |
|
AD9746BCPZIC DAC 14BIT A-OUT 72LFCSP |
1 |
|
Datasheet |
- | 72-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 14 | 2 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±1, ±0.5 | Quad-Switch | -40°C ~ 85°C | 72-LFCSP-VQ (10x10) | Surface Mount | - | - |
|
|
LTC2756BCG#PBFIC DAC 18BIT A-OUT 28SSOP |
50 |
|
Datasheet |
SoftSpan™ | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 18 | 1 | 2.1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
AD5755-1ACPZ-REEL7IC DAC 16BIT A-OUT 64LFCSP |
1,035 |
|
Datasheet |
- | 64-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 18µs | Current - Unbuffered | No | SPI, DSP | External, Internal | 9V ~ 33V, -10.8V ~ 26.4V | 2.7V ~ 5.5V | ±0.006, ±11 | R-2R | -40°C ~ 105°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
|
AD5755-1ACPZIC DAC 16BIT A-OUT 64LFCSP |
491 |
|
Datasheet |
- | 64-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 4 | 18µs | Current - Unbuffered | No | SPI, DSP | External, Internal | 9V ~ 33V, -10.8V ~ 26.4V | 2.7V ~ 5.5V | ±0.006, ±11 | R-2R | -40°C ~ 105°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
MAX541ACSA+IC DAC 16BIT V-OUT 8SOIC |
553 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 5V | 5V | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|

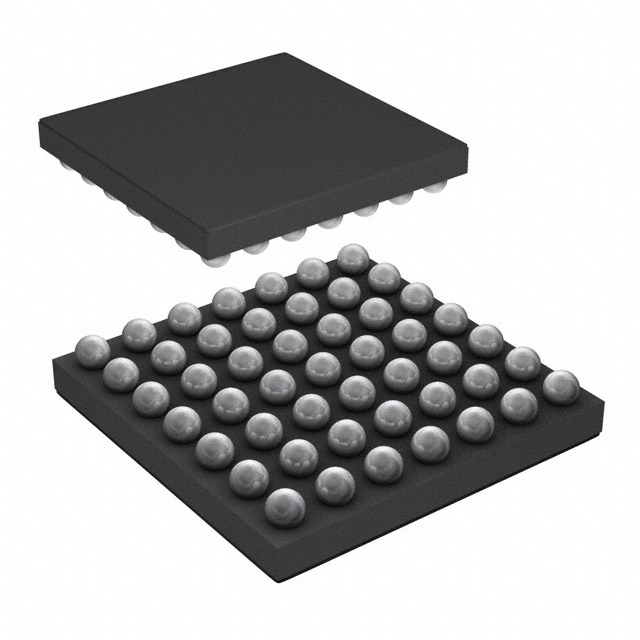

AD5770RBCBZ-RL7IC DAC 14BIT A-OUT 49WLCSP |
2,316 |
|
Datasheet |
AD5770R | 49-WFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | 14 | 6 | 13µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.9V ~ 5.5V | 2.9V ~ 5.5V | ±6.5 (Max), ±1 (Max) | Current Steering | -40°C ~ 105°C | 49-WLCSP (4.04x4.04) | Surface Mount | - | - |
|
DAC9881SRGETIC DAC 18BIT V-OUT 24VQFN |
41 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 18 | 1 | 5µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 3.3V, 5V | 1.7V ~ 5.5V | ±2.5, ±1 | R-2R | -40°C ~ 105°C | 24-VQFN (4x4) | Surface Mount | - | - |
|
AD5064BRUZ-1IC DAC 16BIT V-OUT 14TSSOP |
106 |
|
Datasheet |
nanoDAC® | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 4 | 13µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
