Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60405S6123X240CMC 810UH 40A 3LN 680 OHM TH |
921 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | 680 Ohms @ 100 kHz | 810 µH @ 100 kHz | 40A | - | - | - | -55°C ~ 60°C | - | - | - | - | - |
|

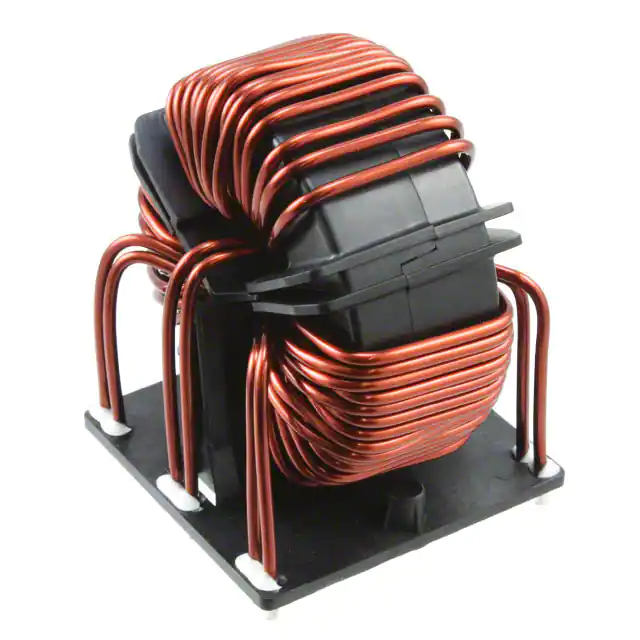

RB8532-36-0M8CMC 830UH 36A 3LN TH |
493 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 830 µH @ 400 Hz | 36A | 2.3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
TCM0605T-200-2P-T201CMC 100MA 2LN 20 OHM SMD |
1,520 |
|
Datasheet |
0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 20 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
TCM0403M-120-2P-T210CMC 50MA 2LN SMD |
47,847 |
|
Datasheet |
0201 (0603 Metric) Variant, 4 Lead | Signal Line | 2 | - | - | 50mA | 1Ohm (Typ) | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
NFG0NCN162HL3DCMC 100MA 3LN 25 OHM SMD |
3,963 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | - | 3 | 25 Ohms @ 100 MHz | - | 100mA | - | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-14CH350UCMC 100MA 2LN 35 OHM SMD |
9,835 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCF080602A250TGCMC 100MA 2LN 25 OHM SMD |
16,829 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 25 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-34CE670UCMC 250MA 2LN 67 OHM SMD |
5,145 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 250mA | 800mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
BWCU00321619161M02CMC 340MA 2LN 160 OHM SMD |
32,700 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00321619102M02CMC 230MA 2LN 1K OHM SMD |
18,205 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00321619900M02CMC 370MA 2LN 90 OHM SMD |
11,782 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
LCF121002A350TGCMC 100MA 2LN 35 OHM SMD |
6,839 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg)
|
DLW21SZ670HQ2LCMC 320MA 2LN 67 OHM SMD |
2,850 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 320mA | 310mOhm | 20V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF2012-261YACMC 300MA 2LN 260 OHM SMD |
8,996 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-670YACMC 400MA 2LN 67OHM SMD AEC-Q200 |
7,283 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-371YACMC 300MA 2LN 370 OHM SMD |
4,408 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 370 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-221YACMC 300MA 2LN 220OHM SMD AECQ200 |
3,993 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF2012-670YACMC 400MA 2LN 67 OHM SMD |
3,286 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-671YACMC 140MA 2LN 670 OHM SMD |
2,012 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 670 Ohms @ 100 MHz | - | 140mA | 600mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-221YACMC 300MA 2LN 220 OHM SMD |
1,915 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
