Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCM1210G-201-2P-T200CMC 50MA 2LN 200 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 50mA | 3Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM1210G-301-2P-T200CMC 50MA 2LN 300 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 50mA | 3.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
TCM1210G-650-2P-T200CMC 100MA 2LN 65 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 850mOhm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM1210G-900-2P-T200CMC 100MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.2Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
SRF2012-201YCMC 330MA 2LN 200 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 200 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012-901YCMC 80MA 2LN 900 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 900 Ohms @ 100 MHz | - | 80mA | 600mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|

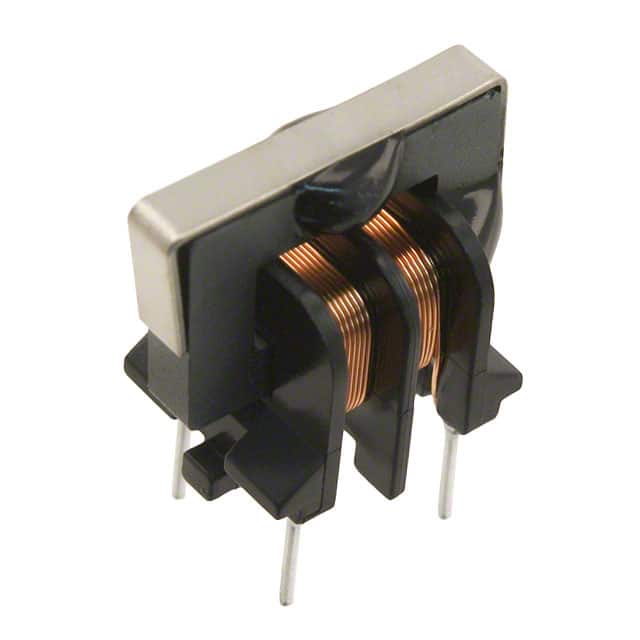

TLF9UA102W0R8K1CMC 1MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 800mA | 500mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA202WR54K1CMC 2MH 540MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 540mA | 1Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA502WR32K1CMC 5MH 320MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 320mA | 2.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA802WR25K1CMC 250MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 250mA | 4Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA103WR23K1CMC 10MH 230MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 230mA | 4.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|

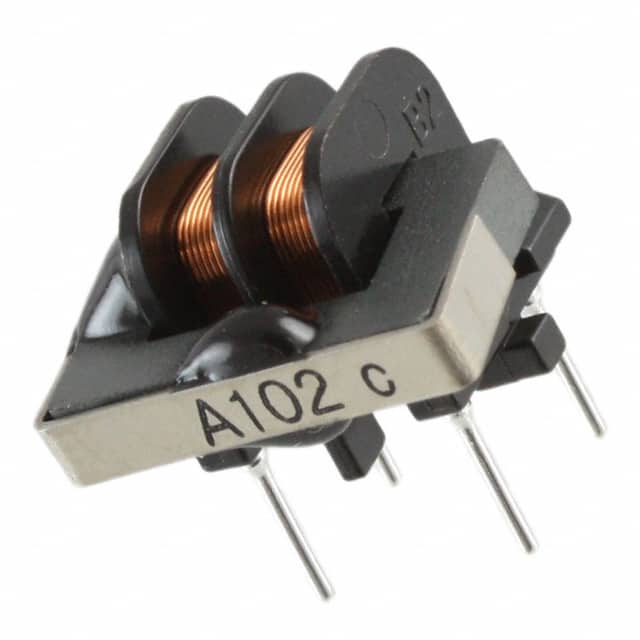

TLF9UAH102W0R8K1CMC 1MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 800mA | 500mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH153W0R2K1CMC 200MA 2LN TH |
0 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 200mA | 5.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH302WR42K1CMC 420MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 420mA | 1.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH502WR32K1CMC 320MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 320mA | 2.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH802WR25K1CMC 8MH 250MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 250mA | 4Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH103WR23K1CMC 10MH 230MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 230mA | 4.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UB203WK1CMC 180MA 2LN 150K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 150 kOhms @ 500 kHz | - | 180mA | 6.5Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UB302WK1CMC 400MA 2LN 20K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 20 kOhms @ 1 MHz | - | 400mA | 1.5Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UB802WK1CMC 300MA 2LN 40K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 40 kOhms @ 700 kHz | - | 300mA | 3Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
