Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN242-1-02CMC 33MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 1A (Typ) | 810mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN242-2-02CMC 6.8MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 2A (Typ) | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN242-4-02CMC 3.3MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 4A (Typ) | 66mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN242-6-02CMC 1.8MH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN232-0.6-02COMMON MODE CHOKE 47MH 600MA |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-1.6-02COMMON MODE CHOKE 10MH 1.6A |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-1-02COMMON MODE CHOKE 18MH 1A |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-2.5-02COMMON MODE CHOKE 5.6MH 2.5A |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-4-02COMMON MODE CHOKE 3.3MH 4A |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TCM1210H-900-2P-T000CMC 100MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 850mOhm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
CM01S600TCMC 300MA 2LN 60 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 100 MHz | - | 300mA | 400mOhm | 20V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM01U900TCMC 400MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 20V | - | -40°C ~ 125°C | - | - | - | - | - |
|
PLA10AS3021R3R2BCMC 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.3A | - | 250V | - | -25°C ~ 60°C | - | - | - | - | - |
|
CAB-4.0-3.3CMC 3.3MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 34mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

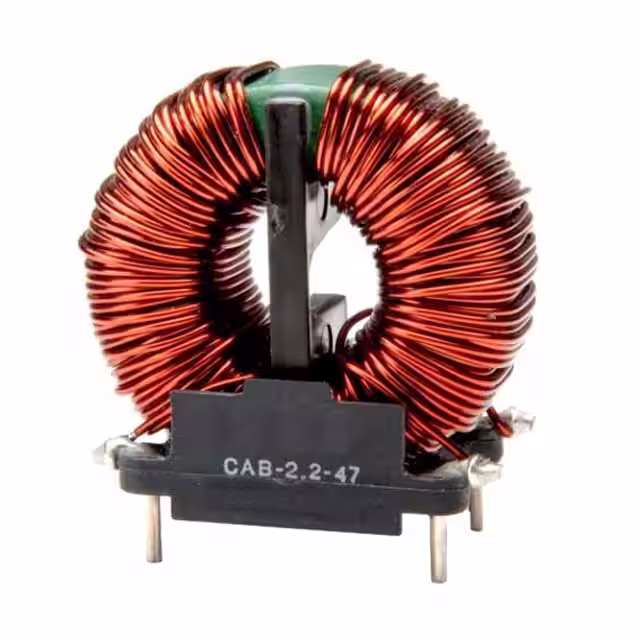

CAB-2.2-47CMC 47MH 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 47 mH @ 10 kHz | 2.2A | 185mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B4001NLCMC 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
BX8267LNLCMC SMD |
0 |
|
- |
8-SMD, J-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BX8267LANLCMC SMD |
0 |
|
- |
8-SMD, J-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BX8191NLCMC SMD |
0 |
|
- |
Vertical, 8 Flat Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE-62914NLCMC 16MH 2.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 16 mH @ 1 kHz | 2.6A | 160mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
