Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

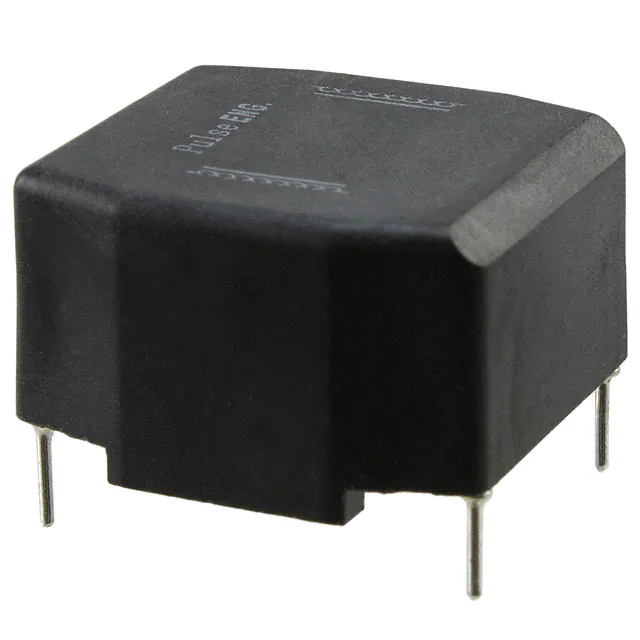

PE-96161NLCMC 500MA (TYP) 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 500mA (Typ) | 1.4Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-96187NLCMC 8A (TYP) 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 8A (Typ) | 33mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-62895NLCMC 8MH 3.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 3.2A | 120mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-96173NLCMC 3.15A (TYP) 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.15A (Typ) | 100mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-62891NLCMC 10MH 1.8A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.8A | 240mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg)
|
PE-0805CCMC670STSCMC 400MA 2LN 67 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-1206CCMC161STSCMC 340MA 2LN 160 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-0805CCMC900STHCMC 300MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-1206CCMC261STSCMC 310MA 2LN 260 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | - | - | - | - | - | - |
|
|
T8132NLTCMC 16LN SMD |
0 |
|
Datasheet |
- | Signal Line | 16 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
750052322CMC |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
573 31 060 00COMMON MODE CHOKE 1.2A |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TCM0806G-350-2PCMC 100MA 2LN 35 OHM SMD |
0 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.15Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM0806G-650-2PCMC 100MA 2LN 65 OHM SMD |
0 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM0806G-900-2PCMC 100MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 2.7Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ZJY51R5-2P-01CMC 2A 2LN 200 OHM TH |
0 |
|
Datasheet |
4-DIP (0.300", 7.62mm) | Power, Signal Line | 2 | 200 Ohms @ 100 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ZJY51R5-2PB-01CMC 2A 2LN 300 OHM TH |
0 |
|
Datasheet |
4-DIP (0.300", 7.62mm) | Power, Signal Line | 2 | 300 Ohms @ 20 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ZJY51R5-2PL-01CMC 2A 2LN 100 OHM TH |
0 |
|
Datasheet |
4-DIP (0.300", 7.62mm) | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 2A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ZJY51R5-4P-01CMC 2A 4LN 200 OHM TH |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | Power, Signal Line | 4 | 200 Ohms @ 100 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ZJY51R5-M4PA-01CMC 500MA 4LN 200 OHM TH |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | Power, Signal Line | 4 | 200 Ohms @ 100 MHz | - | 500mA | 250mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
