Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN122-1-02-1COMMON MODE CHOKE 18MH 1A |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN122-2.5-02CMC 5.6MH 2.5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 1 kHz | 2.5A (Typ) | 105mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN122-3-02CMC 4.5MH 3A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 3A (Typ) | 82.6mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN122-4-02-1COMMON MODE CHOKE 3.3MH 4A |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RN142-0.5-02CMC 82MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 82 mH @ 1 kHz | 500mA (Typ) | 2.7Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN142-1.4-02CMC 27MH 1.4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A (Typ) | 500mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN142-1-02CMC 33MH 1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 1A (Typ) | 810mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN142-2-02CMC 6.8MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A (Typ) | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN142-4-02CMC 3.3MH 4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 4A (Typ) | 66mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN142-6-02CMC 1.8MH 6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 1 kHz | 6A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN143-0.5-02CMC 100MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 500mA (Typ) | 2.9Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN143-1-02CMC 47MH 1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 1 kHz | 1A (Typ) | 880mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN143-2-02CMC 10MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2A (Typ) | 230mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN143-4-02CMC 3.9MH 4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 1 kHz | 4A (Typ) | 58mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN143-6-02CMC 1.8MH 6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 1 kHz | 6A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN222-0.6-02CMC 47MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 1 kHz | 600mA (Typ) | 1.18Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN222-0.8-02CMC 39MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 1 kHz | 800mA (Typ) | 1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN222-3-02CMC 4.5MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 3A (Typ) | 82.6mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

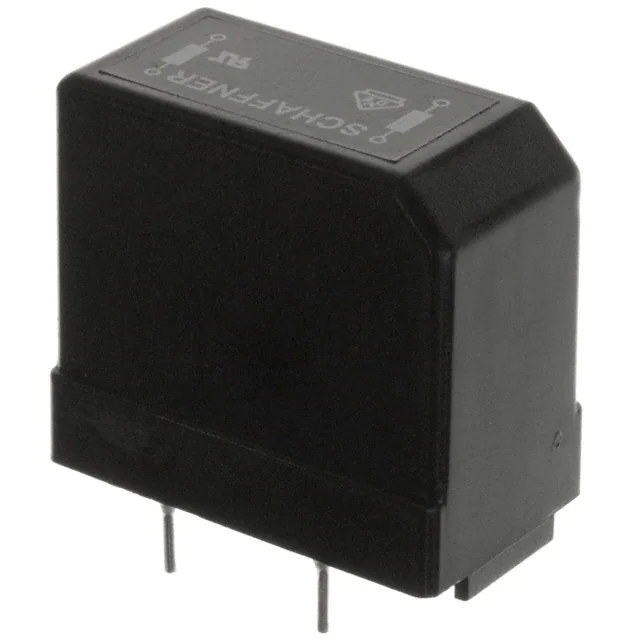

RN242-0.5-02CMC 82MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA (Typ) | 2.7Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN242-1.4-02CMC 27MH 1.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 1 kHz | 1.4A (Typ) | 500mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
