Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-16M050ACMC 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 500mA | 980mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M060ACMC 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 600mA | 800mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M070ACMC 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 700mA | 550mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M080ACMC 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 800mA | 400mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M100ACMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 270mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-16M130ACMC 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.3A | 160mOhm (Typ) | - | - | - | - | - | - | - | - |
|

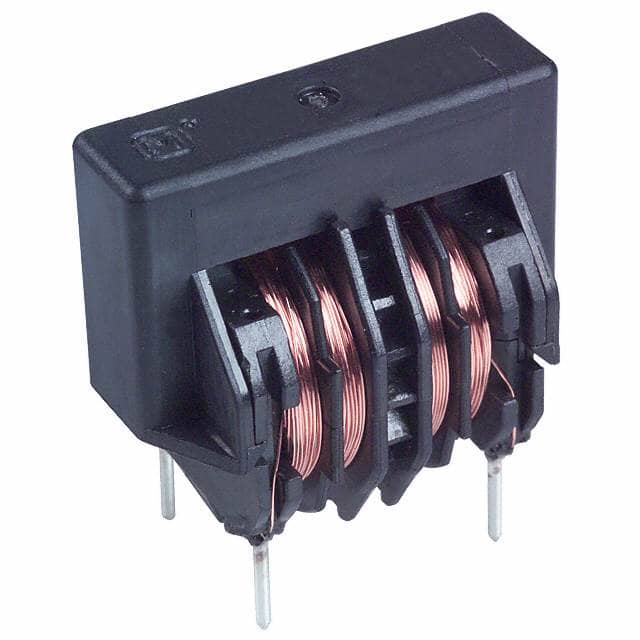

ELF-17N002ACMC 200MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 200mA | 7.543Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N003ACMC 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 300mA | 3.154Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N004ACMC 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 400mA | 1.966Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N005ACMC 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 500mA | 1.324Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N006ACMC 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 600mA | 933mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N007ACMC 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 700mA | 762mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N008ACMC 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 800mA | 548mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N010ACMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 369mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N011ACMC 1.1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.1A | 308mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N013ACMC 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.3A | 202mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N015ACMC 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 170mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N017ACMC 1.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.7A | 126mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N022ACMC 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.2A | 78mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-17N030ACMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3A | 52mOhm (Typ) | - | - | - | - | - | - | - | - |
