Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3000-181CMC 180UH 810MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 180 µH @ 1 kHz | 810mA | 259mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-182CMC 1.8MH 260MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 1.8 mH @ 1 kHz | 260mA | 2.8Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-221CMC 220UH 790MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 220 µH @ 1 kHz | 790mA | 316mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-272CMC 2.7MH 230MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 2.7 mH @ 1 kHz | 230mA | 3.68Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-332CMC 3.3MH 210MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 3.3 mH @ 1 kHz | 210mA | 4.71Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-392CMC 3.9MH 200MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 3.9 mH @ 1 kHz | 200mA | 5.16Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-472CMC 4.7MH 180MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 4.7 mH @ 1 kHz | 180mA | 6.64Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-562CMC 5.6MH 150MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 5.6 mH @ 1 kHz | 150mA | 9.03Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7103CMC 2MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 1A | 70mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7105CMC 5MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 1A | 125mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7106CMC 600UH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 600 µH @ 1 kHz | 2A | 30mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7107CMC 1MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 2A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7350-VCMC 500UH 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 500 µH @ 1 kHz | 1.5A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

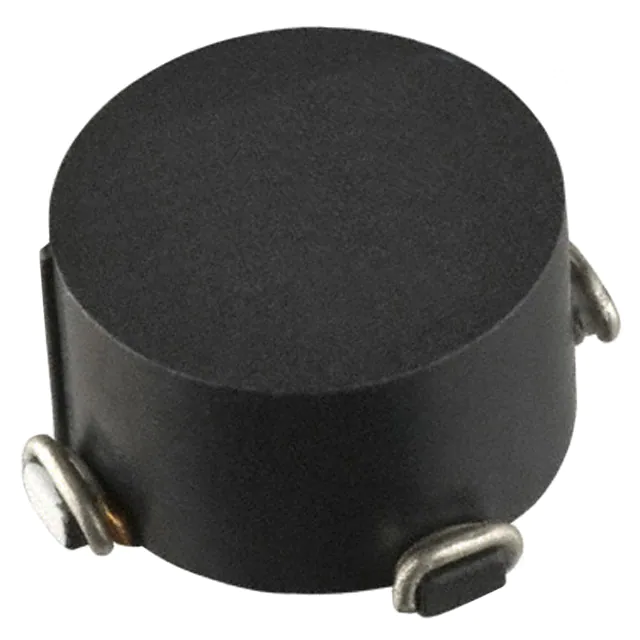

PM3700-30CMC 750UH 5.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 1 kHz | 5.5A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-40CMC 1MH 4A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 1 kHz | 4A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-70CMC 10MH 1.5A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 10 mH @ 1 kHz | 1.5A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-80CMC 20MH 1A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 20 mH @ 1 kHz | 1A | 250mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

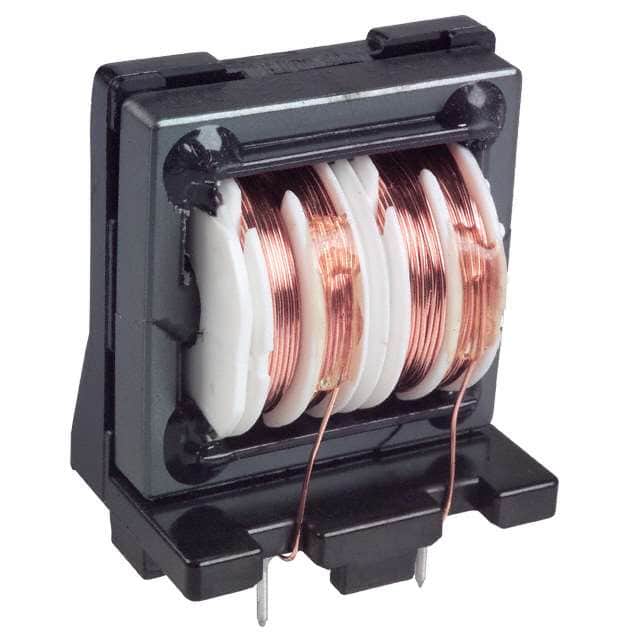

ELF-21V006ACMC 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 600mA | 1.294Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V007ACMC 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 700mA | 1.212Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V008ACMC 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 800mA | 707mOhm (Typ) | - | - | - | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
