Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-21V010ACMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 515mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V013ACMC 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.3A | 309mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V016ACMC 1.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.6A | 226mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V020ACMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 147mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V025ACMC 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 87mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V030ACMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3A | 58mOhm (Typ) | - | - | - | - | - | - | - | - |
|

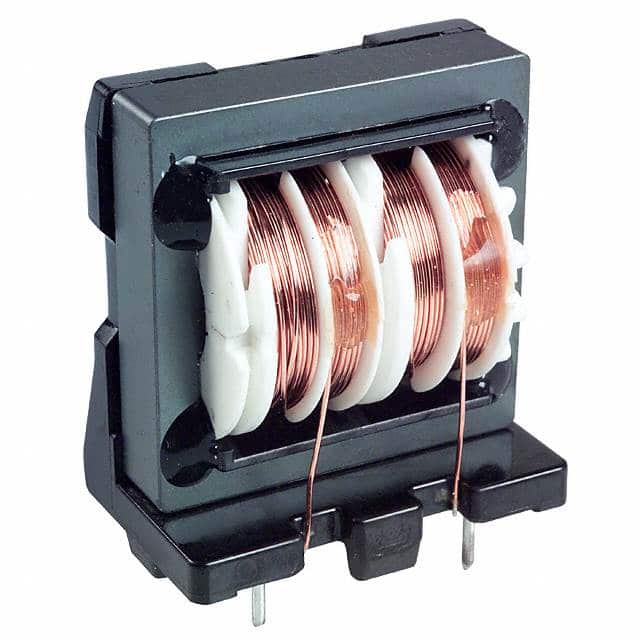

ELF-24V010ACMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 608mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V012ACMC 1.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.2A | 469mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V014ACMC 1.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.4A | 327mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V015ACMC 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 274mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V020ACMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 161mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V025ACMC 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 124mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V028ACMC 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.8A | 100mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V030ACMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3A | 90mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V034ACMC 3.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.4A | 65mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V037ACMC 3.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.7A | 52mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V042ACMC 4.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 4.2A | 41mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V050ACMC 5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 5A | 28mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-24V080ACMC 8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 8A | 15mOhm | - | - | - | - | - | - | - | - |
|
|
ELF-24V090ACMC 9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 9A | 12mOhm | - | - | - | - | - | - | - | - |
