Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

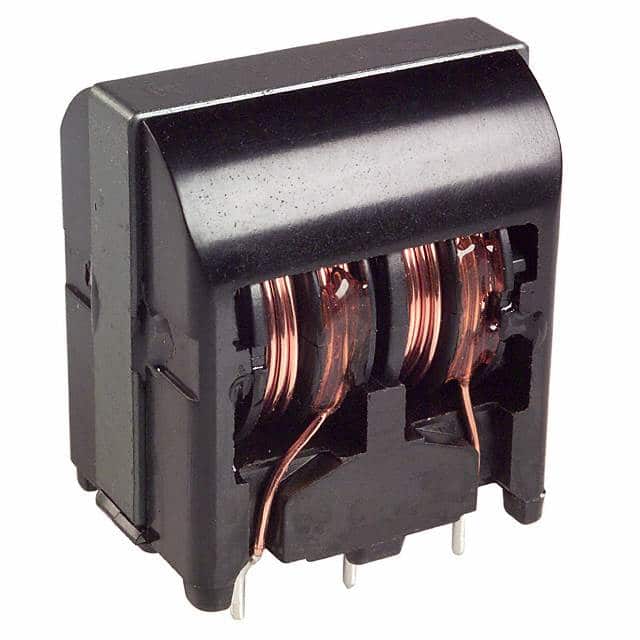

ELF-18D850DCMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 161mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D850CCMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3A | 97mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D850XCMC 3.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.4A | 65mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D850PCMC 3.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.7A | 52mOhm (Typ) | - | - | - | - | - | - | - | - |
|

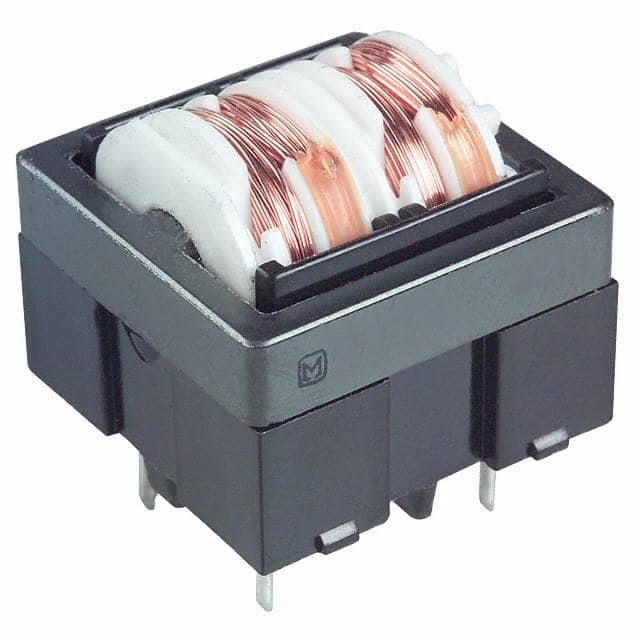

ELF-18D210CMC 18MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 500mA | 1.271Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D214CMC 8.2MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 1 kHz | 700mA | 574mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D225CMC 6.8MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.8 mH @ 1 kHz | 800mA | 519mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D213CMC 3.3MH 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | - | - | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D219CMC 2.7MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 1 kHz | 1.3A | 197mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D235FCMC 47MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 1 kHz | 300mA | 2.768Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|

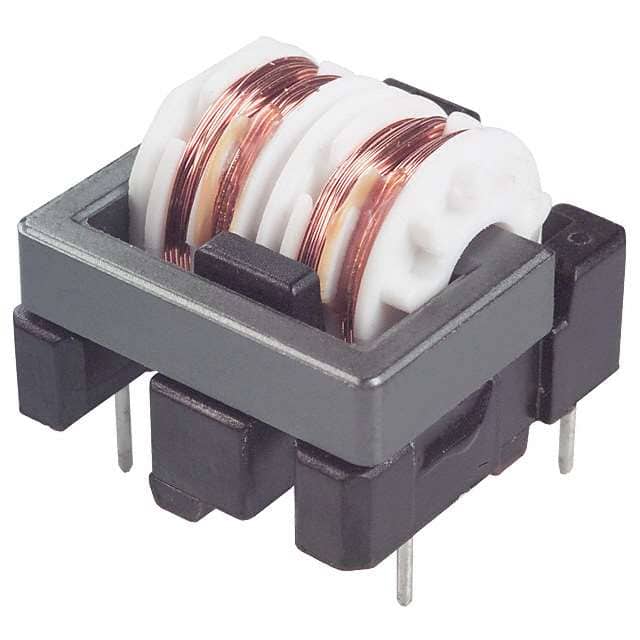

ELF-18D270JCMC 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 300mA | 2.691Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D270BCMC 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 400mA | 1.707Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D270DCMC 1.1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.1A | 248mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D270CCMC 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 162mOhm (Typ) | - | - | - | - | - | - | - | - |
|

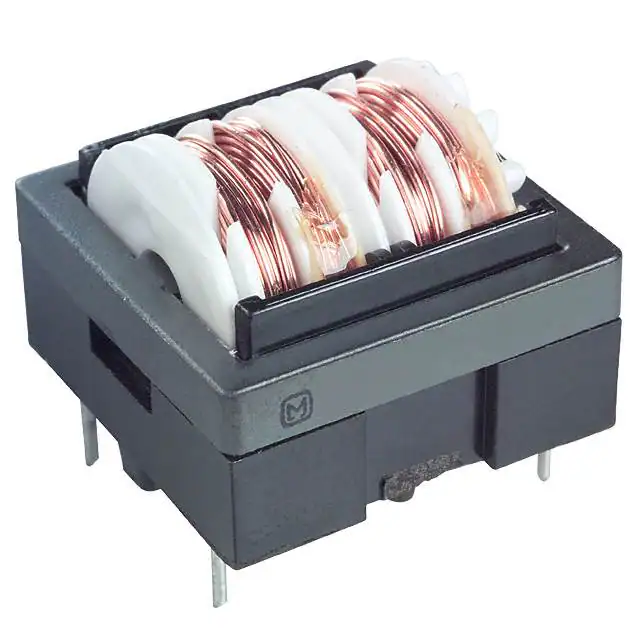

ELF-18D423CMC 27MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 1 kHz | 600mA | 1.136Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D417CMC 18MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 700mA | 700mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D433CMC 3.9MH 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.9 mH @ 1 kHz | 1.5A | 176mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D414CMC 3.3MH 1.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 1.8A | 138mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D437FCMC 68MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 1 kHz | 400mA | 2.319Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D417FCMC 18MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 800mA | 655mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
