Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8117CMC 36MH 2.9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-A5-4724.7MH @ 10 KHZ 2 LINE COMMON MOD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 15A | 20mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
T60405R6123X2266123X226 |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | 970 Ohms @ 100 kHz | 1.01 mH @ 100 kHz | 25A | 2.2mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6122X0086122X008 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 2 | - | 9 mH @ 10 kHz | 10A | 10mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
CMF2-7503SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | 750 µH @ 10 kHz | 1.5A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
FD2D-40-2022MH @ 10 KHZ 1 LINE COMMON MODE |
0 |
|
Datasheet |
Horizontal, 2 PC Pin | Power Line | 2 | - | 2 H @ 10 kHz | 4A | 230mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF3-1004SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 1 kHz | 4A | 45mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF2-1004SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | 1 mH @ 10 kHz | 1.2A | 210mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
PL8802NLTCMC 2.5A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 2.5A | 80mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8802TCMC 2.5A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 2.5A | 80mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
AMFC004-40NZ40A Common mode choke |
10 |
|
Datasheet |
- | - | - | - | - | 40A | 2Ohm (Typ) | 2000V (2kV) | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF2-2503SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | 250 µH @ 10 kHz | 2.4A | 55mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
TCK-103INDUCTORS |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 285 µH @ 100 kHz | 16A | 6mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-C5-1421400H @ 10 KHZ 2 LINE COMMON MOD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.4 H @ 10 kHz | 35A | 5mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
8118CMC 7.3MH 9.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

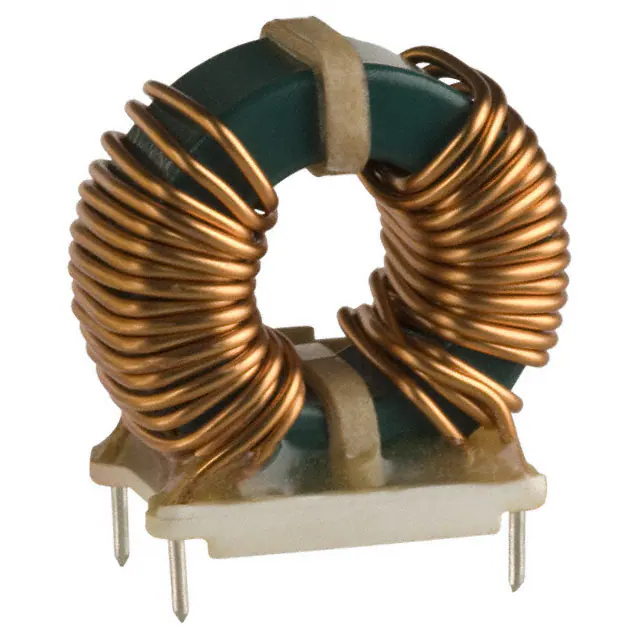

8119CMC 4MH 14.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8120CMC 2.4MH 17A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

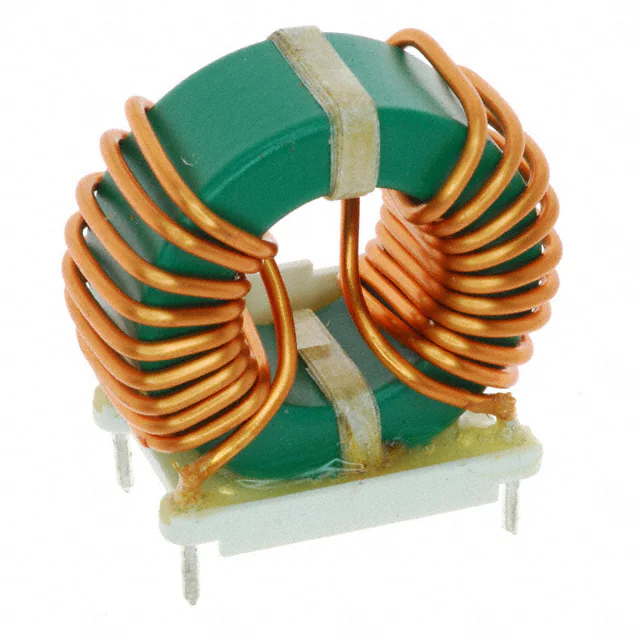

8121CMC 1MH 20A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

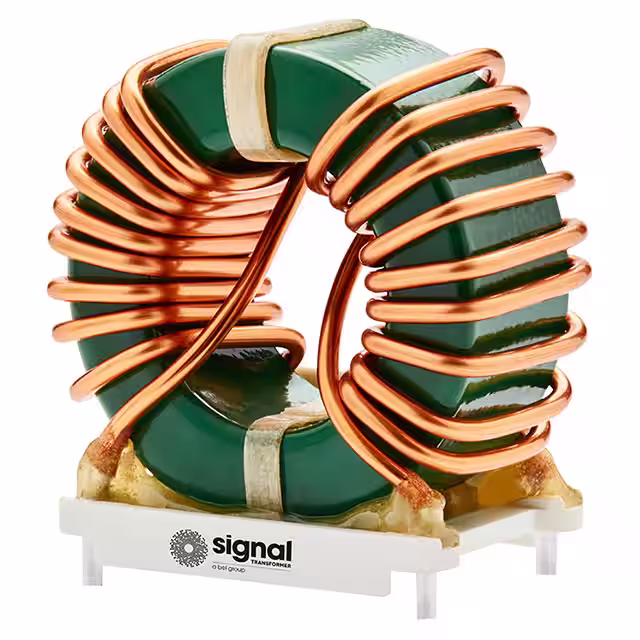

HCTC-1-20CMC 1MH 20A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-A5-5625.6MH @ 10 KHZ 2 LINE COMMON MOD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 15A | 20mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
