Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
T60405R6127X0146127X014 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 2.73 Ohms @ 100 kHz | 2.7 mH @ 100 kHz | 12A | 7.3mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0226127X022 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 1.03 kOhms @ 100 kHz | 1 mH @ 100 kHz | 19.4A | - | - | - | -40°C ~ 115°C | AEC-Q200 | - | - | - | - |
|
|
T60405R6127X0076127X007 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 1.93 kOhms @ 100 kHz | 1.9 mH @ 100 kHz | 13A | 5.4mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0106127X010 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 6.63 kOhms @ 100 kHz | 6.2 mH @ 100 kHz | 8A | 16.6mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
AMFW48-1JZCMC 50LN TH INDUSTRIAL |
5 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | 18V | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
FE2X03-8-3NLCMC 8A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 8A | 33mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

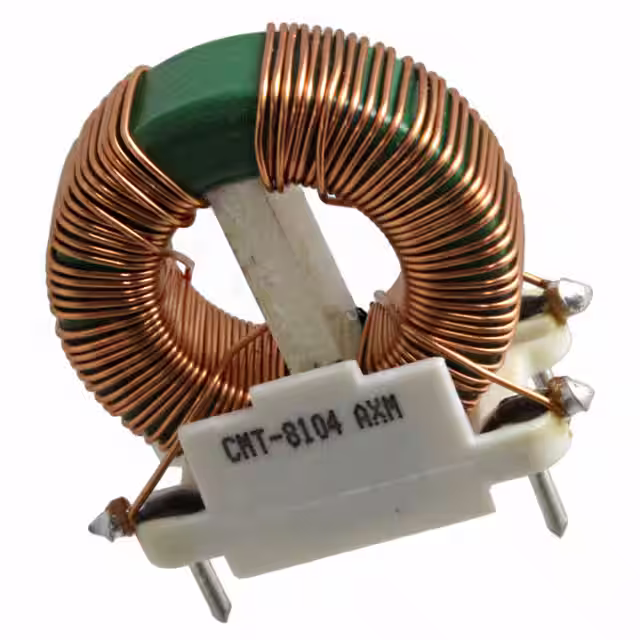

CMT-8104CMC 10MH 2.4A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8104-BCMC 10MH 2.4A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8105-BCMC 7MH 2.8A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8106-BCMC 5MH 3.7A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 3.7A | 70mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8107-BCMC 2MH 6.6A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8108-BCMC 1MH 10A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
DFK-25-0001CMC 1A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 1A | 510mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
|
|
T60405A6166X0236166X023 |
0 |
|
- |
Vertical, 8 PC Pin | Power Line | 2 | - | 143 µH @ 200 kHz | 6A | 22mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
TPCM-2.4-5CMC 2.41MH 5A 2LN TH |
5 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.41 mH @ 10 kHz | 5A | 36mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PL8803NLTCMC 1A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 1A | 450mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8803TCMC 1A 2LN SMD |
0 |
|
Datasheet |
Nonstandard | Power Line | 2 | - | - | 1A | 450mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
HCTC-36-2.9CMC 36MH 2.9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
T60405R6122X095CMC 3.6MH 13.5A 2LN 4K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 4 kOhms @ 100 kHz | 3.6 mH @ 100 kHz | 13.5A | - | - | - | -40°C ~ 70°C | - | - | - | - | - |
|
|
PL8226TPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 117 µH @ 10 kHz | 14A | 1.95mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
