Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CMF2-5003SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | 500 µH @ 10 kHz | 1.8A | 95mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CME2425-1CMC 1.05MH 2.5A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.05 mH @ 10 kHz | 2.5A | 50mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-2CMC 2.37MH 2A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.37 mH @ 10 kHz | 2A | 80mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-3CMC 3.8MH 1.6A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 1.6A | 127mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-4CMC 6MH 1.28A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 1.28A | 202mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-5CMC 9.8MH 1A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.8 mH @ 10 kHz | 1A | 319mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-8CMC 40.5MH 500MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 40.5 mH @ 10 kHz | 500mA | 1.26Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-9CMC 67.5MH 400MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 67.5 mH @ 10 kHz | 400mA | 2.02Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
T60405R4300X008CMC 20MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 20 mH @ 10 kHz | 2A | - | - | - | -40°C ~ 40°C | - | - | - | - | - |
|
DSO1-175-0005CMC 3A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 3A | 20mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|

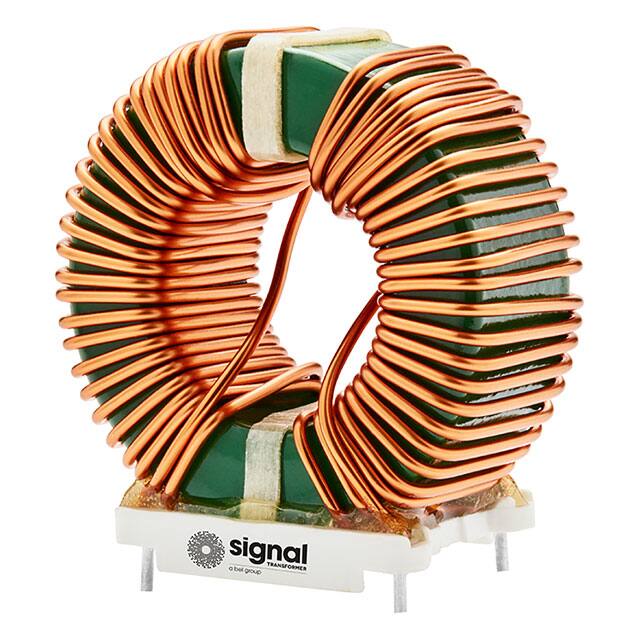

HCTC-7.3-9.3CMC 7.3MH 9.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
T60405R6126X0136126X013 |
0 |
|
- |
Vertical, 8 PC Pin | - | 2 | 400 Ohms @ 100 kHz | 350 µH @ 100 kHz | 35A | 1.6Ohm | - | - | -40°C ~ 50°C | - | - | - | - | - |
|
|
T60405A6166X0266166X026 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | - | 615 µH @ 10 kHz | 2.8A | 92mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
PL8220POWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 400 µH @ 10 kHz | 6A | 9.4mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
CMF2-1003SMLFCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | 100 µH @ 10 kHz | 3A | 35mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF2-1003SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | 100 µH @ 10 kHz | 3A | 35mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405S4220X3094220X309 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 1.25 kOhms @ 100 kHz | 1.25 mH @ 100 kHz | 10A | 8mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
T60406A6131X0336131X033 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | - | - | - | 27mOhm | - | - | - | - | - | - | - | - |
|
DCM282818H-222NHF2,200uH,34mOhm,6Amp Max. DIP CMC |
20 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 34mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
8116CMC 50MH 2.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 1 kHz | 2.3A | 450mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
