Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX01-17080COMMON MODE CHOKE 5MH 3.5A |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

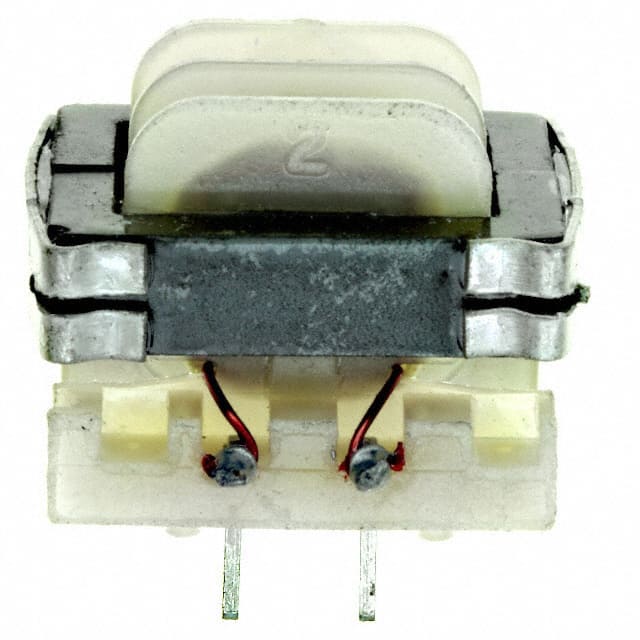

CM9900-473CMC 47UH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 µH @ 1 kHz | 3.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-563CMC 56UH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 56 µH @ 1 kHz | 3.5A | 18mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-683CMC 68UH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 µH @ 1 kHz | 3.5A | 19mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-823CMC 82UH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 82 µH @ 1 kHz | 2.8A | 23mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-124CMC 120UH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 120 µH @ 1 kHz | 2.8A | 28mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-154CMC 150UH 2.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 150 µH @ 1 kHz | 2.8A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-184CMC 180UH 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 180 µH @ 1 kHz | 2.2A | 38mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-224CMC 220UH 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 220 µH @ 1 kHz | 2.2A | 44mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-274CMC 270UH 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 270 µH @ 1 kHz | 2.2A | 51mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-334CMC 330UH 1.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 330 µH @ 1 kHz | 1.7A | 58mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-474CMC 470UH 1.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 470 µH @ 1 kHz | 1.4A | 78mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-564CMC 560UH 1.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 560 µH @ 1 kHz | 1.4A | 91mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-684CMC 680UH 1.1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 680 µH @ 1 kHz | 1.1A | 115mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-824CMC 820UH 1.1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 820 µH @ 1 kHz | 1.1A | 131mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-105CMC 1MH 880MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 880mA | 194mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-125CMC 1.2MH 880MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.2 mH @ 1 kHz | 880mA | 219mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-155CMC 1.5MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.5 mH @ 1 kHz | 700mA | 278mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-185CMC 1.8MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.8 mH @ 1 kHz | 700mA | 306mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM9900-225CMC 2.2MH 550MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.2 mH @ 1 kHz | 550mA | 431mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
