Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF2720B-451Y10R0-01CMC 10A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 10A | 15mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2720B-801Y8R0-01CMC 8A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 8A | 20mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-102Y10R0-01CMC 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 20mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-103Y3R0-01CMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 150mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-202Y8R0-01CMC 8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 8A | 25mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2720B-702Y2R5-01CMC 2.5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2.5A | 200mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
750312184CMC 4MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 2A | 34mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

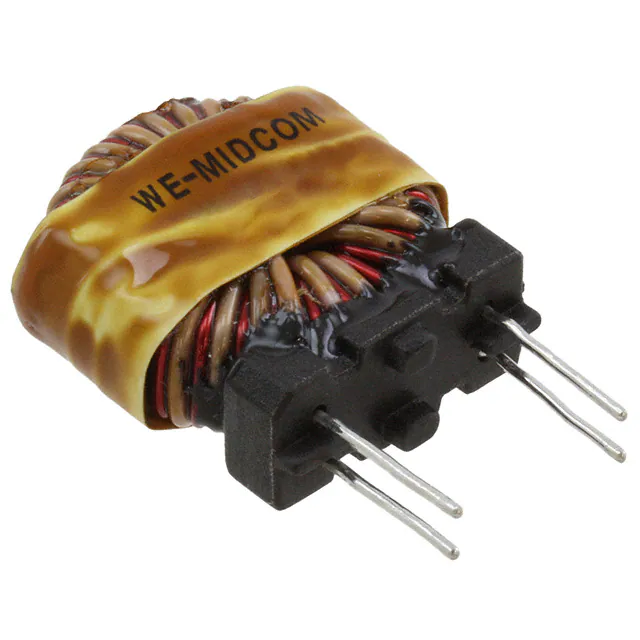

750312185CMC 4.8MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.8 mH @ 1 kHz | 2A | 74mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PL8213NLPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 800 µH @ 10 kHz | 3A | 30mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8216NLPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 280 µH @ 10 kHz | 4A | 13.2mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6127X0216127X021 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 820 Ohms @ 100 kHz | 800 nH @ 100 kHz | 15.2A | 3.3mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0166127X016 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 2.53 kOhms @ 100 kHz | 2.3 mH @ 100 kHz | 9A | 10.8mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0186127X018 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 1.54 kOhms @ 100 kHz | 1.4 mH @ 100 kHz | 11A | 6.8mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0156127X015 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 3.31 kOhms @ 100 kHz | 3 mH @ 100 kHz | 8A | - | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0206127X020 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 1.03 kOhms @ 100 kHz | 1 mH @ 100 kHz | 14A | 4.1mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0196127X019 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 1.28 kOhms @ 100 kHz | 1.2 mH @ 100 kHz | 12A | 5.5mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
T60405R6127X0176127X017 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 2.18 kOhms @ 100 kHz | 2 mH @ 100 kHz | 9.5A | 9mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
FL2D-A5-3323.3MH @ 10 KHZ 2 LINE COMMON MOD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 15A | 15mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
PL8203TCMC 7.2A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 7.2A | 15mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

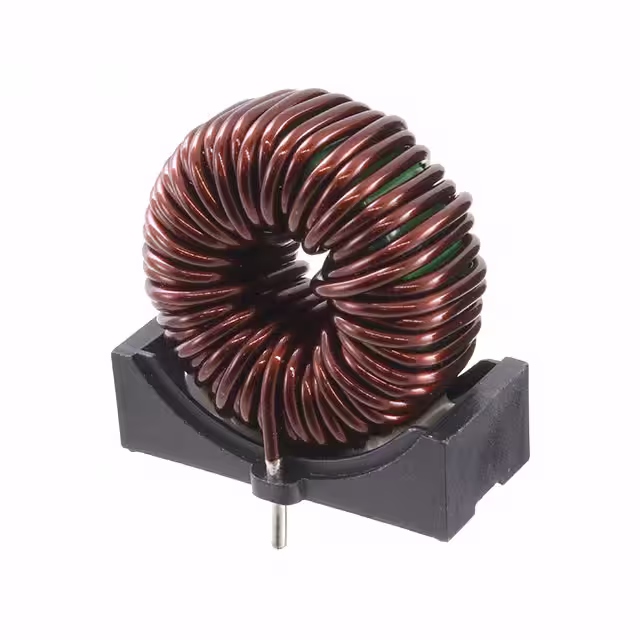

SN16-500JACMC 168UH 8A 2LN TH |
0 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 168 µH @ 100 kHz | 8A | 31mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
