Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCT19XV-150-1R3A006JHCMC 134UH 15A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 134 µH @ 100 kHz | 15A | 3.01mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SN16-400JACMC 108UH 8A 2LN TH |
0 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | 8A | 27mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
T60405R6126X2126126X212 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 2.95 Ohms @ 100 kHz | 2.6 mH @ 100 kHz | 12A | 10.6mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
FL2D-A0-10310MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 10A | 25mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|

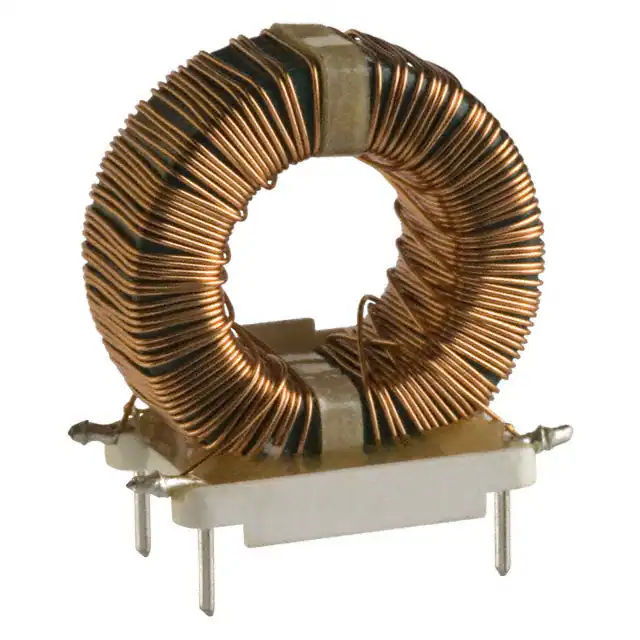

8109CMC 30MH 2.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8110CMC 20MH 2.9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8111CMC 12MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8112CMC 8MH 5.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
PL8217NLTPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 486 µH @ 10 kHz | 4.2A | 16mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8217TPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 486 µH @ 10 kHz | 4.2A | 16mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
CMT-8105CMC 7MH 2.8A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8106CMC 5MH 3.7A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 3.7A | 70mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
TF3233S-251Y20R0-K1CMC 20A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 20A | 5mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3233S-601Y15R0-K1CMC 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 15A | 7mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3233S-103Y3R0-K1CMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 150mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
TF2326VU-103Y3R0-01MCMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3233S-102Y10R0-K1CMC 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 20mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3233S-202Y8R0-K1CMC 8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 8A | 25mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3233S-402Y6R0-K1CMC 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 6A | 30mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3233S-502Y5R0-K1CMC 5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 5A | 50mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
