Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF2628V-450Y9R0-1HCMC 45UH 9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 45 µH @ 10 kHz | 9A | 12mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2628V-502Y3R0-01CMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 150mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2628V-451Y10R0-01CMC 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 15mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2628V-650Y6R0-1HCMC 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 6A | 20mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2628V-801Y8R0-01CMC 8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 8A | 20mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2628V-402Y4R0-01CMC 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2628V-702Y2R5-01CMC 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.5A | 200mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|

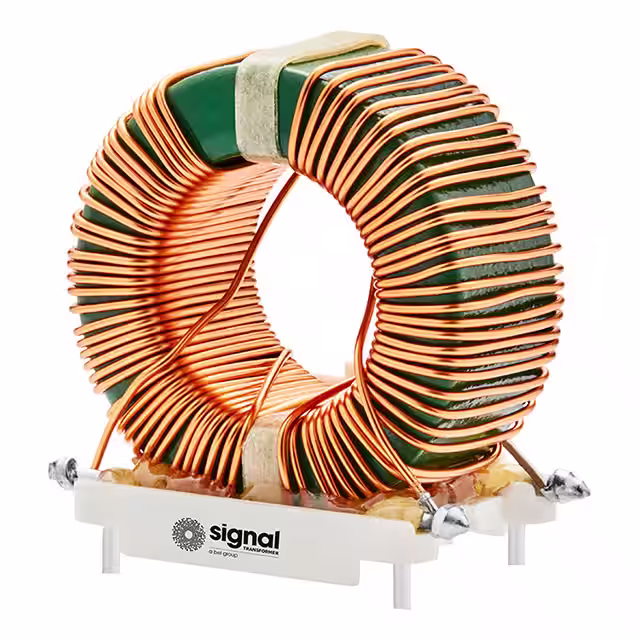

HCTC-12-4CMC 12MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

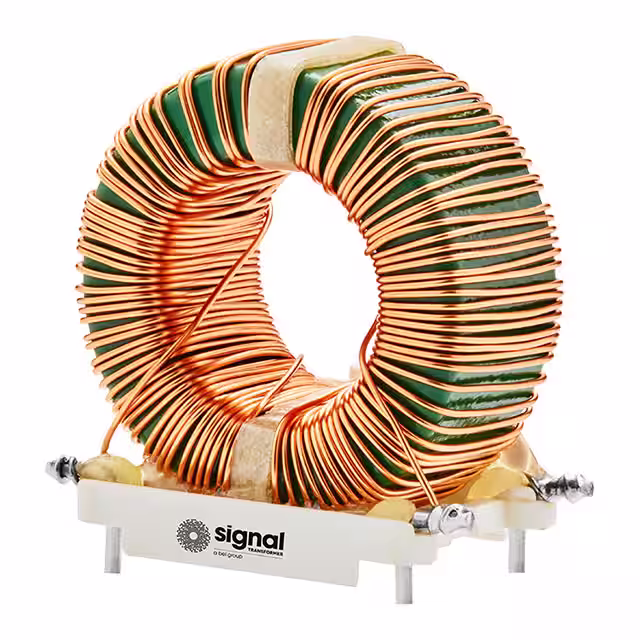

HCTC-20-2.9CMC 20MH 2.9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
AMFC2-12NZ12A Common mode choke |
10 |
|
Datasheet |
- | - | - | - | - | 12A | 145mOhm (Typ) | 2000V (2kV) | 1500V (1.5kV) | -40°C ~ 105°C | - | - | - | - | - |
|
|
PL8212TPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.125 mH @ 10 kHz | 1.8A | 55mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8216TPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 280 µH @ 10 kHz | 4A | 13.2mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
FL4D-20-702A7MH @ 10 KHZ 4 LINE COMMON MODE |
0 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 2A | 100mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
PE-96175NLCMC 3.15A (TYP) 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3.15A (Typ) | 70mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DKFP-H22H-063RDKFP COMP.CHOKE THT P O 6A 2X3.9 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 6A | 46mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-H22H-0218DKFP COMP.CHOKE THT P O 2A 2X18M |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2A | 360mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
PL8221NLTPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 61 µH @ 10 kHz | 7A | 2.9mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8212NLTPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.125 mH @ 10 kHz | 1.8A | 55mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8216NLTPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 280 µH @ 10 kHz | 4A | 13.2mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8204NLCMC 5.6A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5.6A | 21mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
