Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8210NLTCMC 1.22A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.22A | 200mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
CMX1211X132B-10CMC 1.3MH 11A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.3 mH @ 100 kHz | 11A | 10mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
T60405R6161X0376161X037 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 3.4 kOhms @ 100 kHz | 3.8 mH @ 100 kHz | 2.8A | 55mOhm | - | - | -40°C ~ 70°C | - | - | - | - | - |
|
|
T60405R6166X2086166X208 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 4.2 kOhms @ 100 kHz | 4.263 mH @ 100 kHz | 8.5A | 22.5mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

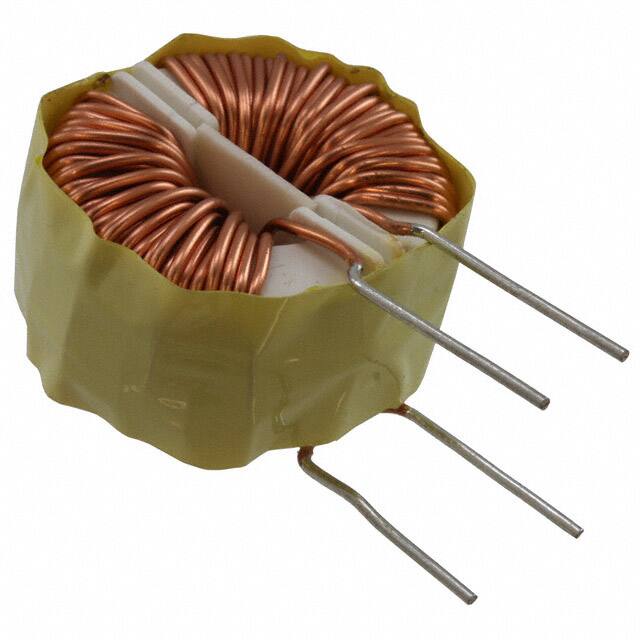

7118-RCCMC 1.7MH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 5A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7120-RCCMC 6.8MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 6.8 mH @ 1 kHz | 4A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
TF1320S-222Y2R0-01CMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 2A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF1320S-402Y1R5-01CMC 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 200mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
EV35-4.0-02-5M0CMC 5MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 4A | 53mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
SNCMC-127-021SUPPRESSIONCHOKECOMM |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNCMC-127-020SUPPRESSIONCHOKECOMM |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DS1-175-0004CMC 1.4A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 1.4A | 80mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
HF2826-332Y3R0-T01CMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 88mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
TCK-162CMC 55.6UH 1A 4LN SMD |
0 |
|
Datasheet |
Horizontal, 4 Gull Wing | - | 4 | - | 55.6 µH @ 100 kHz | 1A | 30mOhm | 500V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
T60405R6166X0286166X028 |
0 |
|
- |
Vertical, 8 PC Pin | - | 2 | 130 Ohms @ 100 kHz | 140 nH @ 100 kHz | 33.5A | 1.8mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
FL2D-C5-301300H @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 300 mH @ 10 kHz | 35A | 2mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-30-103B10MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 3A | 100mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
EH35-2.0-02-20MCMC 20MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2A | 150mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
EH35-3.0-02-10MCMC 10MH 3A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 400 Hz | 3A | 72mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
T60405R6166X0196166X019 |
0 |
|
- |
Vertical, 8 PC Pin | - | 2 | 3 kOhms @ 100 kHz | 3 mH @ 100 kHz | 11.5A | 12mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
