Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

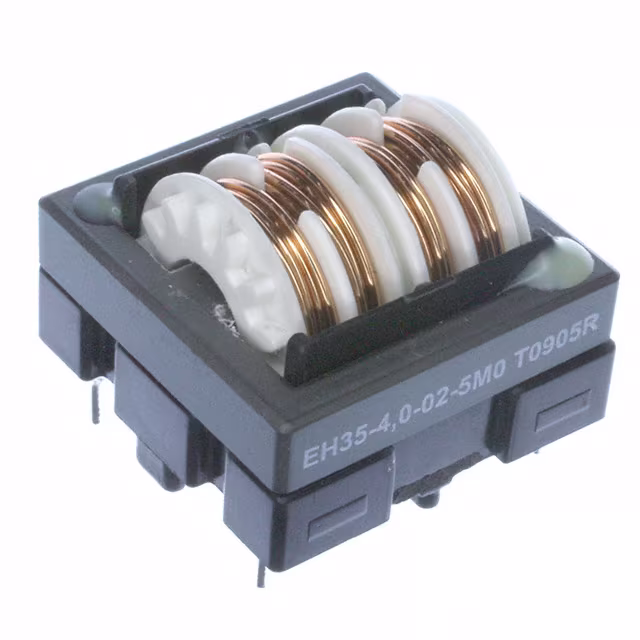

EH35-4.0-02-5M0CMC 5MH 4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 400 Hz | 4A | 53mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
DFKF-28-0003DFKF COMPENSATED CHOKE 1.4A 27MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.4A | 310mOhm | - | 440V | -25°C ~ 100°C | - | cURus, UL | - | - | - |
|
B82799S223N1CMC 22UH 250MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 170mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799S513N1CMC 51UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 200mA | 250mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799C104N1CMC 100UH 300MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 300mA | 150mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799C113N1CMC 11UH 300MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 300mA | 120mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799S333N1CMC 33UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 33 µH @ 100 kHz | 200mA | 200mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
AML1025-1R9M240-S1CMC 24A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 24A | 2.4mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PE-96177NLCMC 3.15A (TYP) 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3.15A (Typ) | 60mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CLJ-2-473CMC 47MH 100MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 Flat Lead | - | 2 | - | 47 mH @ 100 kHz | 100mA | 3.9Ohm (Typ) | - | - | -25°C ~ 85°C | - | - | - | - | - |
|
DFK-175-0001CMC 500MA 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 500mA | 900mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
|
|
FL2D-A5-1021MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 15A | 10mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
CMT-8102CMC 2.5MH 2.4A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2.4A | 90mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8101CMC 4MH 1.7A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 1.7A | 173mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
T60405R6122X5136122X513 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 3 Ohms @ 100 kHz | 2.5 mH @ 100 kHz | 13A | 10mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
T60405R6131X0456131X045 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 12 kOhms @ 100 kHz | 14 mH @ 100 kHz | 1.8A | 175mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
FL4D-20-302A3MH @ 10 KHZ 4 LINE COMMON MODE |
0 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 2A | 80mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
SN14P-770HNMC 550.0UH 3.0A 0.0850 OHM TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 550 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
ET2825-033CMC 5MH 3A 2LN TH ESD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 3A | 100mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
DSF-18-0006CMC 4A 2LN TH |
0 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 4A | 8mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
