Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
UU10LFBNP-B123COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 340mA | 2.23Ohm | - | - | - | - | - | - | - | - |
|
|
UU10LFBNP-B223COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 250mA | 3.874Ohm | - | - | - | - | - | - | - | - |
|
|
UU10LFBNP-B332COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 650mA | 729mOhm | - | - | - | - | - | - | - | - |
|
|
UU10LFBNP-B513COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 51 mH @ 1 kHz | 150mA | 9.51Ohm | - | - | - | - | - | - | - | - |
|
BX8267LANLTCMC SMD |
0 |
|
- |
8-SMD, J-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BX8267LNLTCMC SMD |
0 |
|
- |
8-SMD, J-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T8119NLTCHOKE EMI 2-W, 15UH, SHASTA SMT |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.8 kOhms @ 100 MHz | - | 800mA | 160mOhm | - | - | - | - | - | - | - | - |
|

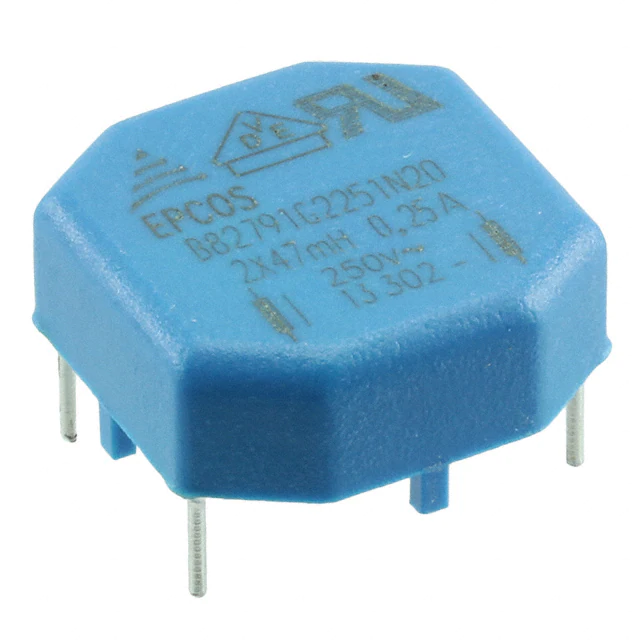

B82791G2251N20CMC 47MH 250MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 250mA | 2.4Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
T8119NLCHOKE EMI 2-W, 15UH, SHASTA SMT |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B82623G0001A010CMC 82UH 2A 2LN TH PFC |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 82 µH @ 100 kHz | 2A | 100mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | PFC | - | - |
|
SSHB21HS-R20071CMC 7.1MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 7.1 mH @ 10 kHz | 2A | 140mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
B2013NLCMC 9MH 100MA 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 1Ohm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
TF2320HU-102Y2R0-01CMC 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2320HU-102Y5R0-01CMC 5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 5A | 50mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
TF2420VU-102Y6R0-01CMC 6A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 6A | 30mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2326VU-102Y6R0-01CMC 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 6A | 30mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2420VU-302Y2R0-01CMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 2A | 110mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2326VU-302Y2R0-01CMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 120mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
LG01-0356N2LFTRCMC 35UH 4CH EXT TEMP 16P SMD T/ |
0 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 350mOhm | - | - | 0°C ~ 70°C | - | UL | - | - | - |
|
SN8S-40P2NMC 46.0UH 2.0A 0.0600 OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 46 µH @ 100 kHz | 2A | 60mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
