Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLA1211-701-RCMC 8A 2LN 700 OHM SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 100V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS26V-070510CMC 51MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 51 mH @ 1 kHz | 700mA | 1.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS26V-080350CMC 35MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 800mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCFE080602G900TGCMC 100MA 2LN 90 OHM SMD ESD |
0 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
-8-Leads-DLP31-Series.jpg)
|
DLP31DN900ML4LCMC 160MA 4LN 90 OHM SMD |
0 |
|
Datasheet |
1206 (3216 Metric), 8 Leads | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 160mA | 1.1Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLP31DN131ML4LCMC 120MA 4LN 130 OHM SMD |
0 |
|
Datasheet |
1206 (3216 Metric), 8 Leads | Signal Line | 4 | 130 Ohms @ 100 MHz | - | 120mA | 1.1Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|

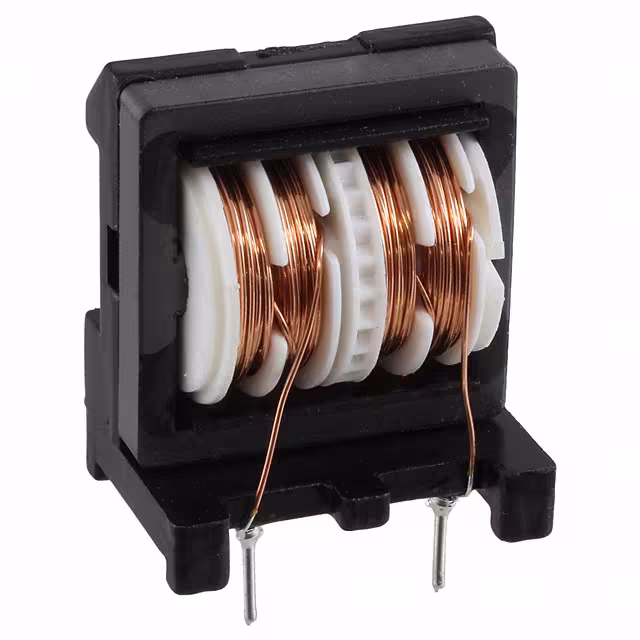

SS24V-R06500-CHCMC 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

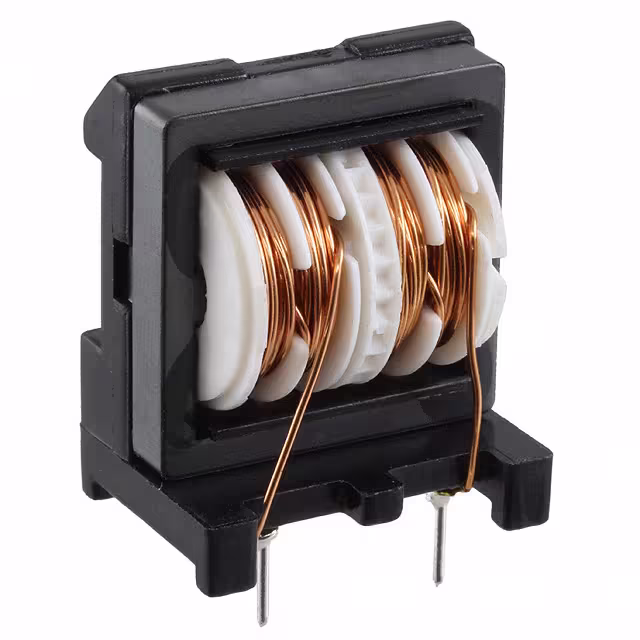

SS24V-R15080-CHCMC 8MH 1.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 1.5A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

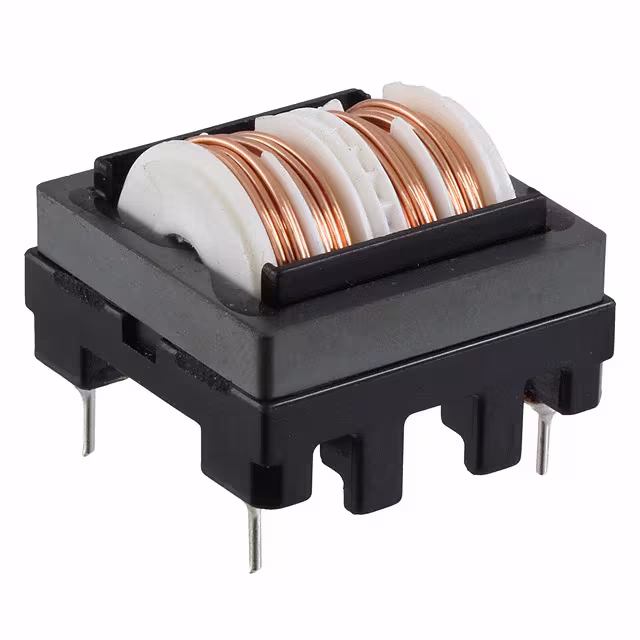

SS28H-20075-CHCMC 7.5MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 2A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
LG11-0346N1LFTRCMC 35UH 8CH/SH EXT TEMP 16P SMD |
0 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0346N3LFTRCMC 35UG 4W EXT TEMP 16P SMD T/R |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LG11-0366N1LFTRCMC 36UH 4CH/SH EXT TEMP 16P SMD |
0 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 450mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW5ATH231TQ2LCMC 2.5A 2LN 230OHM SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 230 Ohms @ 100 MHz | - | 2.5A | 27mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACMP-1566-301-TCMC 13A 2LN 300 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 13A | 5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-152-TCMC 5A 2LN 1.5K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.5 kOhms @ 100 MHz | - | 5A | 23mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-701-TCMC 10A 2LN 700 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-551-TCMC 10A 2LN 550 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-501-TCMC 10A 2LN 500 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 10A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-601-TCMC 10A 2LN 600 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 600 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN5-300JBCMC 25UH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 µH @ 100 kHz | 1A | 80mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
