Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
C20530A-233CMC 23.5mH 36mOhm 5.5 Amp Max. |
16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 23.5 mH @ 10 kHz | 5.5A | 36mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-453CMC 45mH 85mOhm 3.6 Amp Max. |
16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 45 mH @ 10 kHz | 3.6A | 85mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-653CMC 65mH 138mOhm 2.8 Amp Max. |
16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 65 mH @ 10 kHz | 2.8A | 138mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

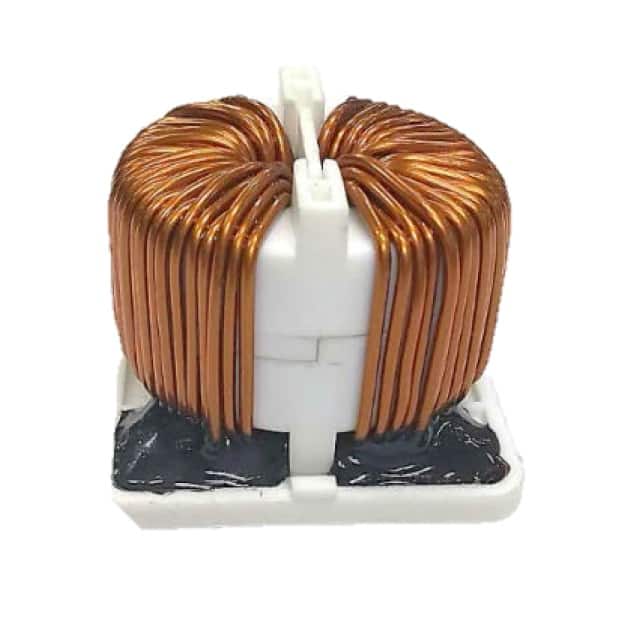

C301369A-752NU7.5mH, 30%, 32.5mOhm, 7.0A Max. |
12 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 1 kHz | 7A | 32.5mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
C301369A-103NU10.0mH, 30%, 44.0mOhm, 6.0A Max |
12 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 6A | 44mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
C301369A-532NU5.3mH, 30%, 27.0mOhm, 7.6A Max. |
12 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.3 mH @ 1 kHz | 7.6A | 27mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
C20200-187,300uH, 32mOhm, 9.3Amp Max. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-202,400uH, 8mOhm, 17Amp Max. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-211,000uH, 7mOhm, 20Amp Max. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-23600uH, 3.6mOhm 25Amp Max. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 600 µH @ 1 kHz | 25A | 3.6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C20200-243.0mH, 13.0A Rated. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 3 mH @ 1 kHz | 13A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C301306-672NHF6.7mH, 35mOhm, 7.5A Rated. |
9 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.7 mH @ 10 kHz | 7.5A | 35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-202NHF2.0mH, 30%, 8.0mOhm, 16A Rated. |
9 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 16A | 8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-172NHF1.7mH, 30%, 6.5mOhm, 18A Rated |
9 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 18A | 6.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ACM2012-201-2P-T002CMC 350MA 2LN 200 OHM SMD |
20 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
IP3319CX6,135CMC 2LN SMD ESD |
0 |
|
Datasheet |
6-UFBGA, WLCSP | Signal Line | 2 | - | - | - | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
MCZ1210AH301CPTA0GCMC 100MA 2LN 300 OHM SMD |
0 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 100mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SRF2012A-801YCMC 300MA 2LN 800OHM SMD AECQ200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 800 Ohms @ 100 MHz | - | 300mA | 880mOhm | 50V | - | -55°C ~ 125°C | - | - | - | - | - |
|
ACP3225-501-2P-T000CMC 2A 2LN 500 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 2A | 40mOhm (Typ) | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM4520V-901-2P-T00CMC 1.2A 2LN 900OHM SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 900 Ohms @ 100 MHz | - | 1.2A | 60mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
