Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FL2D-A2-2022MH 2 LINE COMMON MODE CHOKE THR |
60 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 12A | 145mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-50-102COMMON MODE FILTER 1000H 5A 30M |
92 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 5A | 30mOhm (Typ) | 2000V (2kV) | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-80-102COMMON MODE FILTER 1000H 8A 30M |
97 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 8A | 30mOhm (Typ) | 2000V (2kV) | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
SN8S-300JACMC 26UH 2A 2LN TH |
81 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 26 µH @ 100 kHz | 2A | 42mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NH-08325CMC 32.5MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 32.5 mH @ 10 kHz | 800mA | 470mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

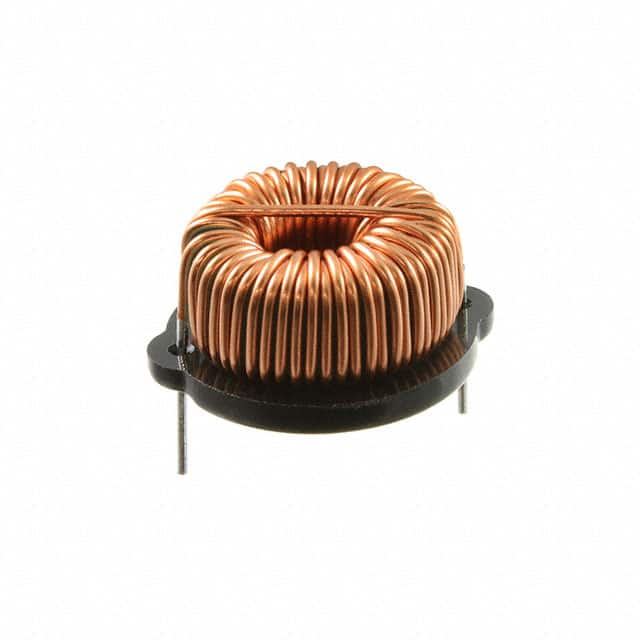

SN8S-50P2NMC 72.0UH 2.0A 0.0750 OHM TH |
79 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 2A | 75mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NHS-12135CMC 13.5MH 1.2A 2LN TH |
68 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 13.5 mH @ 10 kHz | 1.2A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CMF23H-393121-BCMC 39MH 1.2A 2LN TH |
65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1.2A | 766mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-D0-0404H 2 LINE COMMON MODE CHOKE THRO |
48 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 µH @ 1 kHz | 40A | 2mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SSR21NHS-M12220CMC 22MH 1.2A 2LN TH |
38 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.2A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-18054CMC 5.4MH 1.8A 2LN TH |
96 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.4 mH @ 10 kHz | 1.8A | 220mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-R05910CMC 91MH 500MA 2LN TH |
91 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 91 mH @ 10 kHz | 500mA | 1.88Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
MSD7342-822MLCFIXED IND 8.2UH 2.03A 75MOHM SM |
40 |
|
Datasheet |
Nonstandard | - | 2 | - | 8.2 µH @ 100 kHz | 2.03A | 75mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
CPSQ1515L-203CMC 1.3A 2LN 52K OHM TH |
54 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | 52 kOhms @ 650 kHz | 20 mH @ 1 kHz | 1.3A | 250mOhm | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CPSQ1515S-203CMC 1.3A 2LN 52K OHM TH |
29 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 52 kOhms @ 650 kHz | 20 mH @ 1 kHz | 1.3A | 250mOhm | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CPSQ1918S-502CMC 4.5A 2LN 10K OHM TH |
50 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 10 kOhms @ 1 MHz | 5 mH @ 1 kHz | 4.5A | 55mOhm | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN12HP-2201NMC 20.0UH 10.0A 0.0130 OHM TH |
83 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
VSTCB1060R-402CMC 0.52A 2LN 7.9K OHM SMD |
100 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 7.9 kOhms @ 3.5 MHz | 4 mH @ 100 kHz | 520mA | 550mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
VSTCB1060R-302CMC 0.65A 2LN 7.6K OHM SMD |
100 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 7.6 kOhms @ 2 MHz | 3 mH @ 100 kHz | 650mA | 330mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
VSTCB1060R-502CMC 0.35A 2LN 14K OHM SMD |
100 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 14 kOhms @ 1.3 MHz | 5 mH @ 100 kHz | 350mA | 680mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
