Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR19XV-220-1R6A004JVCMC 100UH 22A 2LN TH AEC-Q200 |
79 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
DFK-25-0002CMC 2A 2LN TH |
60 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 2A | 250mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
|
C20200-151,200uH, 6mOhm, 16Amp Max. |
48 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C20200-0930,000uH, 330mOhm, 2.3Amp Max. |
48 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C201388A-501Nanocrystal 0.50mH 11.0mOhm 5.8A |
48 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 10 kHz | 5.8A | 11mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
C301313A-203NHF20.0mH, 370mOhm, 1.6A Irms. |
22 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1.6A | 370mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20200-142,500uH, 11mOhm, 12.5Amp Max. |
16 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-135,000uH, 22mOhm, 8.9Amp Max. |
16 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-22500uH, 5mOhm 14Amp Max. |
16 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 500 µH @ 1 kHz | 14A | 5mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-1112,000uH, 110mOhm, 4Amp Max. |
16 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
DSF-28-0002CMC 2LN TH |
40 |
|
Datasheet |
Nonstandard | - | 2 | - | - | - | - | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201388A-502Nanocrystal 5.0mH 66.0mOhm 2.4A |
20 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2.4A | 66mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

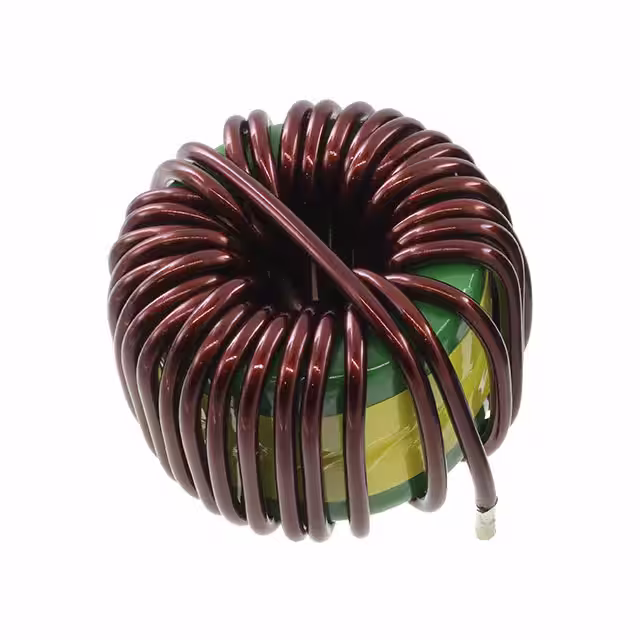

SN20P-120HNMC 120.0UH 20.0A 0.0180 OHM TH |
14 |
|
Datasheet |
- | Power Line | 2 | - | 120 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCT25XV-150-1R6A010JVCMC 800UH 15A 2LN TH AEC-Q200 |
70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 100 kHz | 15A | 4.62mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-130-1R5A012JVCMC 1.15MH 13A 2LN TH AEC-Q200 |
68 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.15 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-110-1R4A013JVCMC 1.35MH 11A 2LN TH AEC-Q200 |
68 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.72mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-110-1R4A013JHCMC 1.35MH 11A 2LN TH AEC-Q200 |
60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-080-1R2A018JHCMC 4MH 8A 2LN TH AEC-Q200 |
58 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 8A | 13.5mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-080-1R3A026JVCMC 4.15MH 8A 2LN TH AEC-Q200 |
60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.15 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-060-1R1A036JVCMC 7.9MH 6A 2LN TH AEC-Q200 |
56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 6A | 27.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
