Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RV8541-50-S02RV COMMON MODE CHOKE, NANO, FOUR |
40 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | - | 230 µH @ 100 kHz | 50A | 1mOhm | 1000V (1kV) | 530V | -40°C ~ 125°C | - | UR | - | - | - |
|
744837002460CMC 200UH 46A 3LN TH |
11 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 200 µH @ 10 kHz | 46A | 1.6mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744837018220CMC 1.8MH 22A 3LN TH |
6 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.8 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

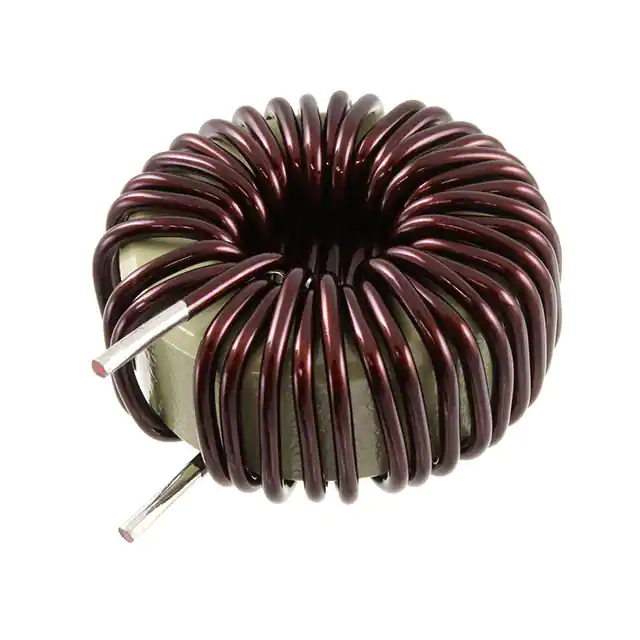

PHBC24W-2R4A0174VCMC 174UH 20A 2LN TH |
16 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 174 µH @ 100 kHz | 20A | 11.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF56X-400-S2R4B009JHIND CMC 1.72MH 40A 1.84MOHM |
23 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1.72 mH @ 100 kHz | 40A | 1.84mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
3-143-899DKUH-1 COMP.CHOKE 2PH 50A 24MH |
9 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 50A | 2.5mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
3-143-900DKUH-1 COMP.CHOKE 2PH 64A 14MH |
10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 64A | 1.4mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
3-143-902DKUH-1 COMP.CHOKE 2PH 85A 11MH |
10 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 85A | 0.9mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
3-143-903DKUH-1 COMP.CHOKE 2PH 100A 7.0MH |
4 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 100A | 0.35mOhm | 800V | 250V | -40°C ~ 100°C | - | CE, UKCA | - | - | - |
|
|
WCM 2012F2SF-361T032 LINE COMMON MODE CHOKE SURFACE |
399 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
RGCMF1210900H3TCMC 300MA 2LN 90 OHM SMD |
283 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
WCM 3216F2SF-102T022 LINE COMMON MODE CHOKE SURFACE |
191 |
|
Datasheet |
1206 (3216 Metric) | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 4532F2SF-601T25-HI2 LINE COMMON MODE CHOKE SURFACE |
500 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 2.5A | 60mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACM 4532F2WV-201T01-D200 UH @ 100 KHZ 2 LINE COMMON M |
610 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 100mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-101T02-D200MA @ 100 KHZ 2 LINE COMMON M |
1,442 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 200mA | - | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-110T03-D11 UH @ 100 KHZ 2 LINE COMMON MO |
967 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 360mA | 600mOhm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-510T02-D51 UH @ 100 KHZ 2 LINE COMMON MO |
916 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACM 4532F2NV-220T03-D22 UH @ 100 KHZ 2 LINE COMMON MO |
750 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 310mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
WCM 4532F2SF-901T23-HI2 LINE COMMON MODE CHOKE SURFACE |
1,125 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 100 MHz | - | 2.3A | 70mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
WCM 4532F2SF-142T20-HI2.0A LINE COMMON MODE CHOKE SUR |
672 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 2A | - | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
