Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR29XV-120-1R6A017JVCMC 1.76MH 12A 2LN TH AEC-Q200 |
50 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.76 mH @ 100 kHz | 12A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-110-1R5A019JVCMC 1.21MH 11A 2LN TH AEC-Q200 |
60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.21 mH @ 100 kHz | 11A | 8mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

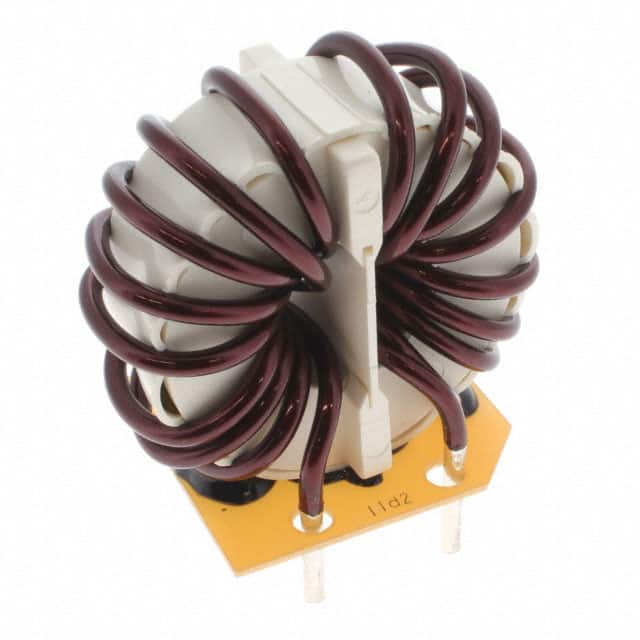

SCR38-200-2R3A010JCMC 1MH 20A 2LN TH |
54 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 20A | 3.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCT25XV-130-1R5A012JHCMC 1.15MH 13A 2LN TH AEC-Q200 |
57 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.15 mH @ 100 kHz | 13A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

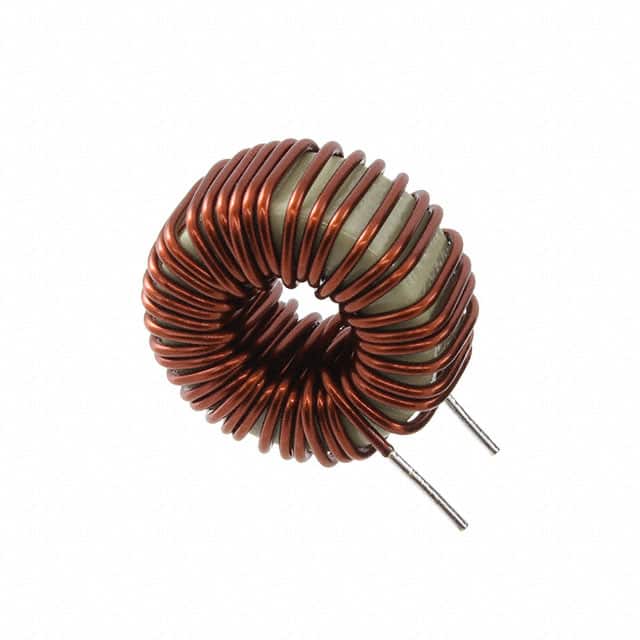

PHBC14-1R2A0120VCMC 120UH 8A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 120 µH @ 100 kHz | 8A | 29.9mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-602CMC 6.0mH 6.2mOhm 16 Amp Max. |
14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 16A | 6.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20530A-103CMC 10.5mH 12mOhm 11 Amp Max. |
14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10.5 mH @ 10 kHz | 11A | 12mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
AMF48-1.5NZCMC 2LN TH INDUSTRIAL |
10 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | 36V | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
C20200-1650,000uH, 450mOhm, 2.3Amp Max. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 50 mH @ 1 kHz | 2.3A | 450mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-194,000uH, 12mOhm, 14.5Amp Max. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-1736,000uH, 300mOhm, 2.9Amp Max. |
9 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
AMF24-2NZCMC 2LN TH INDUSTRIAL |
10 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | 18V | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
C301306-542NHF5.4mH, 30%, 21mOhm, 10A Rated. |
8 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 10 kHz | 10A | 21mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RI111PCCMC 6A 2LN TH |
16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 6A (Typ) | 42mOhm (Typ) | - | 500V | -25°C ~ 110°C | - | - | - | - | - |
|
DKLL-0346-0804CMC 8A 3LN TH |
10 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 8A | 22mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKLP-0231-0720CMC 7A 2LN CHAS MNT |
3 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 7A | 62mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKLL-0331-0350CMC 3A 3LN TH |
2 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 3A | 260mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DKLP-0231-0460CMC 4A 2LN TH |
2 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 4A | 250mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKLP-0331-0430CMC 4A 3LN TH |
2 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 4A | 155mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
CMCC0805300MT-CTCMC 450MA 2LN 30 OHM SMD |
915 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 30 Ohms @ 100 MHz | - | 450mA | 200mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
