Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7446222002CMC 2.2MH 2A 2LN TH |
176 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SN12-500JCMC 100UH 5A 2LN TH |
214 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 5A | 45mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
AE3003CMC 100UH 300MA 2LN SMD AEC-Q200 |
1,966 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 300mA | 1.5Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82720S0182A020CMC 880UH 1.8A 2LN SMD |
182 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 880 µH @ 100 kHz | 1.8A | 90mOhm | 80V | 48V | - | - | - | - | - | - |
|

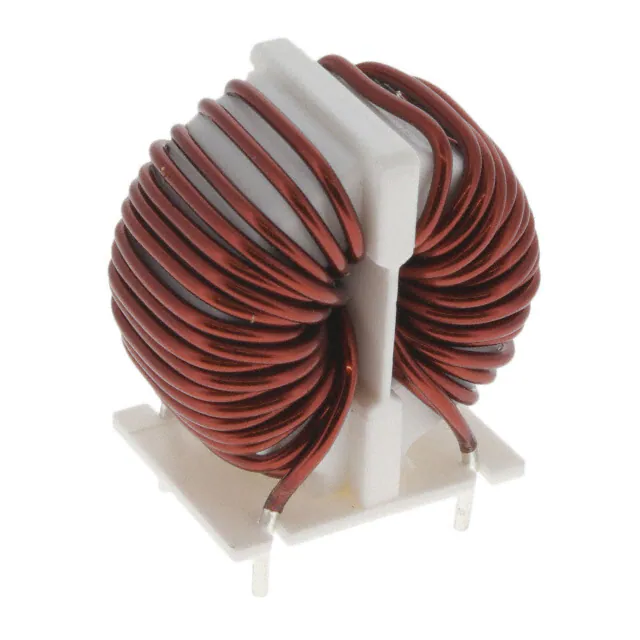

SC-10-18JCMC 1.6MH 10A 2LN TH |
128 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 1 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR-020-0R55A250JHCMC 25MH 2A 2LN TH |
316 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 2A | 200mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR-050-0R9A070JHCMC 7MH 5A 2LN TH |
203 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 47mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-06-382JHCMC 3.8MH 6A 2LN TH |
152 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-20JCMC 2MH 5A 2LN TH |
193 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-04-20JNCMC 2MH 4A 2LN TH |
154 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 4A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PH9407.204NLTCMC 17A 2LN 1.08K OHM SMD |
393 |
|
Datasheet |
Nonstandard | - | 2 | 1.08 kOhms @ 1.79 MHz | - | 17A | 3.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SC-05-492JHCMC 4.9MH 5A 2LN TH |
193 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.9 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-05-812JHCMC 8.1MH 5A 2LN TH |
166 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8.1 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

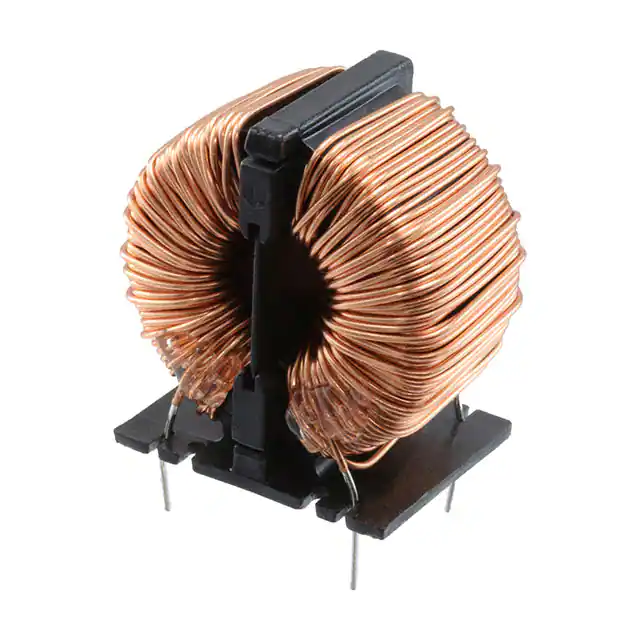

SC-02-300JCMC 30MH 2A 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 2A | 300mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724B2202N001CMC 6.8MH 2A 2LN TH |
290 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 170mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PE-65854NLCMC 4LN SMD |
657 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | - | - | 400mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
PA5141.405NLTCMC 22A 2LN 1.55K OHM SMD |
153 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.55 kOhms @ 2.1 MHz | - | 22A | 2.9mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

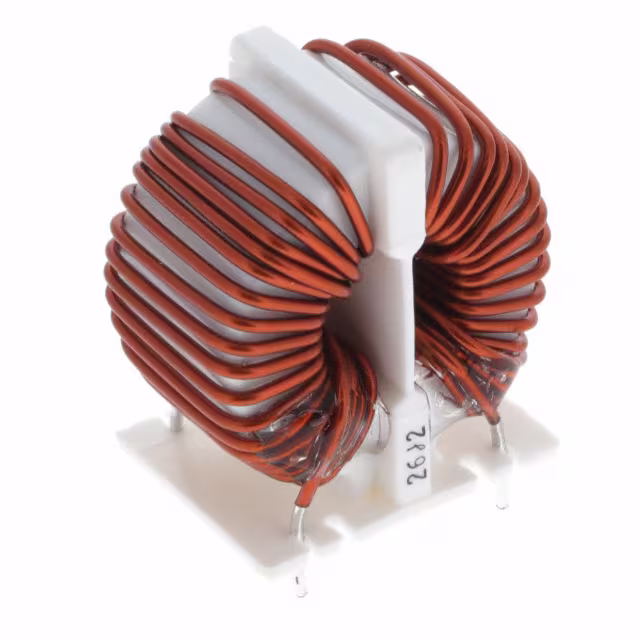

SC-07-30JMCMC 3MH 7A 2LN TH |
124 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 7A | 39mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-10-D05JCMC 50UH 10A 2LN TH |
112 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 10A | 16mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SCR-060-0R9A040JHCMC 4MH 6A 2LN TH |
165 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 6A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
