Common Mode Chokes

Mfr. Part #	Availability	Quantity	Datasheet	Package/Case	Filter Type	Number of Lines	Impedance @ Frequency	Current Rating (Max)	DC Resistance (DCR) (Max)	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature	Ratings	Approval Agency	Features	Mounting Type	Size / Dimension	Height (Max)

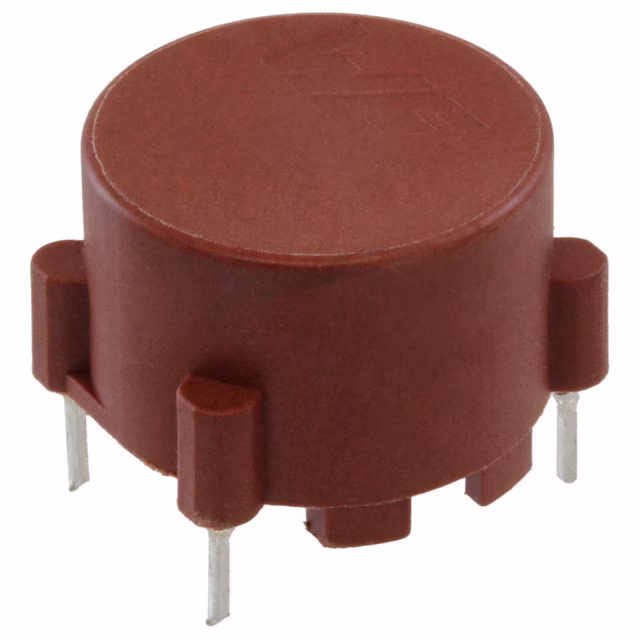

7446620015 CMC 15MH 500MA 2LN TH Würth Elektronik	133	RFQ	Datasheet	Horizontal, 4 PC Pin	Power Line	2	-	15 mH @ 10 kHz	500mA	830mOhm	-	250V	-40°C ~ 125°C	-	-	-	-	-
7446620027 CMC 27MH 400MA 2LN TH Würth Elektronik	113	RFQ	Datasheet	Horizontal, 4 PC Pin	Power Line	2	-	27 mH @ 10 kHz	400mA	1.2Ohm	-	250V	-40°C ~ 125°C	-	-	-	-	-
SC-03-85J CMC 8.5MH 3A 2LN TH KEMET	240	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	8.5 mH @ 10 kHz	3A	110mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
SC-05-203 CMC 2MH 5A 2LN TH KEMET	169	RFQ	Datasheet	Horizontal, No Base, 4 PC Pin	Power Line	2	-	2 mH @ 100 kHz	5A	70mOhm	250V	250V	-40°C ~ 105°C	-	-	-	-	-
B82721S0322A010 CMC 220UH 3.2A 2LN SMD EPCOS - TDK Electronics	133	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	220 µH @ 100 kHz	3.2A	49mOhm	80V	48V	-	-	-	-	-	-
SC22-025-290J CMC 29MH 2.5A 2LN TH KEMET	105	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	29 mH @ 10 kHz	2.5A	250mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-

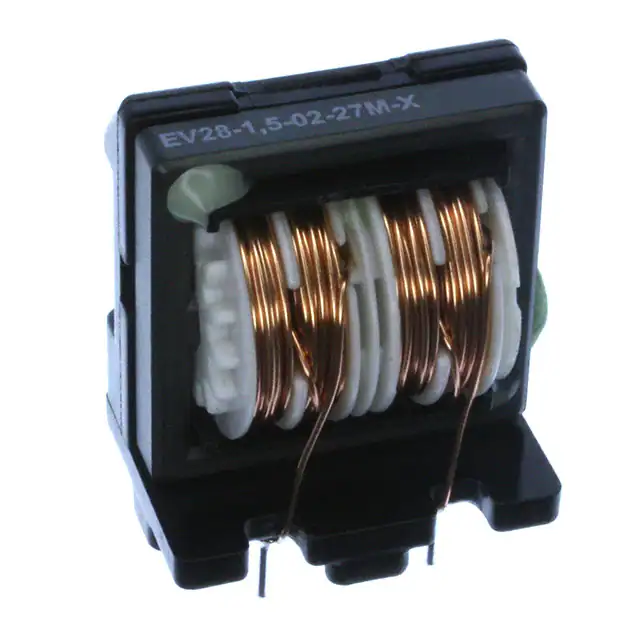

EV28-1.5-02-27M-X CMC 27MH 1.5A 2LN TH Schaffner EMC Inc.	400	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	27 mH @ 10 kHz	1.5A	287mOhm	-	250V	-25°C ~ 100°C	-	-	-	-	-
SC-20-01J-A CMC 150UH 20A 2LN TH KEMET	162	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	150 µH @ 1 kHz	20A	4mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
750315739 CMC 2.5MH 760MA 2LN SMD Würth Elektronik	758	RFQ	Datasheet	Horizontal, 4 Gull Wing	Power Line	2	-	2.5 mH @ 10 kHz	760mA	620mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	-	-
EV28-5.0-02-1M1 CMC 1.1MH 5A 2LN TH Schaffner EMC Inc.	496	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	1.1 mH @ 400 Hz	5A	27mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	-	-
SC-05-E06H CMC 600UH 5A 2LN TH KEMET	196	RFQ	Datasheet	Horizontal, No Base, 4 PC Pin	Power Line	2	-	600 µH @ 10 kHz	5A	17.5mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
SC-02-30GJ CMC 3MH 2A 2LN TH KEMET	238	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	3 mH @ 100 kHz	2A	100mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
B82724J2103U040 CMC 500UH 10A 2LN TH EPCOS - TDK Electronics	478	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	500 µH @ 100 kHz	10A	9mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	-	-

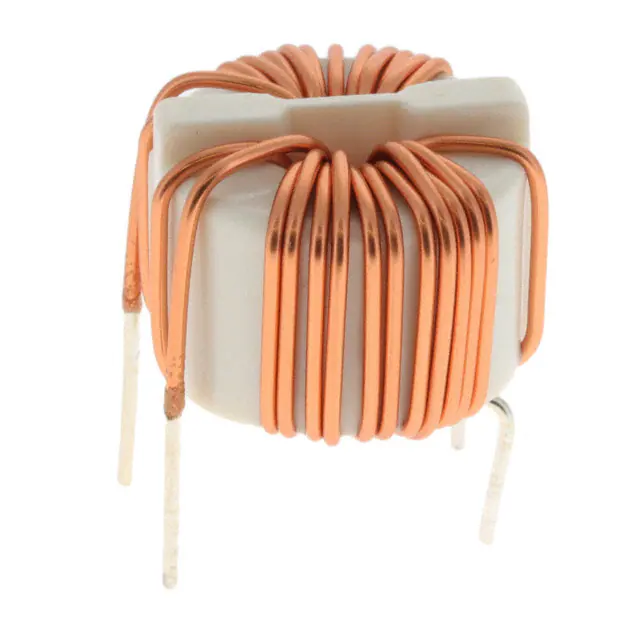

SC-06-E200H CMC 2MH 6A 2LN TH KEMET	280	RFQ	Datasheet	Horizontal, No Base, 4 PC Pin	Power Line	2	-	2 mH @ 10 kHz	6A	27mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
HHBC12-1R0A0051V CMC 51UH 5A 2LN TH KEMET	162	RFQ	Datasheet	Vertical, No Base, 2 PC Pin	-	2	-	51 µH @ 100 kHz	5A	28mOhm	-	-	-40°C ~ 125°C	-	-	-	-	-
SC22-04-100J CMC 10MH 4A 2LN TH KEMET	124	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	10 mH @ 10 kHz	4A	71mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
SC-05-E100JKH CMC 10MH 5A 2LN TH KEMET	132	RFQ	Datasheet	Horizontal, 4 PC Pin	Power Line	2	-	10 mH @ 10 kHz	5A	-	250V	250V	-40°C ~ 120°C	-	-	-	-	-

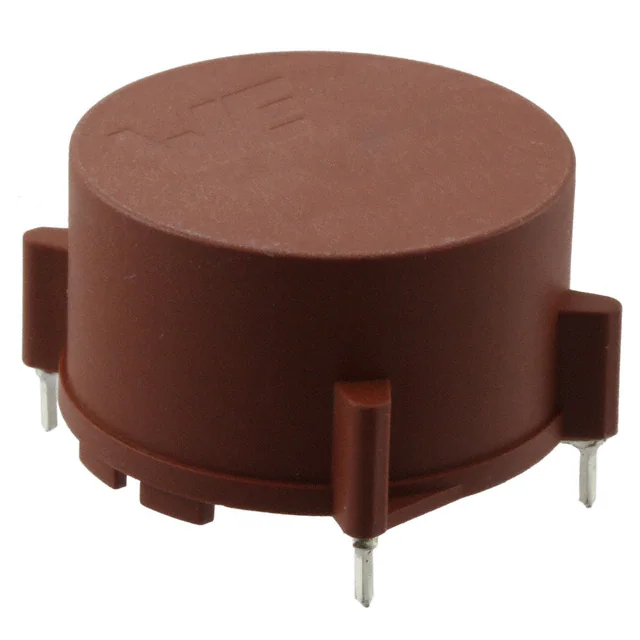

7446721027 CMC 27MH 600MA 2LN TH Würth Elektronik	134	RFQ	Datasheet	Horizontal, 4 PC Pin	Power Line	2	-	27 mH @ 10 kHz	600mA	700mOhm	-	250V	-40°C ~ 125°C	-	-	-	-	-
HHBC12-1R0A0080V CMC 80UH 5A 2LN TH KEMET	0	RFQ	Datasheet	Vertical, No Base, 2 PC Pin	-	2	-	80 µH @ 100 kHz	5A	35.6mOhm	-	-	-40°C ~ 125°C	-	-	-	-	-
SN12-400J CMC 64UH 5A 2LN TH KEMET	197	RFQ	Datasheet	Vertical, 2 PC Pin	Power Line	2	-	64 µH @ 100 kHz	5A	37mOhm	-	-	-25°C ~ 105°C	-	-	-	-	-

Total 8814 Record«Prev 1... 98 99 100 101102103 104 105...441 Next»
