Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR25XV-100-1R3A016JHCMC 3.1MH 10A 2LN TH AEC-Q200 |
240 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.1 mH @ 100 kHz | 10A | 12.27mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-350-2R4A003JHCMC 72UH 35A 2LN TH AEC-Q200 |
235 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-280-2R1A005JVCMC 200UH 28A 2LN TH AEC-Q200 |
187 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-080-1R2A018JVCMC 2.6MH 8A 2LN TH AEC-Q200 |
161 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 8A | 14.41mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-350-2R4A003JVCMC 72UH 35A 2LN TH AEC-Q200 |
157 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 35A | 0.69mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

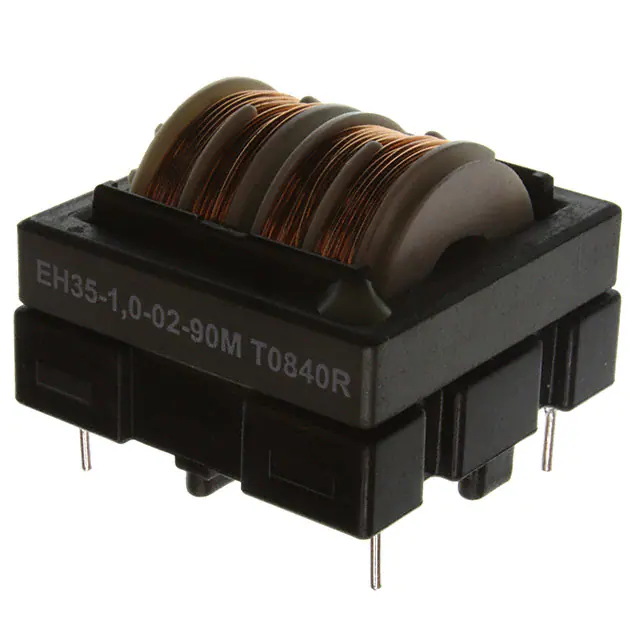

EH35-1.0-02-90MCMC 90MH 1A 2LN TH |
224 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 90 mH @ 400 Hz | 1A | 628mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SCR29XV-190-1R9A012JVCMC 880UH 19A 2LN TH AEC-Q200 |
166 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 880 µH @ 100 kHz | 19A | 3.28mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR19XV-080-1R0A011JHCMC 750UH 8A 2LN TH AEC-Q200 |
221 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-220-1R6A004JHCMC 60UH 22A 2LN TH AEC-Q200 |
152 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-080-1R0A011JVCMC 450UH 8A 2LN TH AEC-Q200 |
150 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-130-1R5A012JVCMC 3.5MH 13A 2LN TH AEC-Q200 |
252 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

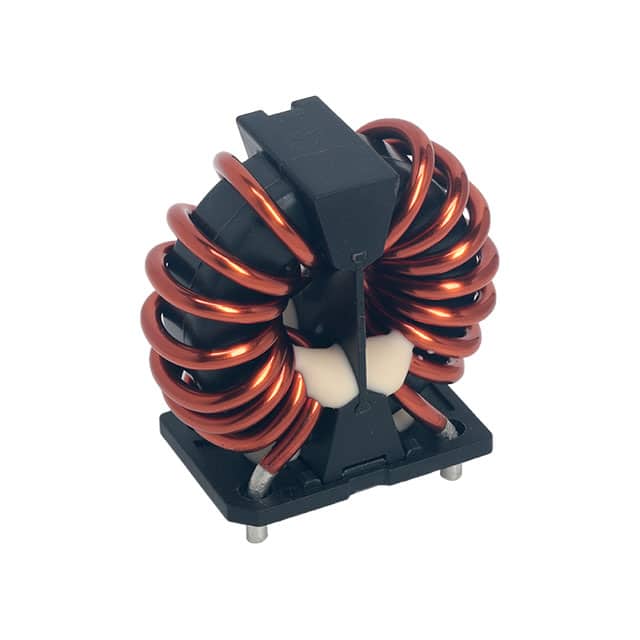

SCT29XV-180-1R8A013JVCMC 560UH 18A 2LN TH AEC-Q200 |
180 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 560 µH @ 100 kHz | 18A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-210-2R1A010JVCMC 330UH 21A 2LN TH AEC-Q200 |
152 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 21A | 2.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-120-1R6A017JVCMC 960UH 12A 2LN TH AEC-Q200 |
150 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 960 µH @ 100 kHz | 12A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

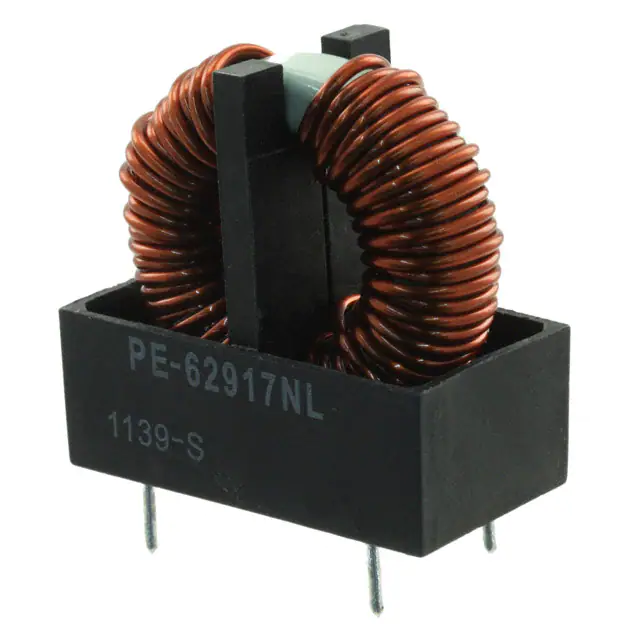

PE-62917NLCMC 2MH 7.5A 2LN TH |
387 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 7.5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCT19XV-150-1R3A006JVCMC 134UH 15A 2LN TH AEC-Q200 |
320 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 134 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-080-1R0A011JHCMC 450UH 8A 2LN TH AEC-Q200 |
184 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-190-1R5A005JHCMC 300UH 19A 2LN TH AEC-Q200 |
121 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 19A | 1.95mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
8109-RCCMC 30MH 2.3A 2LN TH |
467 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SC-18-05JCMC 500UH 18A 2LN TH |
132 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 18A | 7mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
