Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA73F2A10KBTDRA73F 2A 10K 0.1% 5K RL |
3,396 |
|
Datasheet |
RA73 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 1W | Thin Film | - | 25ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.023" (0.58mm) | 2 | - |
|
CHP2512AFX-10R0ELFRESHIGHPOWERA 2512 10R 1% 3W TC1 |
20,876 |
|
Datasheet |
CHP-A | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 3W | Thick Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.252" L x 0.122" W (6.40mm x 3.10mm) | 0.051" (1.30mm) | 2 | - |
|
PATT0603E1002BGT1RES SMD 10K OHM 0.1% 0.15W 0603 |
3,532 |
|
Datasheet |
PATT | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 0.15W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 250°C | AEC-Q200 | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.018" (0.46mm) | 2 | - |
|
CST0612-FC-R002ERES 0.002 OHM 1% 1W 0612 |
4,048 |
|
Datasheet |
CST | Nonstandard | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±200ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0612 | 0.120" L x 0.065" W (3.05mm x 1.65mm) | 0.033" (0.85mm) | 4 | - |
|
PF0603FRE7T0R01ZRES 0.01 OHM 1% 0.3W 0603 |
23,517 |
|
Datasheet |
PF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 0.3W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.030" (0.75mm) | 2 | - |
.jpg)
|
PA2512FKE7T0U75ERES 0.00075 OHM 1% 3W 2512 |
555 |
|
Datasheet |
PA_E | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 0.75 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.88mm) | 2 | - |
|
TLR3A30DR0015FTDGRES 0.0015 OHM 1% 3W 2512 |
11,935 |
|
Datasheet |
TLR, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1.5 mOhms | ±1% | 3W | Metal Foil | Current Sense | ±50ppm/°C | -55°C ~ 170°C | - | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.024" (0.60mm) | 2 | - |
|
|
TLR3A30ER0005FTDGRES SMD 500 UOHM 1% 3W 2512 |
10,407 |
|
Datasheet |
TLR, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 3W | Metal Foil | Current Sense | ±100ppm/°C | -55°C ~ 170°C | - | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.057" (1.45mm) | 2 | - |
|
CSS2H-2512K-2L00FRES 0.002 OHM 1% 5W 2512 |
10,460 |
|
Datasheet |
CSS2H-2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.052" (1.32mm) | 2 | - |
|
CSS4J-4026R-1L00FRES 0.001 OHM 1% 4W 4026 |
3,104 |
|
Datasheet |
CSS4J-4026 | Nonstandard | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 4W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 4026 | 0.397" L x 0.260" W (10.06mm x 6.60mm) | 0.045" (1.15mm) | 4 | - |
, J-Lead.JPG)
|

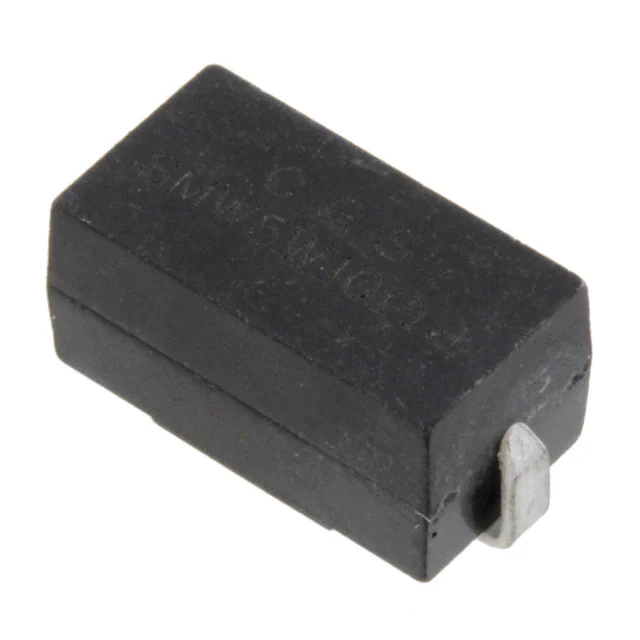

SMW51R0JTRES SMD 1 OHM 5% 5W 5329 |
113,169 |
|
Datasheet |
SM, CGS | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
|
|
RN73C1J1K0BTGRES SMD 1K OHM 0.1% 1/16W 0603 |
13,879 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Strip | Active | 1 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
|
SMW547RJTRES SMD 47 OHM 5% 5W 5329 |
4,275 |
|
Datasheet |
SM, CGS | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 47 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
|
RN73C1J100RBTGRES SMD 100 OHM 0.1% 1/16W 0603 |
1,657 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Strip | Active | 100 Ohms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
|
SMW5200RJTRES SMD 200 OHM 5% 5W 5329 |
1,093 |
|
Datasheet |
SM, CGS | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 200 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
|
|
SMW5120RJTRES SMD 120 OHM 5% 5W 5329 |
176 |
|
Datasheet |
SM, CGS | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 120 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
|
|
3503G2B75RFTDRES 75 OHM 1% 2W 1206 |
9,285 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 75 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
CSS2H-3920R-1L00FRES 0.001 OHM 1% 8W 3920 |
11,705 |
|
Datasheet |
CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 8W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.045" (1.15mm) | 2 | - |
|
CSS2H-3920R-L200FRES SMD 200 UOHM 1% 12W 3920 |
8,946 |
|
Datasheet |
CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 0.2 mOhms | ±1% | 12W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.107" (2.73mm) | 2 | - |
|
|
GMR100HTBFER015RES 0.015 OHM 1% 7W 2512 |
11,901 |
|
Datasheet |
GMR | 2512 (6432 Metric) | Tape & Reel (TR) | Not For New Designs | 15 mOhms | ±1% | 7W | Metal Element | Automotive AEC-Q200 | ±20ppm/°C | -65°C ~ 170°C | AEC-Q200 | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.022" (0.55mm) | 2 | - |
