Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN73C2A20KBTDFRES SMD 20K OHM 0.1% 1/10W 0805 |
26,317 |
|
Datasheet |
RN73, Holsworthy | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 20 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
352210RJTRES SMD 10 OHM 5% 3W 2512 |
7,623 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
-PS-Series.jpg)
|
PS0612FKG070R01LRES 0.01 OHM 1% 1W 1206 |
5,286 |
|
Datasheet |
PS | Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 1W | Metal Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 1206 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.031" (0.80mm) | 4 | - |
, J-Lead.JPG)
|

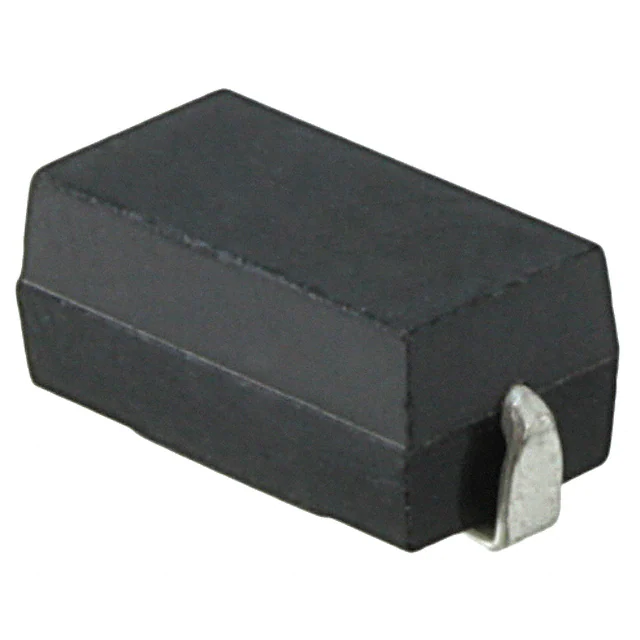

SMW322RJTRES SMD 22 OHM 5% 3W 4122 |
21,181 |
|
Datasheet |
SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 22 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW34R7JTRES SMD 4.7 OHM 5% 3W 4122 |
19,861 |
|
Datasheet |
SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 4.7 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW3R22JTRES SMD 0.22 OHM 5% 3W 4122 |
11,655 |
|
Datasheet |
SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 220 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW310RJTRES SMD 10 OHM 5% 3W 4122 |
9,531 |
|
Datasheet |
SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW31R0JTRES SMD 1 OHM 5% 3W 4122 |
6,331 |
|
Datasheet |
SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW32R2JTRES SMD 2.2 OHM 5% 3W 4122 |
5,560 |
|
Datasheet |
SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 2.2 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
35222R2JTRES SMD 2.2 OHM 5% 3W 2512 |
235,305 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 2.2 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
35221R0JTRES SMD 1 OHM 5% 3W 2512 |
130,170 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
35224R7JTRES SMD 4.7 OHM 5% 3W 2512 |
47,114 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 4.7 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
35225R6JTRES SMD 5.6 OHM 5% 3W 2512 |
30,195 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 5.6 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
35228R2JTRES SMD 8.2 OHM 5% 3W 2512 |
10,410 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 8.2 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
35226R8JTRES SMD 6.8 OHM 5% 3W 2512 |
13,014 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 6.8 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
PMR100HZPFU5L00RES 0.005 OHM 1% 2W 2512 |
299,454 |
|
Datasheet |
PMR | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.022" (0.55mm) | 2 | - |
|
|
PMR100HZPFU10L0RES 0.01 OHM 1% 2W 2512 |
36,886 |
|
Datasheet |
PMR | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.019" (0.47mm) | 2 | - |
|
|
RLP73K3AR22JTERES 0.22 OHM 5% 2W 2512 |
19,195 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 220 mOhms | ±5% | 2W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.033" (0.84mm) | 2 | - |
.jpg)
|
CRS2512-FW-1R00ELFRES 1 OHM 1% 2W 2512 |
12,110 |
|
Datasheet |
CRS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 Ohms | ±1% | 2W | Thick Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.030" (0.75mm) | 2 | - |
|
PMR10EZPFV3L00RES 0.003 OHM 1% 1/2W 0805 |
124,078 |
|
Datasheet |
PMR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 3 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±150ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.022" (0.55mm) | 2 | - |
