Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PHP01206E1000BST5RES SMD 100 OHM 0.1% 1W 1206 |
3,124 |
|
Datasheet |
PHP | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
|

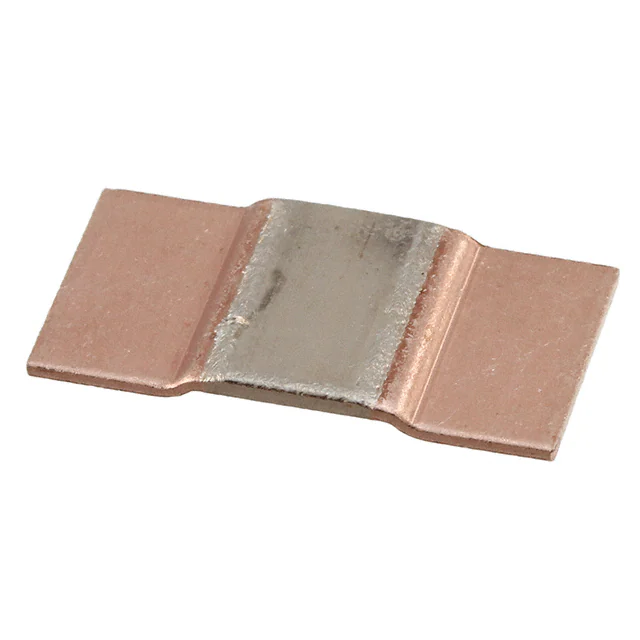

PSR500HTQFC0L20RES 0.0002 OHM 1% 15W 5931 |
10,855 |
|
Datasheet |
PSR | Nonstandard | Tape & Reel (TR) | Active | 0.2 mOhms | ±1% | 15W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +150ppm/°C | -65°C ~ 175°C | AEC-Q200 | 5931 | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.079" (2.00mm) | 2 | - |
|
|
PSR500HTQFH1L00RES 0.001 OHM 1% 10W 5931 |
2,784 |
|
Datasheet |
PSR | Nonstandard | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense | 0/ +75ppm/°C | -65°C ~ 175°C | AEC-Q200 | 5931 | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.059" (1.50mm) | 2 | - |
|
RH73W2A1GNTNRES SMD 1G OHM 30% 1/8W 0805 |
2,567 |
|
Datasheet |
RH73, CGS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 GOhms | ±30% | 0.125W, 1/8W | Thick Film | - | ±500ppm/°C | -55°C ~ 125°C | - | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.020" (0.50mm) | 2 | - |
.jpg)
|
M55342E06B100BRT5RES SMD 100K OHM 0.1% 0.15W 0705 |
2,541 |
|
Datasheet |
Military, MIL-PRF-55342, RM0705 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 100 kOhms | ±0.1% | 0.15W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 0705 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | R (0.01%) |
|
GMR320HJAAFD5L00RES 5M OHM 1% 10W 2817 |
1,114 |
|
Datasheet |
GMR | 2817 (7142 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 10W | Metal Element | Current Sense | 0/ +25ppm/°C | -65°C ~ 170°C | - | 2817 | 0.280" L x 0.165" W (7.10mm x 4.20mm) | 0.022" (0.55mm) | 2 | - |
|
|
RH73X2A10GNTNRES SMD 10G OHM 30% 1/8W 0805 |
657 |
|
Datasheet |
RH73, CGS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 GOhms | ±30% | 0.125W, 1/8W | Thick Film | - | ±1000ppm/°C | -55°C ~ 125°C | - | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.020" (0.50mm) | 2 | - |
|
PWR163S-25-50R0FRES SMD 50 OHM 1% 25W DPAK |
7,285 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tube | Active | 50 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|

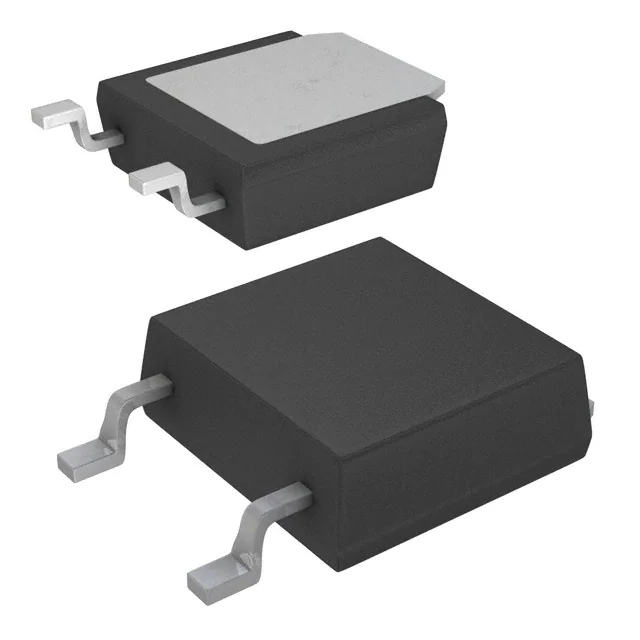

PWR163S-25-1002FRES SMD 10K OHM 1% 25W DPAK |
6,535 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tube | Active | 10 kOhms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
PWR263S-35-4R00FRES SMD 4 OHM 1% 35W D2PAK |
4,135 |
|
Datasheet |
PWR263S-35 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 4 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.177" (4.50mm) | 2 | - |
.jpg)
|
D55342E07B10B0RT5RES SMD 10K OHM 0.1% 1/4W 1206 |
983 |
|
Datasheet |
Military, MIL-PRF-55342, RM1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Military, Non-Inductive | ±25ppm/°C | -55°C ~ 150°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | R (0.01%) |
.jpg)
|
PLT0603Z2500AST5RES SMD 250 OHM 0.05% 0.15W 0603 |
3,057 |
|
Datasheet |
PLT | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 250 Ohms | ±0.05% | 0.15W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 0603 | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.020" (0.51mm) | 2 | - |
.jpg)
|
FC0402E10R0BTT0RES 10 OHM 0.1% 1/20W 0402 |
2,017 |
|
Datasheet |
FC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±0.1% | 0.05W, 1/20W | Thin Film | RF, High Frequency | ±25ppm/°C | -55°C ~ 155°C | - | 0402 | 0.042" L x 0.022" W (1.07mm x 0.56mm) | 0.015" (0.38mm) | 2 | - |
|
PHPA2512E10R0BST1THIN FILM RES SMD 10 OHM 0.1% 2. |
166 |
|
Datasheet |
PHPA | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±0.1% | 2.5W | Thin Film | Automotive AEC-Q200, High Power, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.259" L x 0.124" W (6.58mm x 3.15mm) | 0.020" (0.51mm) | 2 | - |
|
|
PLT0805Z5002AST5RES SMD 50K OHM 0.05% 1/4W 0805 |
2,939 |
|
Datasheet |
PLT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 50 kOhms | ±0.05% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | - |
|
|
PLT0805Z5001AST5RES SMD 5K OHM 0.05% 1/4W 0805 |
1,726 |
|
Datasheet |
PLT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 5 kOhms | ±0.05% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | - |
|
PLT0805Z1001AST5RES SMD 1K OHM 0.05% 1/4W 0805 |
1,428 |
|
Datasheet |
PLT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.05% | 0.25W, 1/4W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | - |
|
CH0603-100RJNTARES 100 OHM 5% 1/8W 0603 |
1,182 |
|
Datasheet |
CH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±5% | 0.125W, 1/8W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0603 | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.025" (0.63mm) | 2 | - |
|
|
CH0603-50RJNTARES 50 OHM 5% 1/8W 0603 |
696 |
|
Datasheet |
CH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 50 Ohms | ±5% | 0.125W, 1/8W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0603 | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.025" (0.63mm) | 2 | - |
|
CH0402-100RFNPTRES CH 0402 THIN FILM |
808 |
|
Datasheet |
CH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±1% | 0.05W, 1/20W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.025" (0.63mm) | 2 | - |
