Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

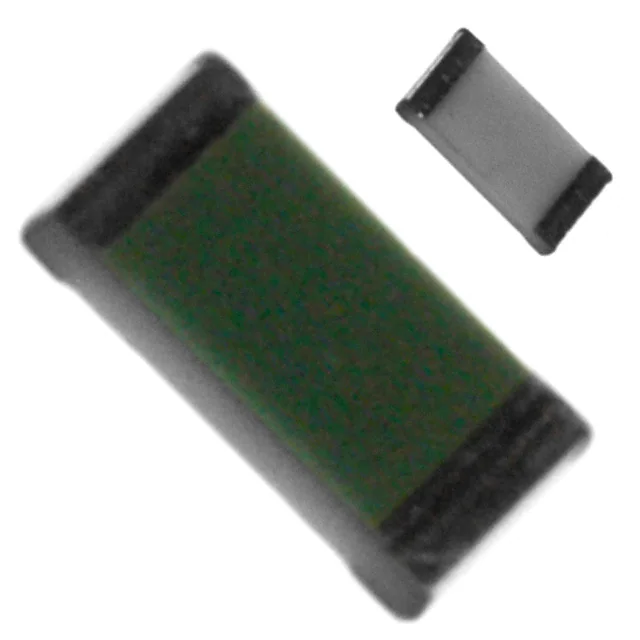

PLT1206Z5002AST5RES SMD 50K OHM 0.05% 0.4W 1206 |
1,146 |
|
Datasheet |
PLT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 50 kOhms | ±0.05% | 0.4W, 2/5W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
|
3504G3A1K0FTDFRES 1K OHM 1% 6W 2512 |
1,604 |
|
Datasheet |
3504 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±1% | 6W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.023" (0.58mm) | 2 | - |
|
PWR163S-25-30R0JERES SMD 30 OHM 5% 25W DPAK |
3,347 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 30 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-5R00JERES SMD 5 OHM 5% 25W DPAK |
1,599 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 5 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-10R0JERES SMD 10 OHM 5% 25W DPAK |
708 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-2R00FERES SMD 2 OHM 1% 25W DPAK |
22,113 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 2 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-5R00FERES SMD 5 OHM 1% 25W DPAK |
6,771 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 5 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-15R0FERES SMD 15 OHM 1% 25W DPAK |
3,278 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 15 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-1R00FERES SMD 1 OHM 1% 25W DPAK |
2,174 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 1 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-8R00FERES SMD 8 OHM 1% 25W DPAK |
1,617 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 8 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-4R00FERES SMD 4 OHM 1% 25W DPAK |
1,283 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 4 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-R500FERES 0.5 OHM 1% 25W DPAK |
2,332 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 500 mOhms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-10R0FERES SMD 10 OHM 1% 25W DPAK |
1,300 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-1R50FERES SMD 1.5 OHM 1% 25W DPAK |
1,249 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 1.5 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-25R0FERES SMD 25 OHM 1% 25W DPAK |
650 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 25 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-2000FERES SMD 200 OHM 1% 25W DPAK |
630 |
|
Datasheet |
PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 200 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
RU73X2A3K32LTDFRES 3.32 KOHM 0.01% 1/10W 0805 |
1,563 |
|
Datasheet |
RU73, Holsworthy | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 3.32 kOhms | ±0.01% | 0.1W, 1/10W | Thin Film | - | ±2ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
PWR263S-35-5R00FRES SMD 5 OHM 1% 35W D2PAK |
364 |
|
Datasheet |
PWR263S-35 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 5 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.177" (4.50mm) | 2 | - |
|
PWR263S-35-2R00FRES SMD 2 OHM 1% 35W D2PAK |
218 |
|
Datasheet |
PWR263S-35 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 2 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.177" (4.50mm) | 2 | - |
.jpg)
|
PHP02512E4990BST5RES SMD 499 OHM 0.1% 2.5W 2512 |
5,229 |
|
Datasheet |
PHP | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 499 Ohms | ±0.1% | 2.5W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 2512 | 0.259" L x 0.124" W (6.58mm x 3.15mm) | 0.033" (0.84mm) | 2 | - |
