Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPS0500DH1000JBRES CHAS MNT 100 OHM 5% 500W |
25 |
|
Datasheet |
RPS 500 | Box | Bulk | Active | 100 Ohms | ±5% | 500W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Pulse Withstanding | Aluminum Oxide | Flanges | 2.874" L x 2.362" W (73.00mm x 60.00mm) | 1.063" (27.00mm) | M4 Threaded | - | - | - |
|
|
RPS0500DH22R0JBRES CHAS MNT 22 OHM 5% 500W |
16 |
|
Datasheet |
RPS 500 | Box | Bulk | Active | 22 Ohms | ±5% | 500W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Pulse Withstanding | Aluminum Oxide | Flanges | 2.874" L x 2.362" W (73.00mm x 60.00mm) | 1.063" (27.00mm) | M4 Threaded | - | - | - |
|
CJH3000J39RJCJH 3000W 39R 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 39 Ohms | ±5% | 3000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH3000J33RJCJH 3000W 33R 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 33 Ohms | ±5% | 3000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH3000J47RJCJH 3000W 47R 5% LEAD |
3 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 47 Ohms | ±5% | 3000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 4.055" W (400.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
LPS0800H50R0FBSFERNICE FIXED RESISTORS |
17 |
|
Datasheet |
LPS 800 | Box | Box | Active | 50 Ohms | ±1% | 800W | Thick Film | ±150ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
CJH4000J18RJCJH 4000W 18R 5% LEAD |
7 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 18 Ohms | ±5% | 4000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 17.717" L x 4.055" W (450.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
|
CJH5000J39RJCJH 5000W 39R 5% LEAD |
7 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 39 Ohms | ±5% | 5000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 21.654" L x 4.055" W (550.00mm x 103.00mm) | 2.087" (53.00mm) | Wire Leads | - | - | - |
|
THS10330RJRES CHAS MNT 330 OHM 5% 10W |
97 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 330 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS1010KJRES CHAS MNT 10K OHM 5% 10W |
86 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 10 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS1050RJRES CHAS MNT 50 OHM 5% 10W |
69 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 50 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10150RJRES CHAS MNT 150 OHM 5% 10W |
66 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 150 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|

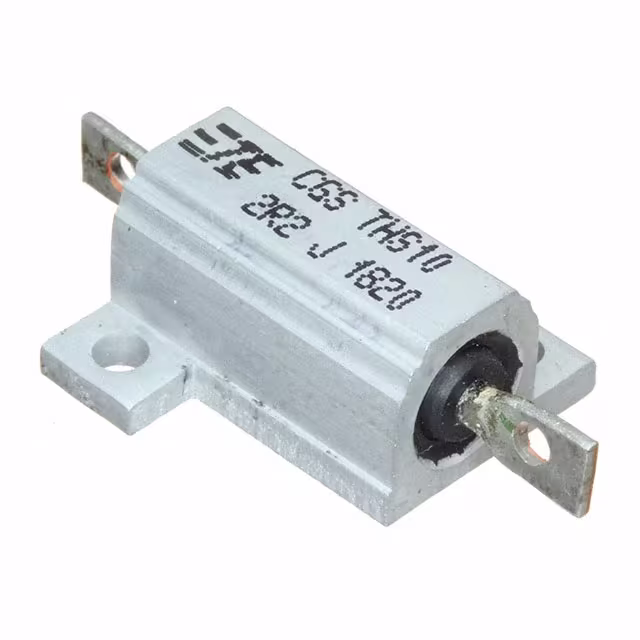

THS105K6JRES CHAS MNT 5.6K OHM 5% 10W |
51 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 5.6 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS101R2JRES CHAS MNT 1.2 OHM 5% 10W |
49 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 1.2 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS102R7JRES CHAS MNT 2.7 OHM 5% 10W |
45 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 2.7 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10R18JRES CHAS MNT 0.18 OHM 5% 10W |
35 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 180 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10560RJRES CHAS MNT 560 OHM 5% 10W |
35 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 560 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS101K5JRES CHAS MNT 1.5K OHM 5% 10W |
28 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 1.5 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS102R0JRES CHAS MNT 2 OHM 5% 10W |
27 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 2 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
HSA54K7JRES CHAS MNT 4.7K OHM 5% 10W |
54 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 4.7 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
