Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE1500B3R3JRES CHAS MNT 3.3 OHM 5% 1500W |
16 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 3.3 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1500B1R2JRES CHAS MNT 1.2 OHM 5% 1500W |
14 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.2 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|

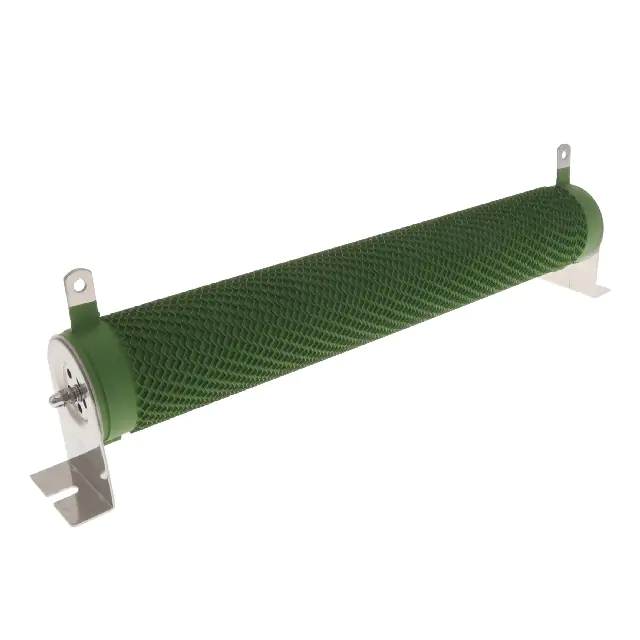

TE1500B6R8JRES CHAS MNT 6.8 OHM 5% 1500W |
14 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 6.8 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
LPS0600H50R0JBSFERNICE FIXED RESISTORS |
17 |
|
Datasheet |
LPS 600 | Box | Box | Active | 50 Ohms | ±5% | 600W | Thick Film | ±150ppm/°C | -55°C ~ 155°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
TE1500B2R2JRES CHAS MNT 2.2 OHM 5% 1500W |
8 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 2.2 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
TE1200B8R2JRES CHAS MNT 8.2 OHM 5% 1200W |
3 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 8.2 Ohms | ±5% | 1200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|

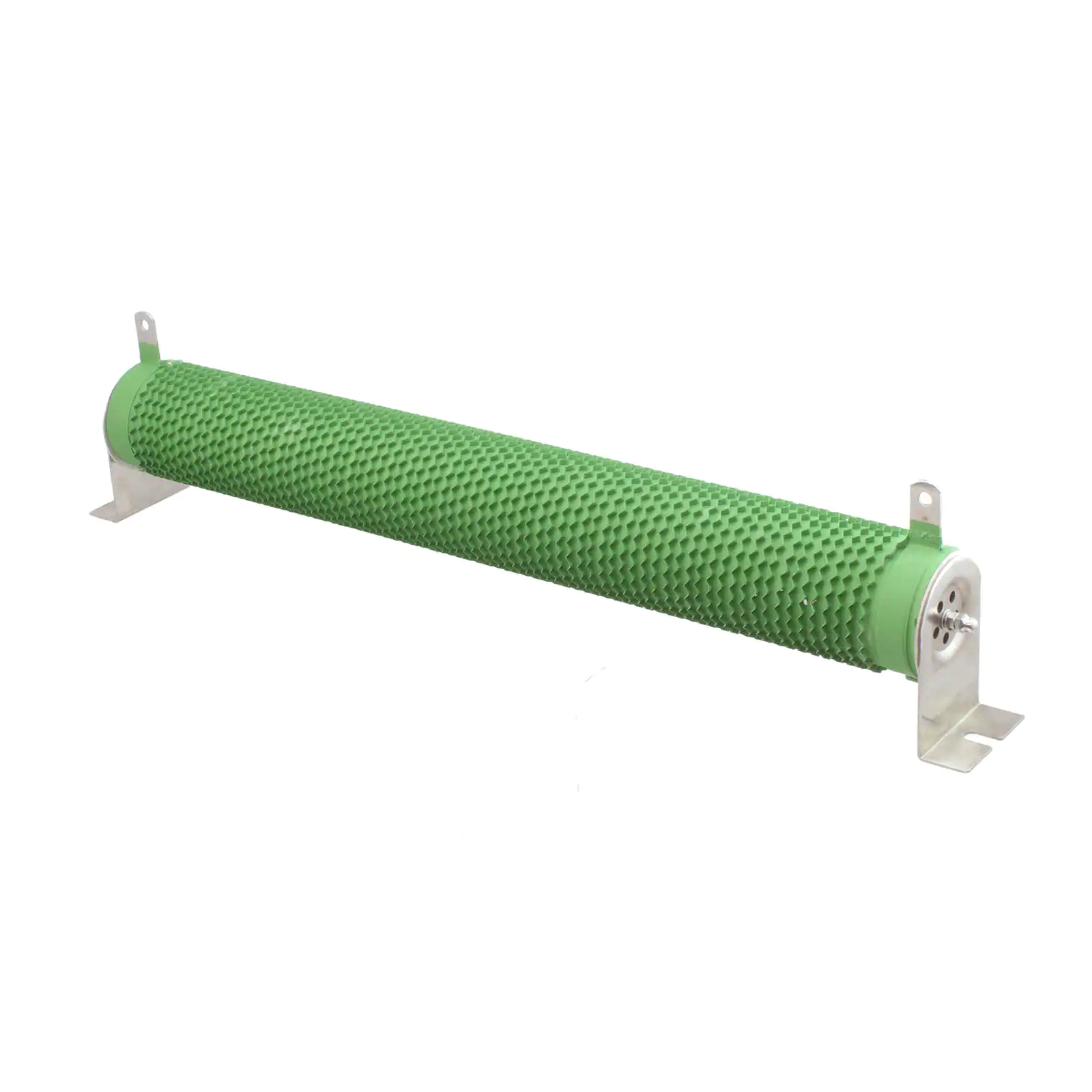

TE2000B1R5JRES CHAS MNT 1.5 OHM 5% 2000W |
20 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.5 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B1K0JRES CHAS MNT 1K OHM 5% 2000W |
19 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 kOhms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B47RJRES CHAS MNT 47 OHM 5% 2000W |
23 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 47 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2000B1R2JRES CHAS MNT 1.2 OHM 5% 2000W |
12 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.2 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B1R8JRES CHAS MNT 1.8 OHM 5% 2000W |
10 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.8 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B3R3JRES CHAS MNT 3.3 OHM 5% 2000W |
10 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 3.3 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2000B68RJRES CHAS MNT 68 OHM 5% 2000W |
17 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 68 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
TE2000B18RJRES CHAS MNT 18 OHM 5% 2000W |
18 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 18 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2000B22RJRES CHAS MNT 22 OHM 5% 2000W |
21 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 22 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
CJH1250J100RJCJH 1250W 100R 5% LEAD |
5 |
|
Datasheet |
CJH | Rectangular, Wire Leads | Box | Active | 100 Ohms | ±5% | 1250W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.638" W (400.00mm x 67.00mm) | 1.535" (39.00mm) | Wire Leads | - | - | - |
|
LPS0800H4R70JBRES CHAS MNT 4.7 OHM 5% 800W |
15 |
|
Datasheet |
LPS 800 | Box | Bulk | Active | 4.7 Ohms | ±5% | 800W | Thick Film | ±300ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
TE2500B18RJRES CHAS MNT 18 OHM 5% 2500W |
10 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 18 Ohms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
|
TE2500B1K5JRES CHAS MNT 1.5K OHM 5% 2500W |
5 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.5 kOhms | ±5% | 2500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 23.622" L (60.00mm x 600.00mm) | - | Solder Lugs | - | - | - |
|
RPS0500DL2R50JBSFERNICE FIXED RESISTORS |
8 |
|
Datasheet |
RPS 500 | Box | Box | Active | 2.5 Ohms | ±5% | 500W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Pulse Withstanding | Aluminum Oxide | Flanges | 2.874" L x 2.362" W (73.00mm x 60.00mm) | 1.063" (27.00mm) | M4 Threaded | - | - | - |
