Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSC100R50JRES CHAS MNT 0.5 OHM 5% 100W |
88 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 500 mOhms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC1004R0JRES CHAS MNT 4 OHM 5% 100W |
66 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 4 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC10060RJRES CHAS MNT 60 OHM 5% 100W |
38 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 60 Ohms | ±5% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
HSC7513RJRES CHAS MNT 13 OHM 5% 75W |
23 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 13 Ohms | ±5% | 75W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 1.929" L x 1.870" W (49.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
FVT20020E250R0JERES CHAS MNT 250 OHM 5% 225W |
66 |
|
Datasheet |
FVT | Radial, Tubular | Bulk | Active | 250 Ohms | ±5% | 225W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | - | Solder Lugs | - | - | - |
|
RCH50S22R00JS06RES CHAS MNT 22 OHM 5% 50W |
98 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bulk | Active | 22 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
HSC10020RFRES CHAS MNT 20 OHM 1% 100W |
92 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 20 Ohms | ±1% | 100W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.579" L x 1.870" W (65.50mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
HSC15068RJRES CHAS MNT 68 OHM 5% 150W |
99 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 68 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC150100RJRES CHAS MNT 100 OHM 5% 150W |
82 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 100 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC150240RJRES CHAS MNT 240 OHM 5% 150W |
60 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 240 Ohms | ±5% | 150W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC1503R3JRES CHAS MNT 3.3 OHM 5% 150W |
34 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.3 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC150125RJRES CHAS MNT 125 OHM 5% 150W |
9 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 125 Ohms | ±5% | 150W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC15033RJRES CHAS MNT 33 OHM 5% 150W |
7 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 33 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
HSC15022RJRES CHAS MNT 22 OHM 5% 150W |
50 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 22 Ohms | ±5% | 150W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.858" L x 1.870" W (98.00mm x 47.50mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
RCH50S1R000JS06SFERNICE FIXED RESISTORS |
39 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 1 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 0.610" W (47.80mm x 15.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
T50R0-250-12X250W (50 OHM) DC-4GHZ BEO FLANGE |
70 |
|
Datasheet |
T50R0-250-12X | Flat Box, Terminator | Tray | Active | 50 Ohms | ±5% | 250W | Thick Film | - | -55°C ~ 150°C | - | Ceramic | Flanges | 0.975" L x 0.375" W (24.76mm x 9.53mm) | 0.140" (3.56mm) | Tab | - | - | - |
|
|
ISOA100N14701JTISOA 100 N1 4K7 5% TUBE |
18 |
|
Datasheet |
ISOA | SOT-227-4 | Tube | Active | 4.7 kOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 150°C | Non-Inductive | Aluminum | Flanges | 1.504" L x 0.984" W (38.20mm x 25.00mm) | 0.480" (12.20mm) | M4 Threaded | - | - | - |
|
|
RCH50S15002FS06SFERNICE FIXED RESISTORS |
37 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 150 kOhms | ±1% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.161" W (47.80mm x 29.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50S10003FS06SFERNICE FIXED RESISTORS |
82 |
|
Datasheet |
RCH | Radial, Rectangular Case | Bag | Active | 1 MOhms | ±1% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 0.610" W (47.80mm x 15.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|

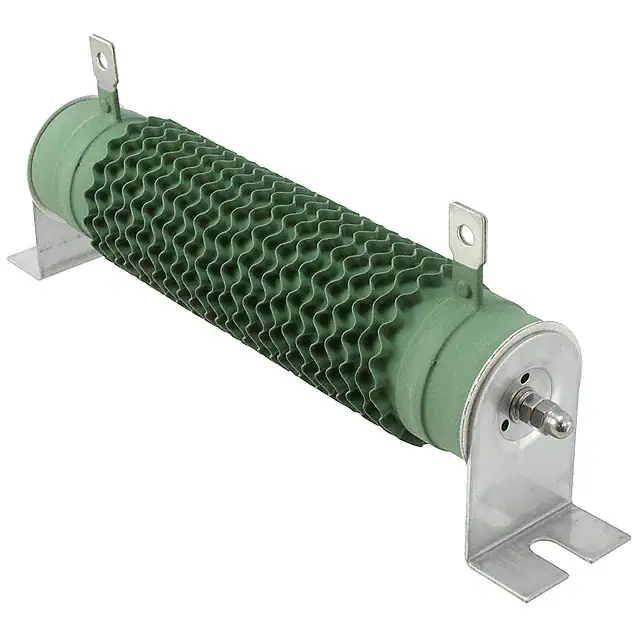

TE200B1R0JRES CHAS MNT 1 OHM 5% 200W |
21 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 Ohms | ±5% | 200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.575" Dia x 7.677" L (40.00mm x 195.00mm) | - | Solder Lugs | - | - | - |
