Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THS10R10JRES CHAS MNT 0.1 OHM 5% 10W |
166 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 100 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS104R7JRES CHAS MNT 4.7 OHM 5% 10W |
160 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 4.7 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS105R0JRES CHAS MNT 5 OHM 5% 10W |
142 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 5 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS10500RJRES CHAS MNT 500 OHM 5% 10W |
142 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 500 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS1012RJRES CHAS MNT 12 OHM 5% 10W |
121 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 12 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS106K8JRES CHAS MNT 6.8K OHM 5% 10W |
114 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 6.8 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS101K0JRES CHAS MNT 1K OHM 5% 10W |
105 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 1 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
THS103R9JRES CHAS MNT 3.9 OHM 5% 10W |
102 |
|
Datasheet |
THS, CGS | Axial, Box | Tray | Active | 3.9 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
HSA52K5JRES CHAS MNT 2.5K OHM 5% 10W |
168 |
|
Datasheet |
HS, CGS | Axial, Box | Box | Active | 2.5 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA51K5JRES CHAS MNT 1.5K OHM 5% 10W |
164 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 1.5 kOhms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA5R05JRES CHAS MNT 0.05 OHM 5% 10W |
151 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 50 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA5620RJRES CHAS MNT 620 OHM 5% 10W |
149 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 620 Ohms | ±5% | 10W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA5R22JRES CHAS MNT 0.22 OHM 5% 10W |
300 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 220 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA5R18JRES CHAS MNT 0.18 OHM 5% 10W |
218 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 180 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA5R10JRES CHAS MNT 0.1 OHM 5% 10W |
180 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 100 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|

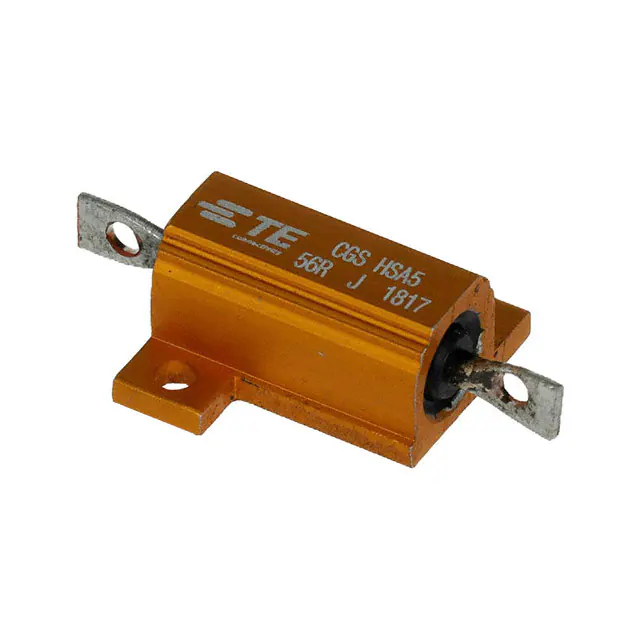

HSA556RJRES CHAS MNT 56 OHM 5% 10W |
127 |
|
Datasheet |
HS, CGS | Axial, Box | Box | Active | 56 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA5R47JRES CHAS MNT 0.47 OHM 5% 10W |
117 |
|
Datasheet |
HS, CGS | Axial, Box | Box | Active | 470 mOhms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA54R7JRES CHAS MNT 4.7 OHM 5% 10W |
112 |
|
Datasheet |
HS, CGS | Axial, Box | Box | Active | 4.7 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
|
HSA52R0JRES CHAS MNT 2 OHM 5% 10W |
202 |
|
Datasheet |
HS, CGS | Axial, Box | Box | Active | 2 Ohms | ±5% | 10W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.354" (9.00mm) | Solder Lugs | - | - | - |
|
SQBW401R5JFASTONRES CHAS MNT 1.5 OHM 5% 40W |
958 |
|
Datasheet |
SQ, CGS | Radial, Rectangular Case | Bulk | Active | 1.5 Ohms | ±5% | 40W | Wirewound | ±300ppm/°C | -55°C ~ 250°C | Cement Coated, Flame Proof, Moisture Resistant, Safety | Ceramic | Brackets | 3.543" L x 0.748" W (90.00mm x 19.00mm) | 0.787" (20.00mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
Chassis Mount Resistors Electronic Components
Frequently Asked Questions
Q1: What products are included in Chassis Mount Resistors?
This category includes related Chassis Mount Resistors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chassis Mount Resistors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chassis Mount Resistors and other electronic components.
