Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRQ125-8R2-RINDUCT ARRAY 2 COIL 8.048UH SMD |
1,591 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.048 µH | 32.19 µH | ±20% | 5.54 A | 2.77 A | 7.86 A | 3.93 A | 17.6mOhm | 70.5mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ125-4R7-RINDUCT ARRAY 2 COIL 5.274UH SMD |
729 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.274 µH | 21.1 µH | ±20% | 7.18 A | 3.59 A | 9.71 A | 4.86 A | 10.5mOhm | 42mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ125-150-RINDUCT ARRAY 2 COIL 15.35UH SMD |
502 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 15.35 µH | 61.4 µH | ±20% | 4.27 A | 2.13 A | 5.69 A | 2.85 A | 29.8mOhm | 120mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ125-101-RINDUCT ARRAY 2 COIL 102.7UH SMD |
256 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 102.7 µH | 410.8 µH | ±20% | 1.78 A | 892 mA | 2.2 A | 1.1 A | 170mOhm | 682mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PF0552.683NLINDUCT ARRAY 2 COIL 68UH SMD |
1,010 |
|
Datasheet |
PF0552NL | Nonstandard | Tray | Active | 2 | 68 µH | 270 µH | ±20% | 2.8 A | 1.4 A | 2.7 A | 1.4 A | 100mOhm Max | 400mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

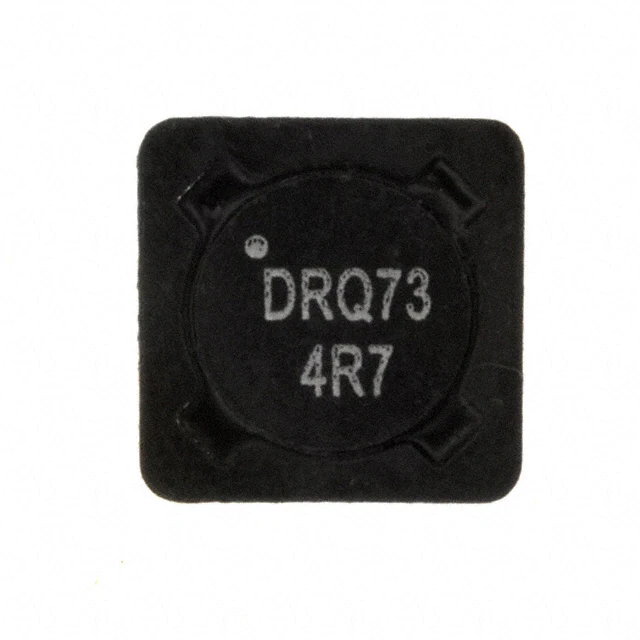

DRQ73-4R7-RINDUCT ARRAY 2 COIL 4.422UH SMD |
18,393 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.422 µH | 17.69 µH | ±20% | 3.09 A | 1.55 A | 3.78 A | 1.89 A | 29.7mOhm | 118.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF1260-2R2YINDUCT ARRAY 2 COIL 2.2UH SMD |
7,910 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±30% | 10.9 A | 5.46 A | 15 A | 7.5 A | 8.5mOhm Max | 33.3mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-471MINDUCT ARRAY 2 COIL 470UH SMD |
1,210 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 µH | 1.88 mH | ±20% | 870 mA | 434 mA | 1.02 A | 510 mA | 830mOhm Max | 3.197Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-102MINDUCT ARRAY 2 COIL 1MH SMD |
1,191 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 mH | 4 mH | ±20% | 570 mA | 283 mA | 700 mA | 350 mA | 1.854Ohm Max | 6.782Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-331MINDUCT ARRAY 2 COIL 330UH SMD |
1,065 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.32 mH | ±20% | 1.06 A | 530 mA | 1.22 A | 610 mA | 574mOhm Max | 2.29Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-681MINDUCT ARRAY 2 COIL 680UH SMD |
992 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 680 µH | 2.72 mH | ±20% | 700 mA | 350 mA | 850 mA | 425 mA | 1.212Ohm Max | 4.635Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-820MINDUCT ARRAY 2 COIL 82UH SMD |
783 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 82 µH | 328 µH | ±20% | 2.05 A | 1.03 A | 2.39 A | 1.2 A | 150mOhm Max | 568mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-221MINDUCT ARRAY 2 COIL 220UH SMD |
746 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 220 µH | 880 µH | ±20% | 1.19 A | 594 mA | 1.51 A | 755 mA | 354mOhm Max | 1.416Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-151MINDUCT ARRAY 2 COIL 150UH SMD |
515 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±20% | 1.48 A | 739 mA | 1.81 A | 905 mA | 254mOhm Max | 972mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRQ125-221-RINDUCT ARRAY 2 COIL 216.8UH SMD |
265 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 216.8 µH | 867.2 µH | ±20% | 1.19 A | 594 mA | 1.51 A | 755 mA | 384mOhm | 1.54Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SRF1260-680MINDUCT ARRAY 2 COIL 68UH SMD |
141 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2.22 A | 1.11 A | 2.7 A | 1.35 A | 117mOhm Max | 444mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-1R0YINDUCT ARRAY 2 COIL 1UH SMD |
334 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | 4 µH | ±30% | 15 A | 7.51 A | 23.6 A | 11.8 A | 6.2mOhm Max | 26mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRQ125-6R8-RINDUCT ARRAY 2 COIL 6.588UH SMD |
2,601 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.588 µH | 26.35 µH | ±20% | 6.64 A | 3.32 A | 8.68 A | 4.34 A | 12.3mOhm | 49.2mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRAQ127-150-RINDUCT ARRAY 2 COIL 14.9UH SMD |
649 |
|
Datasheet |
DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.9 µH | 59.6 µH | ±25% | 4.83 A | 2.41 A | 7.23 A | 3.61 A | 32mOhm Max | 128mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
|
DRAQ127-100-RINDUCT ARRAY 2 COIL 9.63UH SMD |
2,118 |
|
Datasheet |
DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.63 µH | 38.5 µH | ±25% | 6.02 A | 3.01 A | 8.96 A | 4.48 A | 22mOhm Max | 89mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
