Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448841100INDUCT ARRAY 2 COIL 10UH SMD |
7,768 |
|
Datasheet |
WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.2 A | - | 1.5 A | - | 300mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841470INDUCT ARRAY 2 COIL 47UH SMD |
1,584 |
|
Datasheet |
WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 600 mA | - | 700 mA | - | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
744870680INDUCT ARRAY 2 COIL 68UH SMD |
1,782 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 34 µH | 136 µH | ±20% | 1.35 A | 675 mA | 3 A | 1.5 A | 215mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
CTX33-1P-RINDUCT ARRAY 2 COIL 32.33UH SMD |
3,187 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.33 µH | 129.32 µH | ±20% | 800 mA | 400 mA | - | - | 250mOhm Max | 1.001Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
7448709220INDUCT ARRAY 2 COIL 22UH SMD |
423 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.5 A | 1.25 A | 5 A | 2.5 A | 80mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
CTX10-4P-RINDUCT ARRAY 2 COIL 9.88UH SMD |
5,108 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.88 µH | 39.53 µH | ±20% | 2.5 A | 1.25 A | - | - | 47mOhm Max | 187mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX10-3-RINDUCT ARRAY 2 COIL 9.6UH SMD |
13,643 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.6 µH | 38.4 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 111mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|

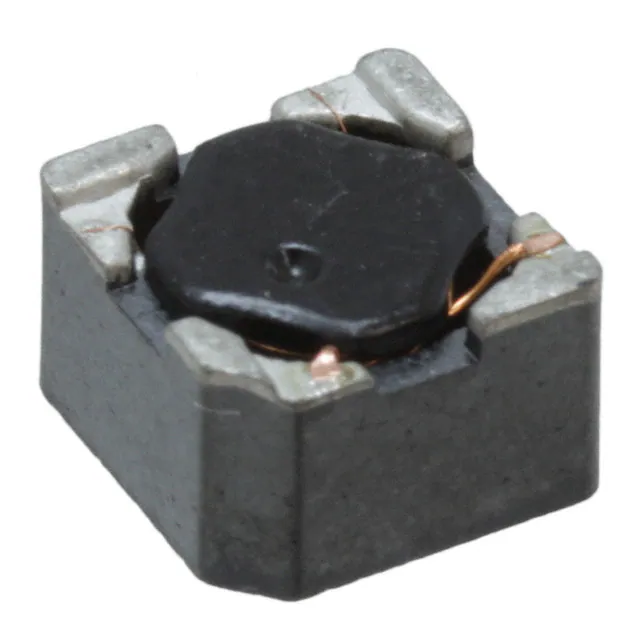

74488540250INDUCT ARRAY 2 COIL 25UH SMD |
1,558 |
|
Datasheet |
WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540070INDUCT ARRAY 2 COIL 7.5UH SMD |
364 |
|
Datasheet |
WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | 1.9 A | - | - | - | - | - | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540120INDUCT ARRAY 2 COIL 13UH SMD |
287 |
|
Datasheet |
WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|

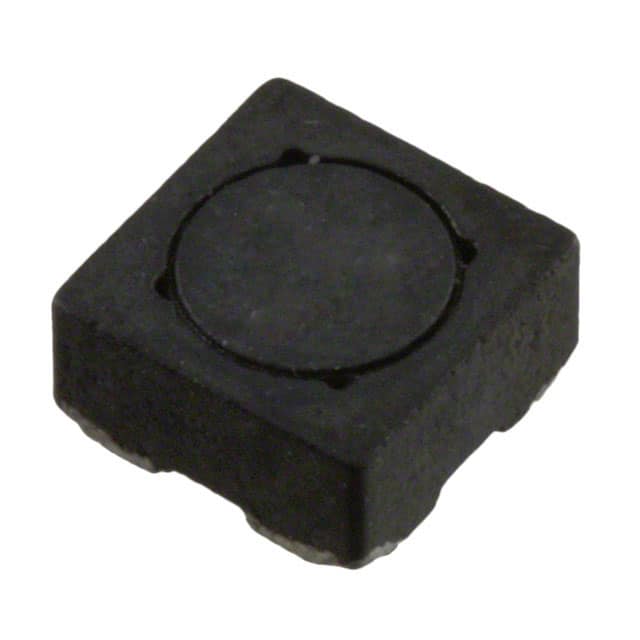

SDQ25-150-RINDUCT ARRAY 2 COIL 14.79UH SMD |
2,302 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.79 µH | 59.17 µH | ±20% | 1.24 A | 619 mA | 1.05 A | 523 mA | 163.2mOhm | 652.6mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX20-2P-RINDUCT ARRAY 2 COIL 19.58UH SMD |
917 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.58 µH | 78.34 µH | ±20% | 1.5 A | 750 mA | - | - | 97mOhm Max | 387mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
74485540101INDUCT ARRAY 2 COIL 10UH SMD |
782 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 13 A | - | 13.5 A | - | 13.9mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.492" (12.50mm) |
|
CTX20-4P-RINDUCT ARRAY 2 COIL 20.62UH SMD |
579 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.62 µH | 82.47 µH | ±20% | 1.9 A | 950 mA | - | - | 84mOhm Max | 337mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX50-3P-RINDUCT ARRAY 2 COIL 50.02UH SMD |
1,788 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.02 µH | 200.1 µH | ±20% | 920 mA | 460 mA | - | - | 277mOhm Max | 1.108Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX5-1-RINDUCT ARRAY 2 COIL 4.9UH SMD |
1,179 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.9 µH | 19.6 µH | ±20% | 2.3 A | 1.15 A | - | - | 30mOhm Max | 122mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
74485540220INDUCT ARRAY 2 COIL 2.2UH SMD |
3,499 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±20% | 18 A | 9 A | 35 A | 17.5 A | 6.72mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
CTX33-4A-RINDUCT ARRAY 2 COIL 34.8UH SMD |
2,492 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 34.8 µH | 139.2 µH | ±25% | 2.49 A | 1.25 A | 2.25 A | 1.13 A | 71mOhm Max | 283mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
74485540170INDUCT ARRAY 2 COIL 1.7UH SMD |
303 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 1.7 µH | 6.8 µH | ±20% | 21 A | 10.5 A | 39 A | 19.5 A | 5.28mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
74485540440INDUCT ARRAY 2 COIL 4.4UH SMD |
300 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 4.4 µH | 17.6 µH | ±20% | 12 A | 6 A | 24 A | 12 A | 15.36mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
