Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF1260-150MINDUCT ARRAY 2 COIL 15UH SMD |
3,002 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 4.27 A | 2.13 A | 5.69 A | 2.85 A | 32.9mOhm Max | 125mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-100MINDUCT ARRAY 2 COIL 10UH SMD |
2,454 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 5.35 A | 2.67 A | 7.17 A | 3.59 A | 24.6mOhm Max | 93.4mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRQ74-220-RINDUCT ARRAY 2 COIL 21.73UH SMD |
4,107 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 21.73 µH | 86.92 µH | ±20% | 1.75 A | 874 mA | 2.13 A | 1.07 A | 92.5mOhm | 371mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
DRQ125-330-RINDUCT ARRAY 2 COIL 33.74UH SMD |
3,839 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 33.74 µH | 135 µH | ±20% | 3.28 A | 1.64 A | 3.84 A | 1.92 A | 50.5mOhm | 203mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRF1260A-2R2YINDUCT ARRAY 2 COIL 2.2UH SMD |
1,667 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±30% | 10.9 A | 5.46 A | 15 A | 7.5 A | 8.5mOhm Max | 33.3mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
DRQ74-150-RINDUCT ARRAY 2 COIL 16.09UH SMD |
3,545 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.09 µH | 64.36 µH | ±20% | 2.11 A | 1.05 A | 2.48 A | 1.24 A | 63.7mOhm | 255mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
|
DRQ74-100-RINDUCT ARRAY 2 COIL 9.882UH SMD |
5,569 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.882 µH | 39.53 µH | ±20% | 2.41 A | 1.2 A | 3.17 A | 1.58 A | 48.9mOhm | 196mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|

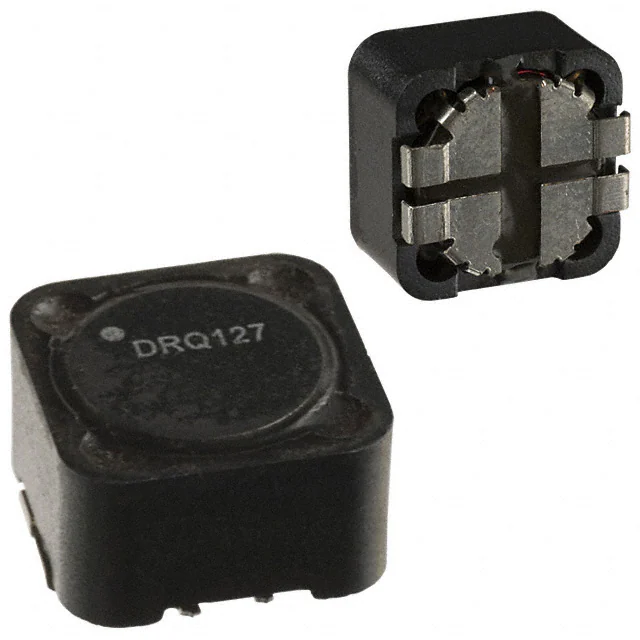

DRQ127-150-RINDUCT ARRAY 2 COIL 14.09UH SMD |
11,349 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.09 µH | 56.36 µH | ±20% | 5.03 A | 2.51 A | 9.66 A | 4.83 A | 24.7mOhm | 99mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
DRQ127-6R8-RINDUCT ARRAY 2 COIL 7.387UH SMD |
203 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 7.387 µH | 29.55 µH | ±20% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 11.6mOhm | 46.5mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
B82472D6223M000FIXED IND 22UH 1.65A 193 MOHM |
5,535 |
|
Datasheet |
B82472D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | - | 1.65 A | 2.55 A | 1.275 A | 96.5mOhm Max | 386mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
|
B82472D6472M000FIXED IND 4.7UH 3.3A 53 MOHM SMD |
2,264 |
|
Datasheet |
B82472D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±20% | - | 3.3 A | 5.45 A | 2.725 A | 26.5mOhm Max | 106mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
SRF1280-220MINDUCT ARRAY 2 COIL 22UH SMD |
5,402 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 4 A | 2 A | 7.57 A | 3.78 A | 50.3mOhm Max | 192mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-470MINDUCT ARRAY 2 COIL 47UH SMD |
3,671 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | 2.95 A | 1.47 A | 5.28 A | 2.64 A | 89.8mOhm Max | 353mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-680MINDUCT ARRAY 2 COIL 68UH SMD |
1,105 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2.44 A | 1.22 A | 4.44 A | 2.22 A | 123mOhm Max | 469mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-4R7YINDUCT ARRAY 2 COIL 4.7UH SMD |
4,064 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±30% | 8.25 A | 4.13 A | 16.5 A | 8.24 A | 13.5mOhm Max | 50mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

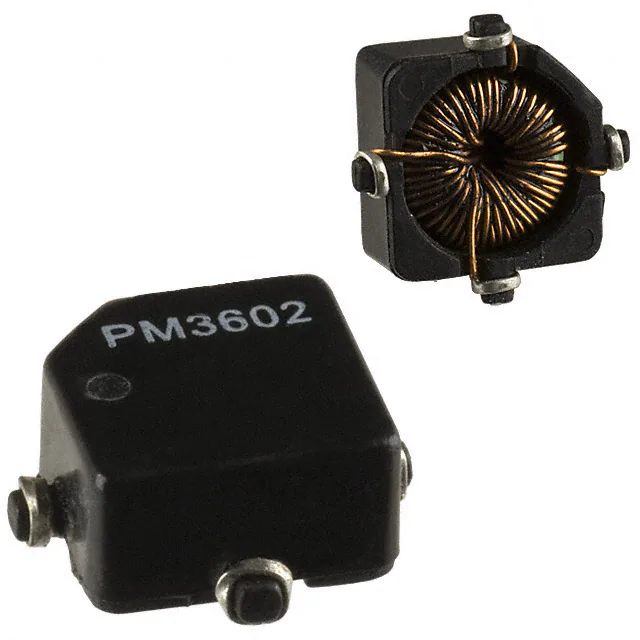

PM3602-300-RCINDUCT ARRAY 2 COIL 300UH SMD |
4,799 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 300 µH | 1.2 mH | ±20% | 320 mA | 160 mA | - | - | 1.31Ohm Max | 5.24Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
DRQ127-100-RINDUCT ARRAY 2 COIL 10.47UH SMD |
2,126 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 10.47 µH | 41.88 µH | ±20% | 6.04 A | 3.02 A | 11.2 A | 5.6 A | 17.2mOhm | 68.6mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ73-470-RINDUCT ARRAY 2 COIL 48.62UH SMD |
1,280 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 48.62 µH | 194.5 µH | ±20% | 1.08 A | 542 mA | 1.14 A | 570 mA | 241mOhm | 965mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
PM3604-20-RCINDUCT ARRAY 2 COIL 20UH SMD |
681 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 20 µH | 80 µH | ±20% | 2.02 A | 1.01 A | - | - | 49mOhm Max | 200mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
74489440100INDUCT ARRAY 2 COIL 10UH SMD |
1,245 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 1.35 A | 675 mA | 2.6 A | 1.3 A | 128mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
