Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3604-200-RCINDUCT ARRAY 2 COIL 200UH SMD |
3,910 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 200 µH | 800 µH | ±20% | 650 mA | 330 mA | - | - | 470mOhm Max | 1.88Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-50-RCINDUCT ARRAY 2 COIL 50UH SMD |
1,005 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 50 µH | 200 µH | ±20% | 1.28 A | 640 mA | - | - | 120mOhm Max | 480mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-33-RCINDUCT ARRAY 2 COIL 33UH SMD |
583 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 1.6 A | 800 mA | - | - | 78mOhm Max | 310mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
DRQ127-680-RINDUCT ARRAY 2 COIL 66.48UH SMD |
552 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 66.48 µH | 265.9 µH | ±20% | 2.44 A | 1.22 A | 4.44 A | 2.22 A | 105mOhm | 421mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PM3604-8-RCINDUCT ARRAY 2 COIL 8UH SMD |
396 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 8 µH | 32 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-150-RCINDUCT ARRAY 2 COIL 150UH SMD |
378 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±20% | 780 mA | 390 mA | - | - | 320mOhm Max | 1.28Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
74489440150INDUCT ARRAY 2 COIL 15UH SMD |
998 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 1.1 A | 550 mA | 2.2 A | 1.1 A | 185mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
74489440027INDUCT ARRAY 2 COIL 2.7UH SMD |
782 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.7 µH | 10.8 µH | ±30% | 2.5 A | 1.25 A | 5.1 A | 2.55 A | 40mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
74489440220INDUCT ARRAY 2 COIL 22UH SMD |
376 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 1 A | 500 mA | 1.8 A | 900 mA | 228mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
74489440018INDUCT ARRAY 2 COIL 1.8UH SMD |
350 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.8 µH | 7.2 µH | ±30% | 2.85 A | 1.425 A | 5.8 A | 2.9 A | 31mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
DRQ74-221-RINDUCT ARRAY 2 COIL 227UH SMD |
1,192 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 227 µH | 908 µH | ±20% | 560 mA | 279 mA | 660 mA | 330 mA | 907mOhm | 3.63Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
B82477D4683M900FIXED IND 68UH 1.89A 215 MOHM |
6,997 |
|
Datasheet |
B82477D4*M900 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | - | 1.89 A | 2.5 A | 1.25 A | 107.5mOhm Max | 430mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
76889440330INDUCTOR ARRAY 2 COIL 33UH SMD |
3,642 |
|
Datasheet |
WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | - | ±20% | 0.85 A | - | 1.85 A | - | 640mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|

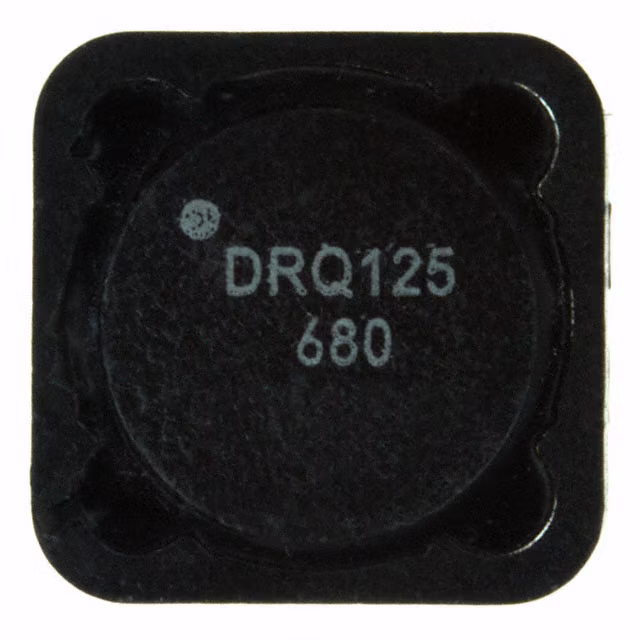

DRQ125-680-RINDUCT ARRAY 2 COIL 67.91UH SMD |
832 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.91 µH | 271.6 µH | ±20% | 2.22 A | 1.11 A | 2.7 A | 1.35 A | 101mOhm | 440mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRF1280A-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
3,026 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 18.3mOhm Max | 65.6mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-3R3YINDUCT ARRAY 2 COIL 3.3UH SMD |
2,274 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | 13.2 µH | ±30% | 10.4 A | 5.23 A | 21.5 A | 10.8 A | 11mOhm Max | 40mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-101MINDUCT ARRAY 2 COIL 100UH SMD |
2,273 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 400 µH | ±20% | 1.96 A | 980 mA | 3.64 A | 1.82 A | 175mOhm Max | 701mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-150MINDUCT ARRAY 2 COIL 15UH SMD |
1,958 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 5.03 A | 2.51 A | 9.66 A | 4.83 A | 33.3mOhm Max | 129mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-331MINDUCT ARRAY 2 COIL 330UH SMD |
1,325 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.32 mH | ±20% | 1.04 A | 522 mA | 2.01 A | 1.01 A | 540mOhm Max | 2.172Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-220MINDUCT ARRAY 2 COIL 22UH SMD |
1,313 |
|
Datasheet |
SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 4 A | 2 A | 7.57 A | 3.78 A | 50.3mOhm Max | 192mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
