Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448990100INDUCT ARRAY 2 COIL 10UH SMD |
273 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 4.5 A | - | 17 A | - | 69mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
CTX25-2P-RINDUCT ARRAY 2 COIL 24.79UH SMD |
853 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.79 µH | 99.14 µH | ±20% | 1.4 A | 700 mA | - | - | 109mOhm Max | 436mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX100-2P-RINDUCT ARRAY 2 COIL 99.14UH SMD |
1,962 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.14 µH | 396.58 µH | ±20% | 620 mA | 310 mA | - | - | 541mOhm Max | 2.162Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

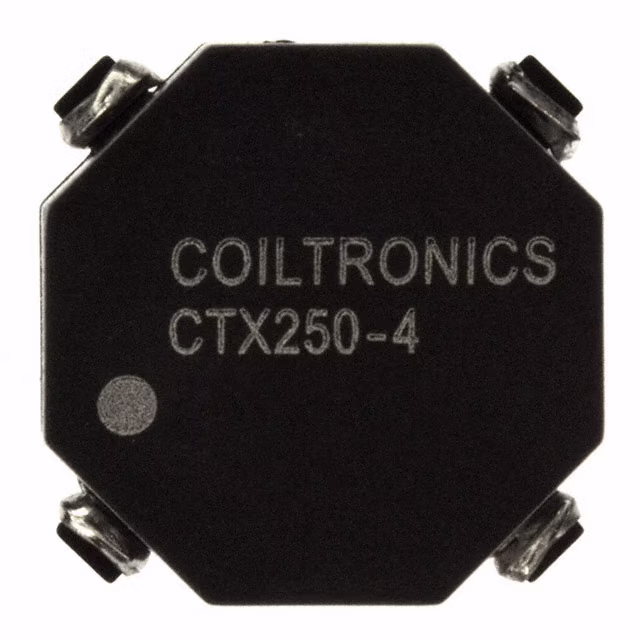

CTX250-4-RINDUCT ARRAY 2 COIL 250UH SMD |
1,503 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 250 µH | 1 mH | ±20% | 650 mA | 330 mA | - | - | - | - | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
74485540820INDUCT ARRAY 2 COIL 8.2UH SMD |
314 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 8.2 µH | - | ±20% | 13.5 A | - | 14 A | - | 13mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.492" (12.50mm) |
|
P0174NLINDUCT ARRAY 2 COIL 2.2UH SMD |
230 |
|
Datasheet |
Polecat | Nonstandard | Tube | Active | 2 | 2.2 µH | 8.75 µH | ±10% | 8.3 A | 4.16 A | - | - | 7.6mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTX100-1P-RINDUCT ARRAY 2 COIL 99.01UH SMD |
1,505 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.01 µH | 396.06 µH | ±20% | 540 mA | 270 mA | - | - | 557mOhm Max | 2.227Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
744851101INDUCT ARRAY 2 COIL 10UH SMD |
416 |
|
Datasheet |
WE-DCT | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±10% | 5.3 A | 2.65 A | 8 A | 4 A | 22mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.906" L x 0.728" W (23.00mm x 18.50mm) | 0.453" (11.50mm) |
|
|
744851039INDUCT ARRAY 2 COIL 390NH SMD |
349 |
|
Datasheet |
WE-DCT | Nonstandard | Tape & Reel (TR) | Active | 2 | 390 nH | 1.56 µH | ±20% | 10.6 A | 5.3 A | 50 A | 25 A | 6mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.906" L x 0.728" W (23.00mm x 18.50mm) | 0.453" (11.50mm) |
|
|
744851470INDUCT ARRAY 2 COIL 4.7UH SMD |
147 |
|
Datasheet |
WE-DCT | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±10% | 7.2 A | 3.6 A | 11 A | 5.5 A | 14mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.906" L x 0.728" W (23.00mm x 18.50mm) | 0.453" (11.50mm) |
|
74485540080INDUCT ARRAY 2 COIL 800NH SMD |
569 |
|
Datasheet |
WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 800 nH | 3.2 µH | ±20% | 28 A | 14 A | 62 A | 31 A | 2.56mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
P0181NLINDUCT ARRAY 2 COIL 47.6UH SMD |
537 |
|
Datasheet |
Polecat | Nonstandard | Tube | Active | 2 | 47.6 µH | 190.3 µH | ±10% | 1.8 A | 890 mA | - | - | 151mOhm Max | 604mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTX200-2P-RINDUCT ARRAY 2 COIL 201.59UH SMD |
2,780 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 201.59 µH | 806.34 µH | ±20% | 460 mA | 230 mA | - | - | 951mOhm Max | 3.804Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

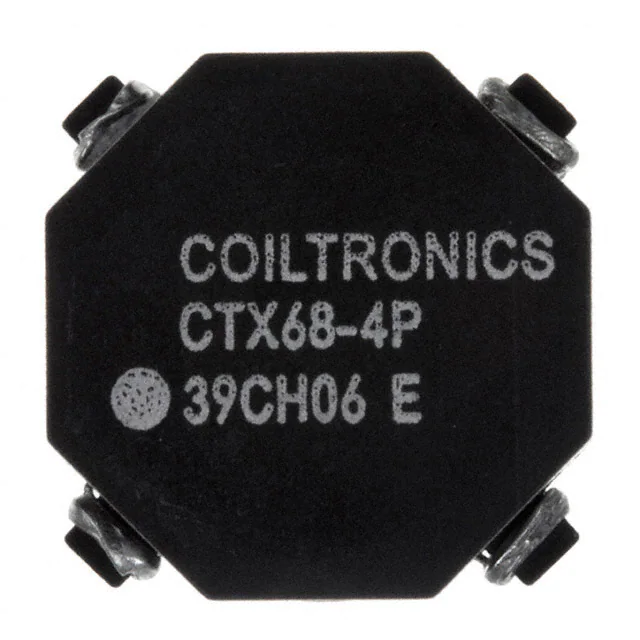

CTX68-4P-RINDUCT ARRAY 2 COIL 67.37UH SMD |
600 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.37 µH | 269.5 µH | ±20% | 1.1 A | 550 mA | - | - | 238mOhm Max | 952mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

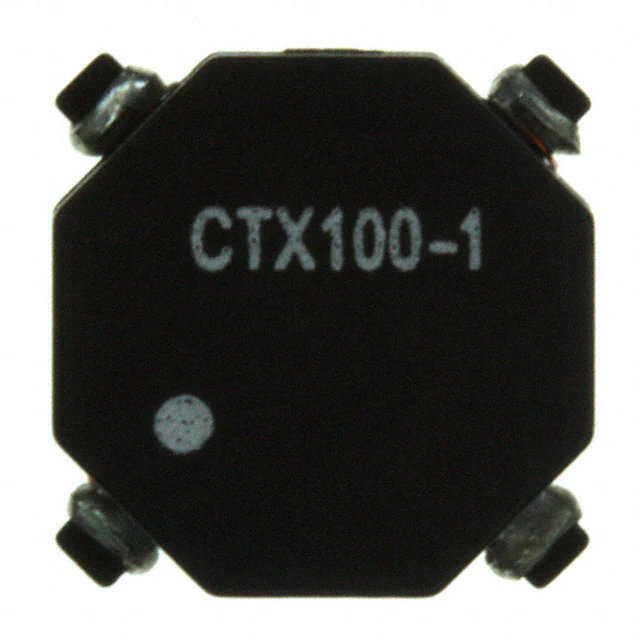

CTX100-1-RINDUCT ARRAY 2 COIL 99.23UH SMD |
1,362 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

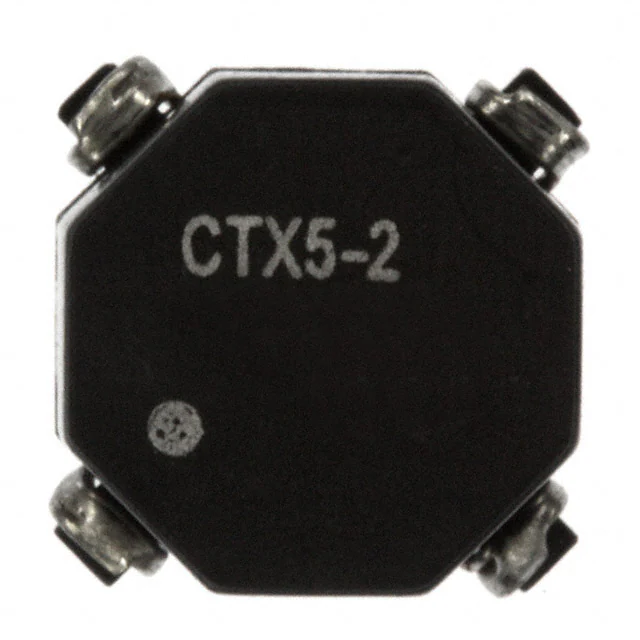

CTX5-2-RINDUCT ARRAY 2 COIL 4.7UH SMD |
565 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±20% | 3 A | 1.5 A | - | - | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

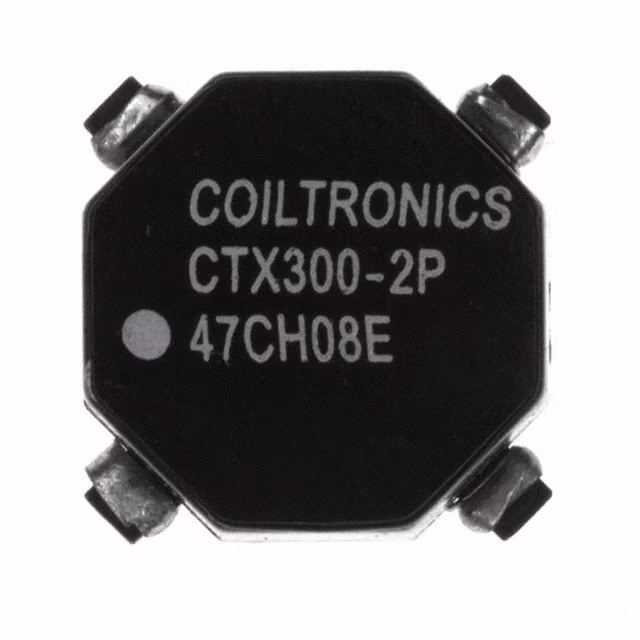

CTX300-2P-RINDUCT ARRAY 2 COIL 300.42UH SMD |
2,410 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 300.42 µH | 1.2 mH | ±20% | 420 mA | 210 mA | - | - | 1.176Ohm Max | 4.703Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX100-4A-RINDUCT ARRAY 2 COIL 100.57UH SMD |
900 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 100.57 µH | 402.3 µH | ±25% | 1.37 A | 690 mA | 1.32 A | 660 mA | 235mOhm Max | 939mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX20-4A-RINDUCT ARRAY 2 COIL 19.58UH SMD |
124 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.58 µH | 78.3 µH | ±25% | 3.62 A | 1.81 A | 3 A | 1.5 A | 34mOhm Max | 135mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX15-4A-RINDUCT ARRAY 2 COIL 14.7UH SMD |
894 |
|
Datasheet |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.7 µH | 58.81 µH | ±25% | 3.87 A | 1.94 A | 3.46 A | 1.73 A | 29mOhm Max | 117mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
