Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

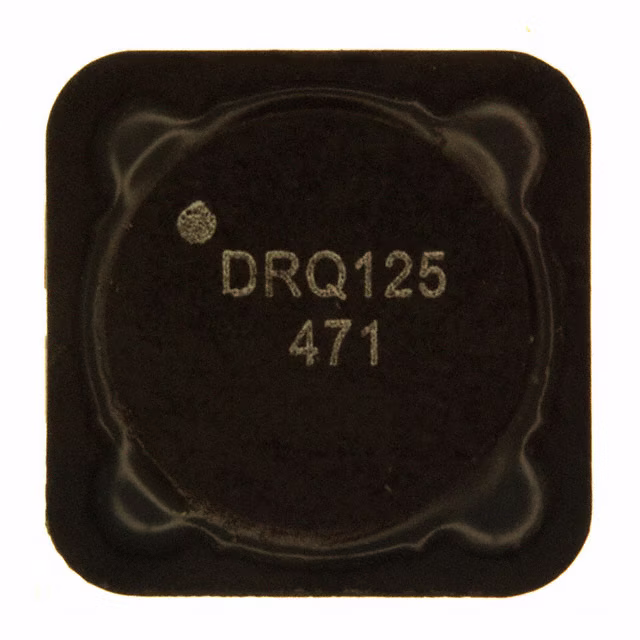

DRQ125-471-RINDUCT ARRAY 2 COIL 473.1UH SMD |
1,000 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 473.1 µH | 1.892 mH | ±20% | 870 mA | 434 mA | 1.02 A | 510 mA | 718mOhm | 2.87Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PF0553.223NLTINDUCT ARRAY 2 COIL 23UH SMD |
2,612 |
|
Datasheet |
PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 23 µH | 92 µH | ±20% | 3.9 A | 2 A | 7.6 A | 3.8 A | 39mOhm Max | 160mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ127-102-RINDUCT ARRAY 2 COIL 1.005MH SMD |
909 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.005 mH | 4.02 mH | ±20% | 610 mA | 307 mA | 1.14 A | 571 mA | 1.66Ohm | 6.64Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
74489430180INDUCT ARRAY 2 COIL 18UH SMD |
1,635 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 18 µH | 72 µH | ±20% | 800 mA | 400 mA | 1.2 A | 600 mA | 380mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
74489430010INDUCT ARRAY 2 COIL 1UH SMD |
550 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | 4 µH | ±30% | 2.85 A | 1.425 A | 5.1 A | 2.55 A | 28mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
74489430056INDUCT ARRAY 2 COIL 5.6UH SMD |
550 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.6 µH | 22.4 µH | ±30% | 1.45 A | 725 mA | 2.2 A | 1.1 A | 131mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
744894300068INDUCT ARRAY 2 COIL 680NH SMD |
550 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 680 nH | 2.72 µH | ±30% | 3.3 A | 1.65 A | 6.5 A | 3.25 A | 21mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
74489430120INDUCT ARRAY 2 COIL 12UH SMD |
540 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 12 µH | 48 µH | ±20% | 950 mA | 475 mA | 1.55 A | 775 mA | 227mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
|
744894300033INDUCT ARRAY 2 COIL 330NH SMD |
338 |
|
Datasheet |
WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 nH | 1.32 µH | ±30% | 4 A | 2 A | 9 A | 4.5 A | 15mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.083" (2.10mm) |
|
B82472D6682M000FIXED IND 6.8UH 2.75A 75 MOHM |
825 |
|
Datasheet |
B82472D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±20% | - | 2.75 A | 4.6 A | 2.3 A | 37.5mOhm Max | 150mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
|
B82472D6153M000FIXED IND 15UH 1.85A 158 MOHM |
630 |
|
Datasheet |
B82472D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | - | 1.85 A | 3 A | 1.5 A | 79mOhm Max | 316mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
SRF1280-330MINDUCT ARRAY 2 COIL 33UH SMD |
1,514 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 3.23 A | 1.61 A | 6.22 A | 3.11 A | 66.4mOhm Max | 265mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-R47YINDUCT ARRAY 2 COIL 470NH SMD |
1,458 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 nH | 1.88 µH | ±30% | 17.9 A | 8.94 A | 56 A | 28 A | 5.5mOhm Max | 21.6mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280-681MINDUCT ARRAY 2 COIL 680UH SMD |
700 |
|
Datasheet |
SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 680 µH | 2.72 mH | ±20% | 760 mA | 380 mA | 1.39 A | 697 mA | 1.296Ohm Max | 4.888Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ125-681-RINDUCT ARRAY 2 COIL 679.8UH SMD |
345 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 679.8 µH | 2.719 mH | ±20% | 700 mA | 350 mA | 850 mA | 425 mA | 1.1Ohm | 4.42Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PM3602-15-RCINDUCT ARRAY 2 COIL 15UH SMD |
740 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 1.45 A | 730 mA | - | - | 63mOhm Max | 250mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-200-RCINDUCT ARRAY 2 COIL 200UH SMD |
204 |
|
Datasheet |
PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 200 µH | 800 µH | ±20% | 400 mA | 200 mA | - | - | 840mOhm Max | 3.36Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
DRQ73-330-RINDUCT ARRAY 2 COIL 34.41UH SMD |
1,744 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 34.41 µH | 137.6 µH | ±20% | 1.31 A | 653 mA | 1.35 A | 680 mA | 166mOhm | 665mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRQ73-R33-RINDUCT ARRAY 2 COIL 306NH SMD |
1,288 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 306 nH | 1.224 µH | ±20% | 6.19 A | 3.1 A | 14.4 A | 7.18 A | 7.4mOhm | 29.6mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRQ74-4R7-RINDUCT ARRAY 2 COIL 5.182UH SMD |
1,298 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.182 µH | 20.73 µH | ±20% | 3.34 A | 1.67 A | 4.37 A | 2.19 A | 25.4mOhm | 102mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
