Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744870006INDUCT ARRAY 2 COIL 6.8UH SMD |
459 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.4 µH | 13.6 µH | ±20% | 3.2 A | 1.6 A | 8 A | 4 A | 35mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744870004INDUCT ARRAY 2 COIL 4.7UH SMD |
390 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.35 µH | 9.4 µH | ±20% | 3.6 A | 1.8 A | 8 A | 4 A | 30mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744870470INDUCT ARRAY 2 COIL 47UH SMD |
353 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 1.45 A | 725 mA | 3.1 A | 1.55 A | 150mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873220INDUCT ARRAY 2 COIL 22UH SMD |
267 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.79 A | 1.395 A | 5 A | 2.5 A | 70mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873470INDUCT ARRAY 2 COIL 47UH SMD |
257 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 2.02 A | 1.01 A | 3.1 A | 1.55 A | 120mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873330INDUCT ARRAY 2 COIL 33UH SMD |
246 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.5 µH | 66 µH | ±20% | 2.25 A | 1.125 A | 3.9 A | 1.95 A | 105mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873221INDUCT ARRAY 2 COIL 220UH SMD |
156 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 110 µH | 440 µH | ±20% | 910 mA | 455 mA | 1.6 A | 800 mA | 580mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82477D6473M603FIXED IND 47UH 2.83A 94MOHM SMD |
525 |
|
Datasheet |
B82477D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | - | 2.83 A | 4.7 A | 2.35 A | 47mOhm Max | 188mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
7448991068SMT MOLDED COUPLED INDUCTOR SIZE |
733 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | - | ±20% | 5 A | - | 12 A | - | 44mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
P0395NLINDUCT ARRAY 2 COIL 2.2UH SMD |
1,145 |
|
Datasheet |
Tomcat | Nonstandard | Tube | Active | 2 | 2.2 µH | 9 µH | ±20% | 14.4 A | 7.2 A | - | - | 4.41mOhm | 17.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
|
P0401NLINDUCT ARRAY 2 COIL 27.4UH SMD |
1,008 |
|
Datasheet |
Tomcat | Nonstandard | Tube | Active | 2 | 27.4 µH | 109.8 µH | ±20% | 4.4 A | 2.2 A | - | - | 38.15mOhm | 152.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
B82477C6473M603INDUCT ARRAY 2 COIL 47UH SMD |
449 |
|
Datasheet |
B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | - | 3.02 A | 4.8 A | 2.4 A | 42.5mOhm Max | 170mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
7448709330INDUCT ARRAY 2 COIL 33UH SMD |
569 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.5 µH | 66 µH | ±20% | 2 A | 1 A | 4.4 A | 2.2 A | 100mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
7448709470INDUCT ARRAY 2 COIL 47UH SMD |
212 |
|
Datasheet |
WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 1.9 A | 950 mA | 3.6 A | 1.8 A | 130mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
7448991220SMT MOLDED COUPLED INDUCTOR SIZE |
834 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 2.2 A | - | 6.1 A | - | 160mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|

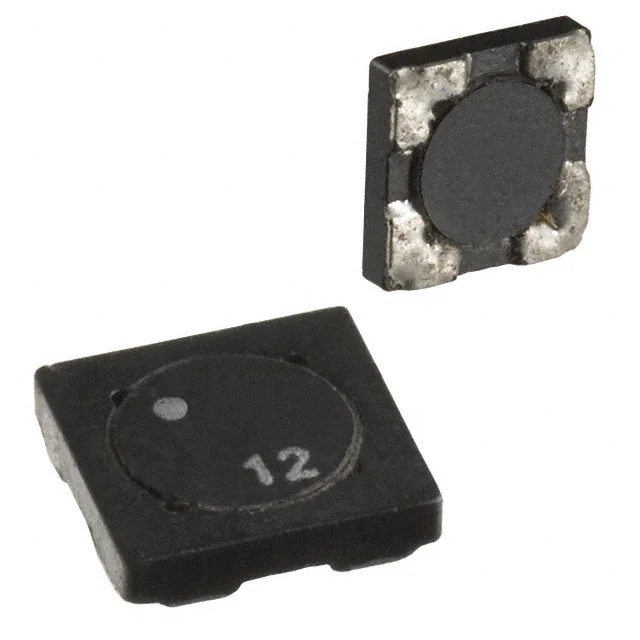

SDQ12-150-RINDUCT ARRAY 2 COIL 15.21UH SMD |
3,776 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 15.21 µH | 60.84 µH | ±20% | 658 mA | 329 mA | 779 mA | 390 mA | 576.6mOhm | 2.31Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
|
SDQ12-8R2-RINDUCT ARRAY 2 COIL 8.41UH SMD |
750 |
|
Datasheet |
SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.41 µH | 33.64 µH | ±20% | 868 mA | 434 mA | 1.05 A | 524 mA | 331.8mOhm | 1.33Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
CTX10-3P-RINDUCT ARRAY 2 COIL 9.79UH SMD |
3,200 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.79 µH | 39.15 µH | ±20% | 2.7 A | 1.35 A | - | - | 33mOhm Max | 131mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX10-1P-RINDUCT ARRAY 2 COIL 9.62UH SMD |
1,296 |
|
Datasheet |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.62 µH | 38.48 µH | ±20% | 1.7 A | 850 mA | - | - | 57mOhm Max | 227mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
7448990047INDUCT ARRAY 2 COIL 4.7UH SMD |
474 |
|
Datasheet |
WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | - | ±20% | 5.9 A | - | 24.2 A | - | 40mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
