Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

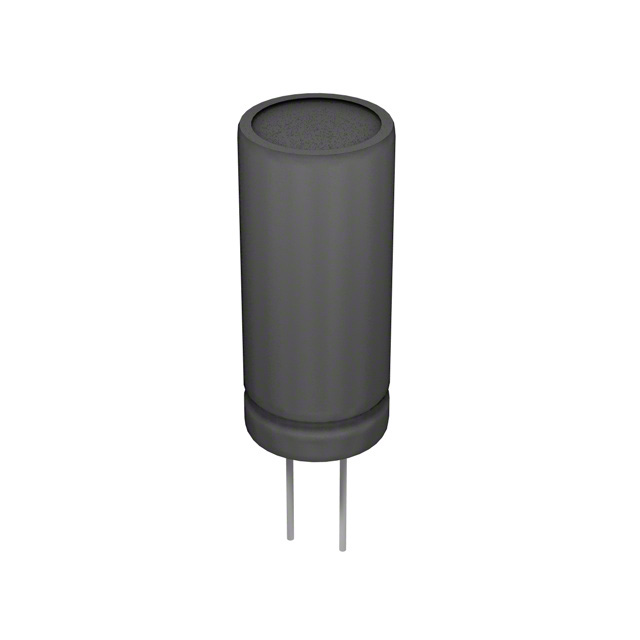

SXR472M016STCAP ALUM 4700UF 20% 16V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 4700 µF | ±20% | 16 V | 70mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|

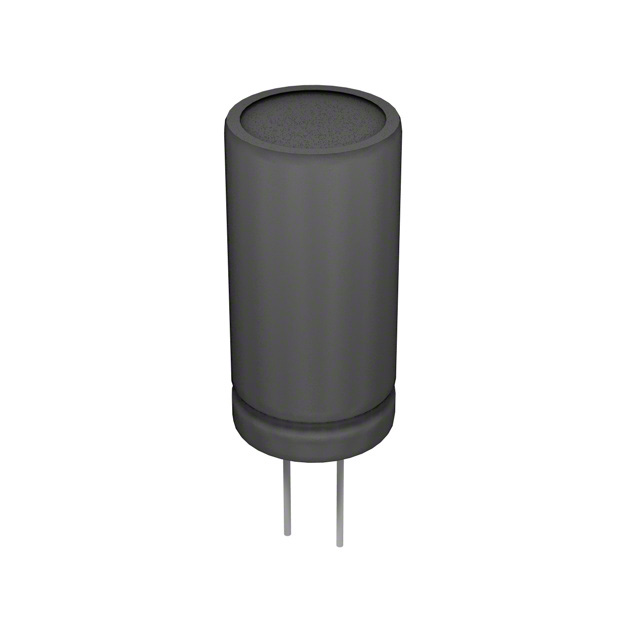

SXR472M025STCAP ALUM 4700UF 20% 25V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 4700 µF | ±20% | 25 V | 60mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 2.46 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

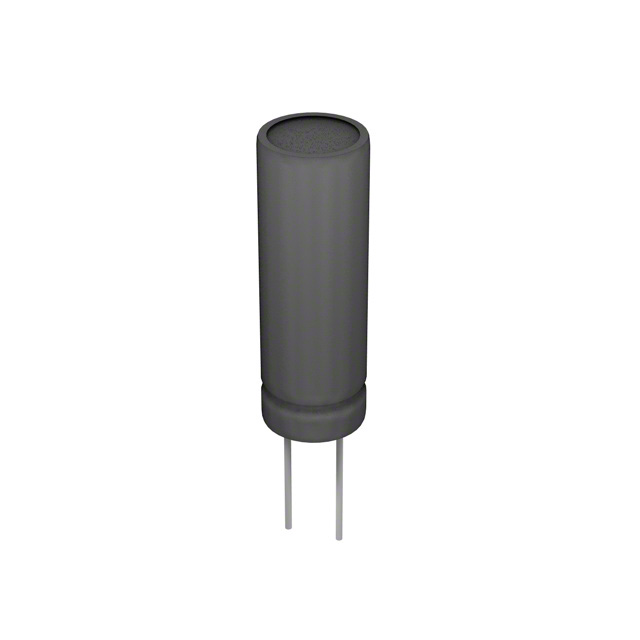

SXR472M6R3STCAP ALUM 4700UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 4700 µF | ±20% | 6.3 V | 80mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.062 A @ 120 Hz | 1.77 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

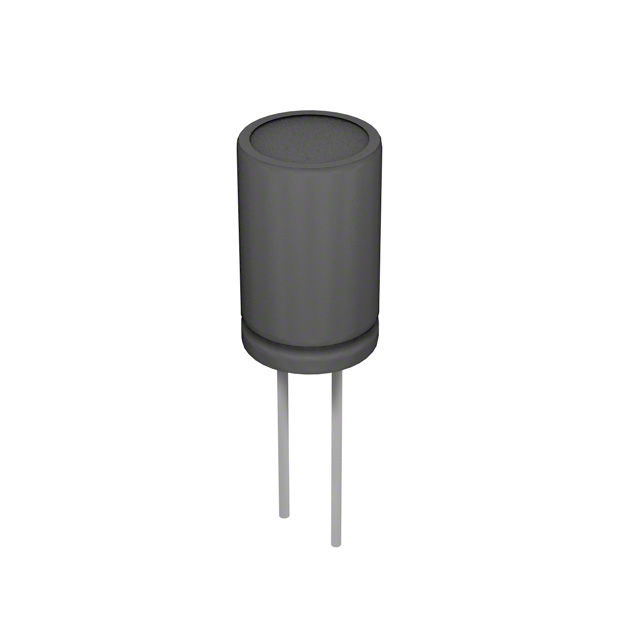

SXR680M063STCAP ALUM 68UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 68 µF | ±20% | 63 V | 1.56Ohm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
SXR680M100STCAP ALUM 68UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 68 µF | ±20% | 100 V | 1.37Ohm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 365.7 mA @ 120 Hz | 795 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SXR681M010STCAP ALUM 680UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 680 µF | ±20% | 10 V | 370mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|

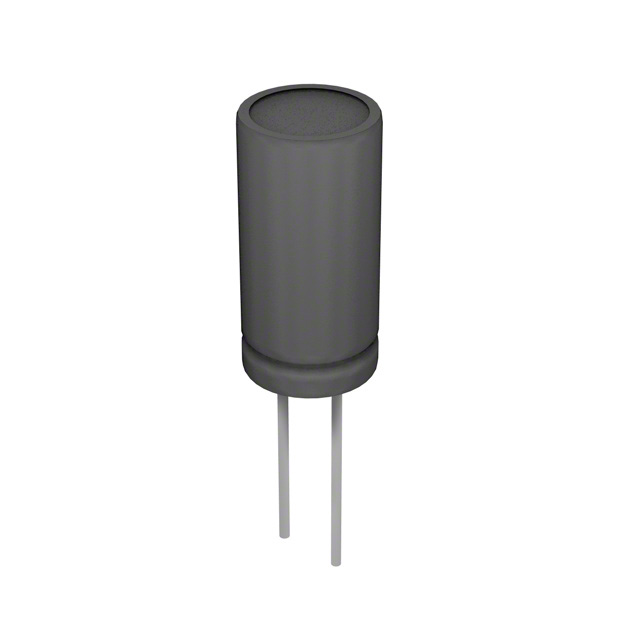

SXR681M016STCAP ALUM 680UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 680 µF | ±20% | 16 V | 310mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 516 mA @ 120 Hz | 860 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SXR681M025STCAP ALUM 680UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 680 µF | ±20% | 25 V | 270mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 575 mA @ 120 Hz | 1.15 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

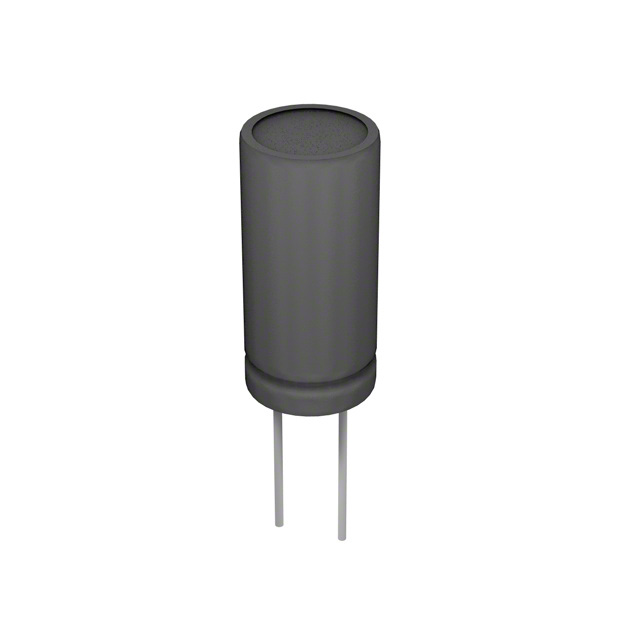

SXR681M035STCAP ALUM 680UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 680 µF | ±20% | 35 V | 230mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 660 mA @ 120 Hz | 1.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SXR681M050STCAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 680 µF | ±20% | 50 V | 200mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 814.2 mA @ 120 Hz | 1.77 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

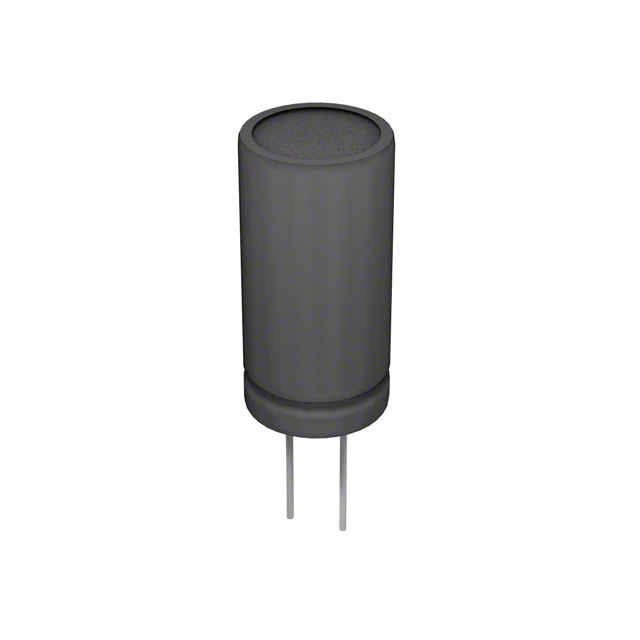

SXR681M063STCAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 680 µF | ±20% | 63 V | 160mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 823.4 mA @ 120 Hz | 1.79 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SXR681M6R3STCAP ALUM 680UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 680 µF | ±20% | 6.3 V | 430mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 381 mA @ 120 Hz | 635 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
SXR682M010STCAP ALUM 6800UF 20% 10V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 6800 µF | ±20% | 10 V | 60mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|
|
SXR682M016STCAP ALUM 6800UF 20% 16V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 6800 µF | ±20% | 16 V | 50mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 120 Hz | 2.24 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.417" (36.00mm) | - | Through Hole | |
|
|
SXR682M6R3STCAP ALUM 6800UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 6800 µF | ±20% | 6.3 V | 70mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.086 A @ 120 Hz | 1.81 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SXR821M010STCAP ALUM 820UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 820 µF | ±20% | 10 V | 310mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 516 mA @ 120 Hz | 860 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
SXR821M016STCAP ALUM 820UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 820 µF | ±20% | 16 V | 260mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 618 mA @ 120 Hz | 1.03 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SXR821M025STCAP ALUM 820UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 820 µF | ±20% | 25 V | 230mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 1.12 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

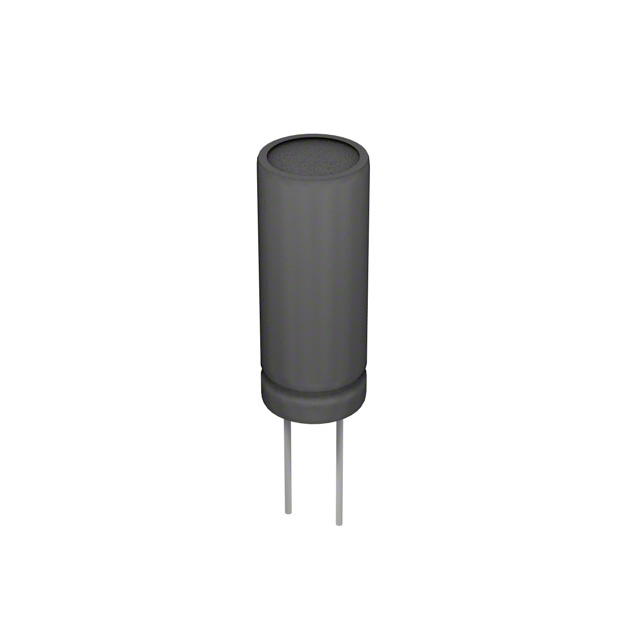

SXR821M035STCAP ALUM 820UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 820 µF | ±20% | 35 V | 190mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

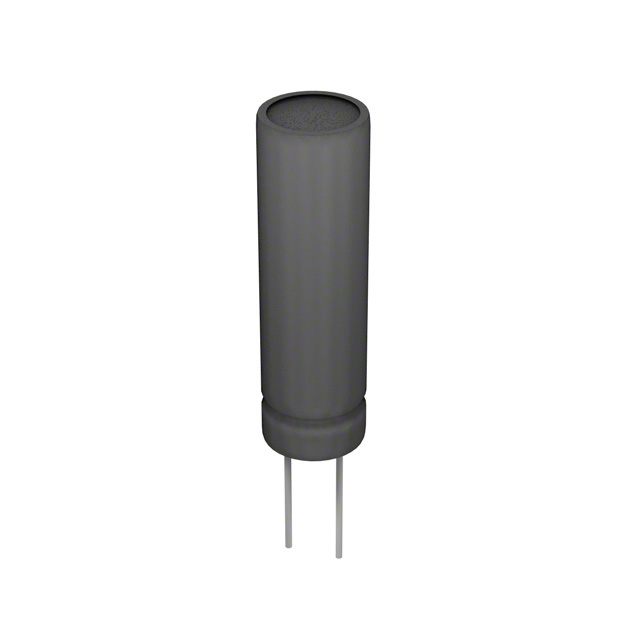

SXR821M050STCAP ALUM 820UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 820 µF | ±20% | 50 V | 160mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910.8 mA @ 120 Hz | 1.98 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.575" (40.00mm) | - | Through Hole |
