Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS470M6R3STCAP ALUM 47UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
SS | Bulk | Obsolete | 47 µF | ±20% | 6.3 V | 6.78Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 55 mA @ 1 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
SS4R7M025STCAP ALUM 4.7UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SS | Bulk | Obsolete | 4.7 µF | ±20% | 25 V | 42.35Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 26.4 mA @ 1 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
SS4R7M035STCAP ALUM 4.7UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SS | Bulk | Obsolete | 4.7 µF | ±20% | 35 V | 33.88Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 27.6 mA @ 1 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
SS4R7M050STCAP ALUM 4.7UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SS | Bulk | Obsolete | 4.7 µF | ±20% | 50 V | 28.23Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 33.35 mA @ 1 kHz | - | 0.079" (2.00mm) | 0.157" Dia (4.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
SS4R7M063STCAP ALUM 4.7UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SS | Bulk | Obsolete | 4.7 µF | ±20% | 63 V | 22.59Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 37.95 mA @ 1 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole | |
|

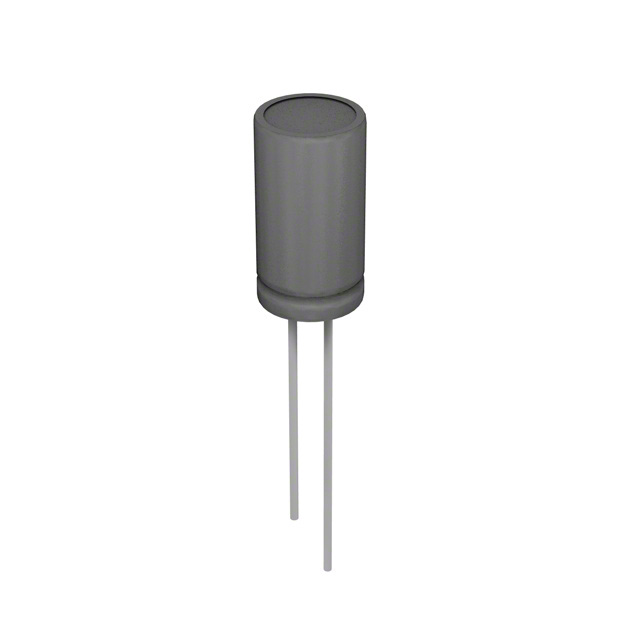

SXR101M010STCAP ALUM 100UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 100 µF | ±20% | 10 V | 2.52Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 108 mA @ 120 Hz | 180 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SXR101M016STCAP ALUM 100UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 100 µF | ±20% | 16 V | 2.12Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 138 mA @ 120 Hz | 230 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
SXR101M025STCAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 100 µF | ±20% | 25 V | 1.86Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
SXR101M063STCAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 100 µF | ±20% | 63 V | 1.06Ohm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 253 mA @ 120 Hz | 550 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
SXR102M010STCAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1000 µF | ±20% | 10 V | 250mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 582 mA @ 120 Hz | 970 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SXR102M016STCAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1000 µF | ±20% | 16 V | 210mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.15 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SXR102M025STCAP ALUM 1000UF 20% 25V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1000 µF | ±20% | 25 V | 190mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 660 mA @ 120 Hz | 1.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SXR102M035STCAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1000 µF | ±20% | 35 V | 160mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.54 A @ 100 kHz | - | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SXR102M050STCAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1000 µF | ±20% | 50 V | 130mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 832.6 mA @ 120 Hz | 1.81 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SXR102M6R3STCAP ALUM 1000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 1000 µF | ±20% | 6.3 V | 290mOhm @ 120Hz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 516 mA @ 120 Hz | 860 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SXR103M010STCAP ALUM 10000UF 20% 10V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 10000 µF | ±20% | 10 V | 50mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.46 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SXR103M6R3STCAP ALUM 10000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 10000 µF | ±20% | 6.3 V | 50mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.392 A @ 120 Hz | 2.32 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
SXR121M010STCAP ALUM 120UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 120 µF | ±20% | 10 V | 2.1Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 126 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SXR121M016STCAP ALUM 120UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 120 µF | ±20% | 16 V | 1.77Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 156 mA @ 120 Hz | 260 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SXR121M025STCAP ALUM 120UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SXR | Bulk | Obsolete | 120 µF | ±20% | 25 V | 1.55Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
